ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S53

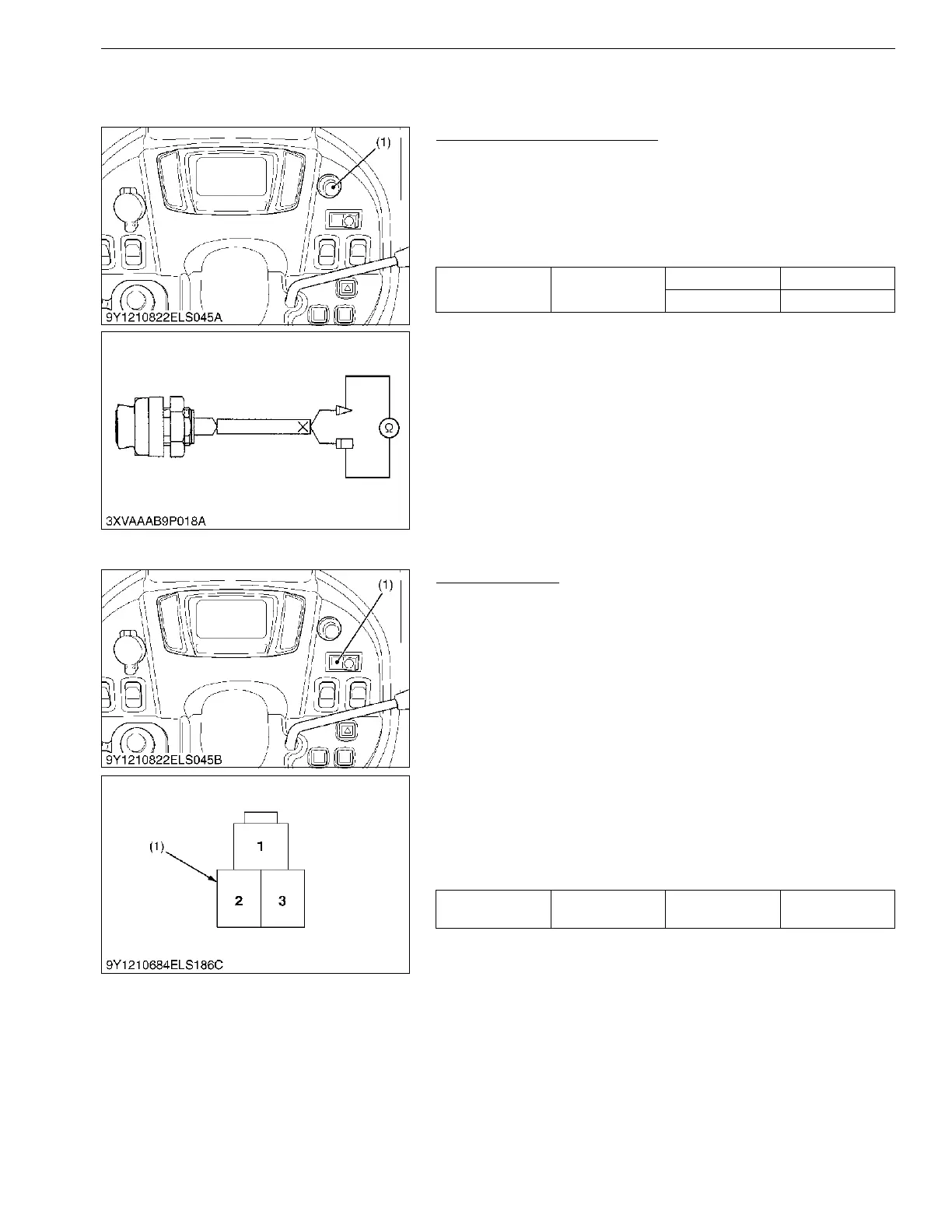

[10] OTHER SWITCHES
(1) Panel Mode Switch
Panel Mode Switch Continuity
1. Disconnect the wiring leads from panel mode switch and
remove it.
2. Measure the resistance with an ohmmeter across the panel
mode switch terminals in each position.
3. If the resistance differs from the factory specifications, the panel
mode switch is faulty.
9Y1210822ELS0079US0
(2) Defogger Switch
Defogger Switch
1. Remove the meter panel lower cover and disconnect the 3P
connector from defogger switch (1).
2. Remove the defogger switch (1).
3. Perform the following checking.
9Y1210822ELS0080US0
1) Connector Voltage
1. Turn the main key switch "ON" position.
2. Measure the voltage with a voltmeter across the terminals
shown in the table below.
3. If the reference value as shown in the table below is not
indicated, check the relating electric circuit.
9Y1210822ELS0081US0
Resistance
Factory specifica-
tion
OFF Infinity
ON 0 Ω
(1) Panel Mode Switch
(1) Defogger Switch
Voltage
Main switch at
"ON"
Terminal 1 –
Chassis
Approx. battery
voltage
(1) Connector (Harness Side)
