TRANSMISSION
B2650HSDC, B3350HSDC, WSM
2-S18

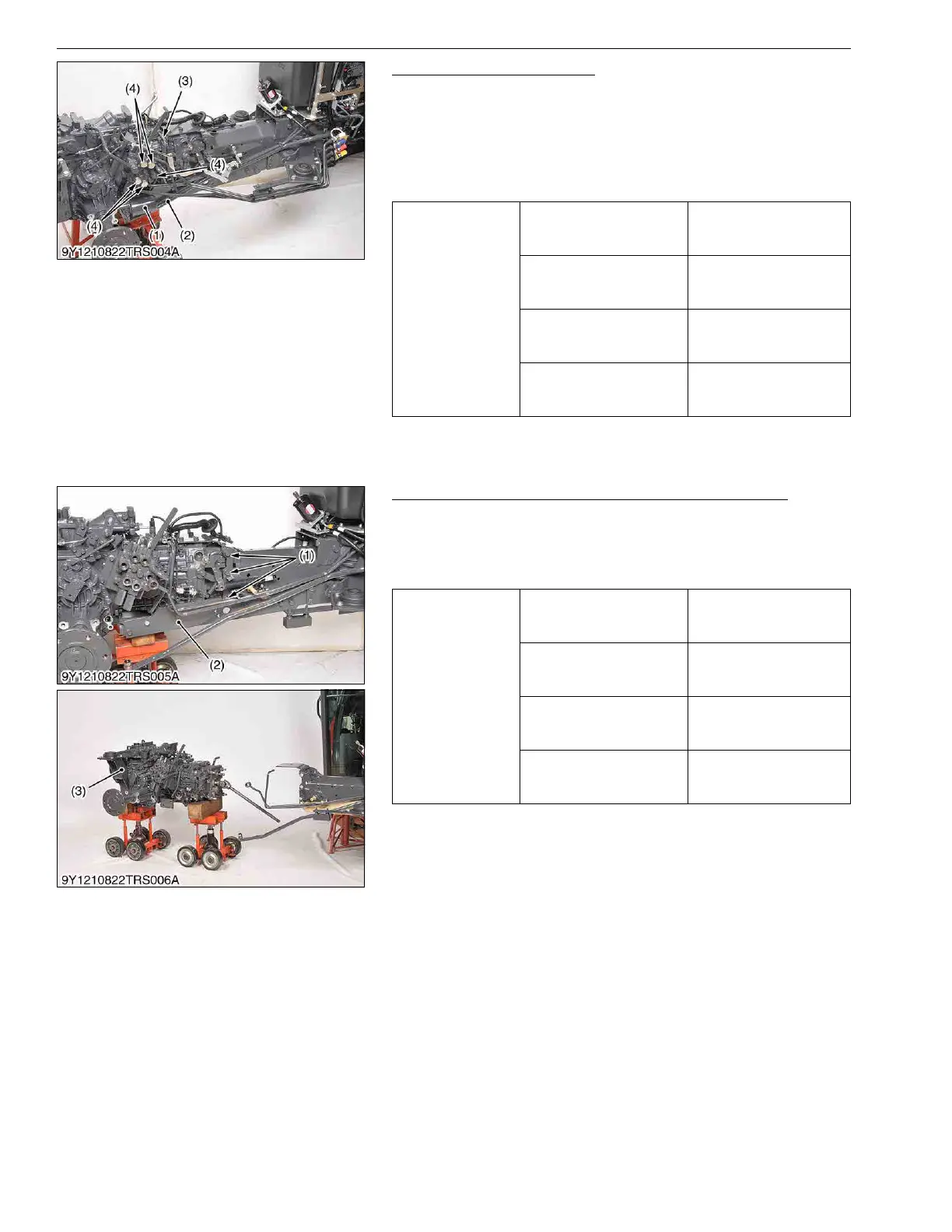

Hydraulic Pipes and Others
1. Remove the transmission oil filter cartridge (1).
2. Disconnect the suction pipe (2) and delivery pipe (3).
3. Disconnect the loader valve pipes (4).
(When reassembling)
• Do not damage the O-rings of front loader valve pipes and
delivery pipes.
9Y1210822TRS0010US0
Main Frame, Sub Frame and Cabin Mount Rear Frame
1. Remove the main frame bolts (1).
2. Remove the both side sub frames (2).
3. Remove the Cabin mount rear frame (3).
(When reassembling)
9Y1210822TRS0011US0
[3] DISASSEMBLING AND ASSEMBLING
(1) Separating Engine and Clutch Housing
• See page 1-S22.
9Y1210822TRS0012US0
Tightening torque
Front loader valve pipe joint
bolt
48 to 70 N·m
4.9 to 7.1 kgf·m
36 to 51 lbf·ft
3-point hitch delivery pipe 1
joint bolt
48 to 70 N·m
4.9 to 7.1 kgf·m
36 to 51 lbf·ft
3-point hitch delivery pipe 2
joint bolt (Front loader
valve side)
48 to 70 N·m
4.9 to 7.1 kgf·m
36 to 51 lbf·ft
3-point hitch delivery pipe 2
joint bolt (Hydraulic cylinder
case side)
50 to 60 N·m
5.1 to 6.1 kgf·m
37 to 44 lbf·ft
(1) Transmission Oil Filter Cartridge
(2) Suction Pipe
(3) Delivery Pipe
(4) Loader Valve Pipe
Tightening torque
Sub frame mounting bolt
(M12)
80 to 90 N·m
8.2 to 9.1 kgf·m
59 to 66 lbf·ft
Sub frame mounting bolt
(M14)
126 to 150 N·m
12.9 to 15.2 kgf·m
93.0 to 110 lbf·ft
Sub frame mounting bolt
(M10)
40 to 46 N·m
4.1 to 4.6 kgf·m
30 to 33 lbf·ft
Cabin mount rear frame
bolt
90 to 95 N·m
9.2 to 9.6 kgf·m
67 to 70 lbf·ft
(1) Bolt
(2) Sub Frame
(3) Cabin Mounting Rear Frame
KiSC issued 05, 2014 A
