TRANSMISSION
B2650HSDC, B3350HSDC, WSM
2-S19

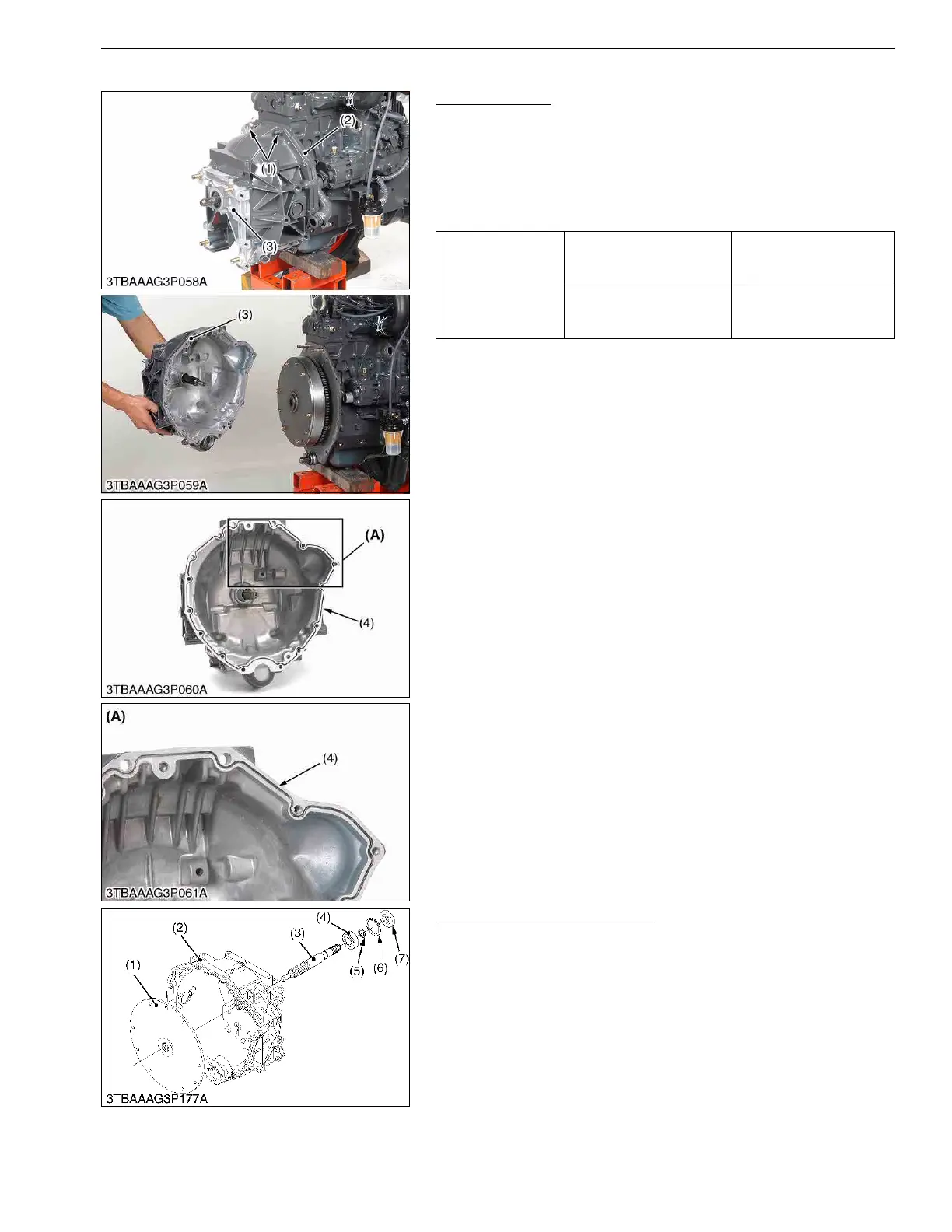

(2) Front Case
Clutch Housing
1. Support the engine securely.
2. Remove the front case mounting bolts (1).
3. Remove the front case (3) from the engine.
(When reassembling)
• Apply liquid gasket (Three Bond 1206D or equivalent) to the
joint face of the engine and the front case.
9Y1210822TRS0013US0
Clutch Shaft and Ball Bearing
1. Remove the oil seal (7).
2. Remove the circlip (5), (6).
3. Remove the clutch shaft (3) from the front case (2).
9Y1210822TRS0014US0
Tightening torque
Front case mounting nut for
aluminum material (M8)
17.7 to 20.5 N·m
1.8 to 2.1 kgf·m
13.1 to 15.1 lbf·ft
Front case mounting bolt
for aluminum material
(M10)
39.3 to 44.1 N·m
4.0 to 4.5 kgf·m
29.0 to 32.5 lbf·ft
(1) Bolt
(2) Engine Rear-End Plate
(3) Front Case
(4) Groove (for liquid gasket)
A : Front Case Corner
(1) Steal Plate
(2) Front Case
(3) Clutch Shaft
(4) Ball Bearing
(5) External Circlip
(6) Internal Circlip
(7) Oil Seal
