GENERAL
B2650HSDC, B3350HSDC, WSM
G-21
[3] CHECK POINTS OF EVERY 50 HOURS
Checking Engine Start System
To avoid personal injury:
• Do not allow anyone near the tractor while testing.
• If the tractor does not pass the test do not operate the
tractor.
Preparation before testing.
1. Sit on operator's seat.
2. Set the parking brake and stop the engine.
3. Shift the range gear shift lever to "NEUTRAL" position.
4. Place the speed control pedal in "NEUTRAL" position.
5. Shift the PTO clutch lever to "OFF" position.
Test : Switch for the speed control pedal.
1. Depress the speed control pedal.
2. Turn the key to "START" position.
3. The engine must not crank.
4. If it cranks, check or replace the speed control pedal switch.
Test : Switch for the PTO clutch lever
1. Place the speed control pedal in "NEUTRAL" position.
2. Shift the PTO clutch lever to "ON" position.
3. Turn the key to "START" position.
4. The engine must not crank.
5. If it cranks, check or replace the PTO clutch lever switch.
Test : Switches for the operator's seat and the PTO clutch
lever.
1. Sit on the operator's seat.
2. Start the engine.
3. Engage the PTO clutch lever.
4. Stand up. (Do not get off the machine.)
5. The engine must shut off after approximately 1 second.
6. If it does not stop, check or replace the operator's seat switch
and PTO clutch lever switch.
9Y1210822GEG0025US0

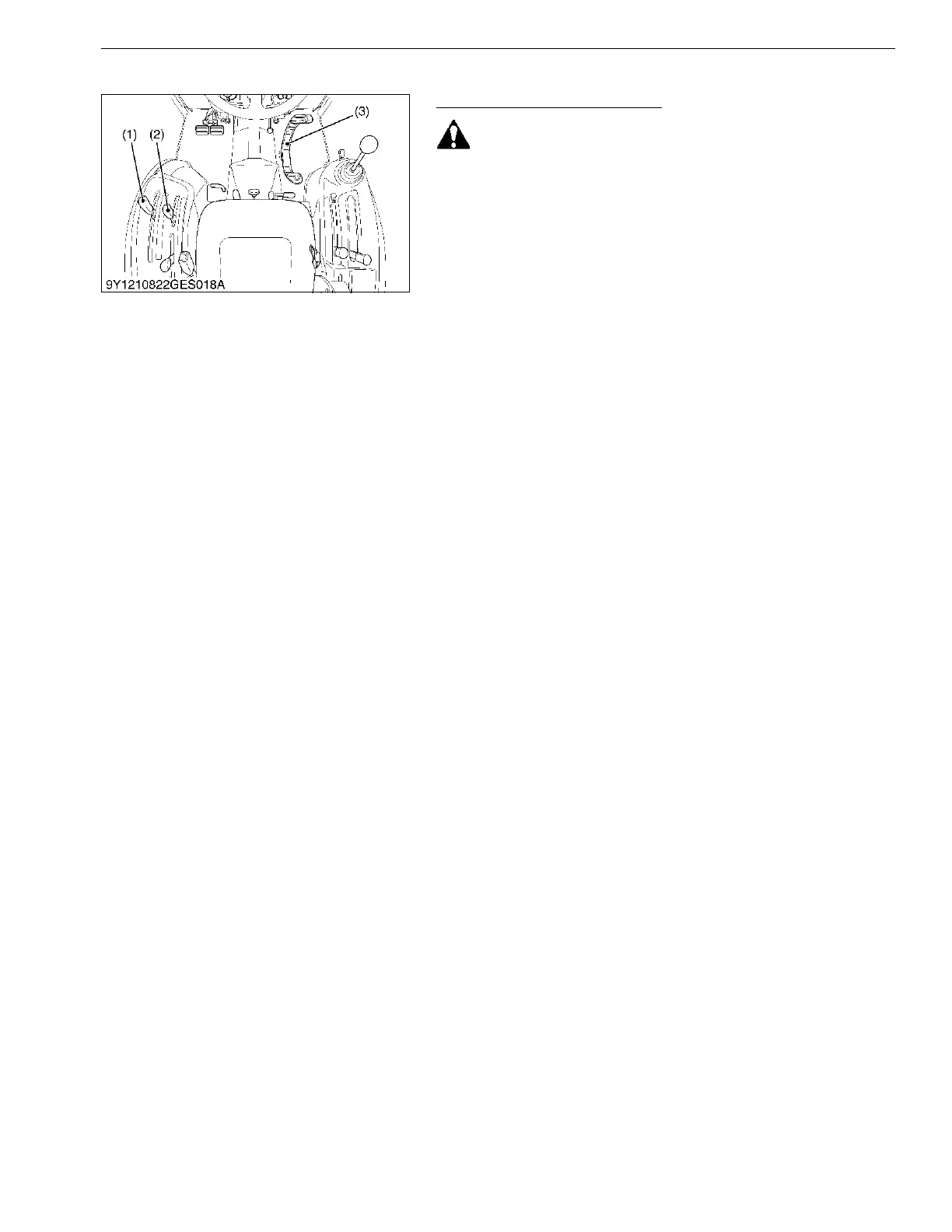

(1) Range Gear Shift Lever (L-M-H)
(2) PTO Clutch Lever
(3) Speed Control Pedal
To Next Page
