ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S26

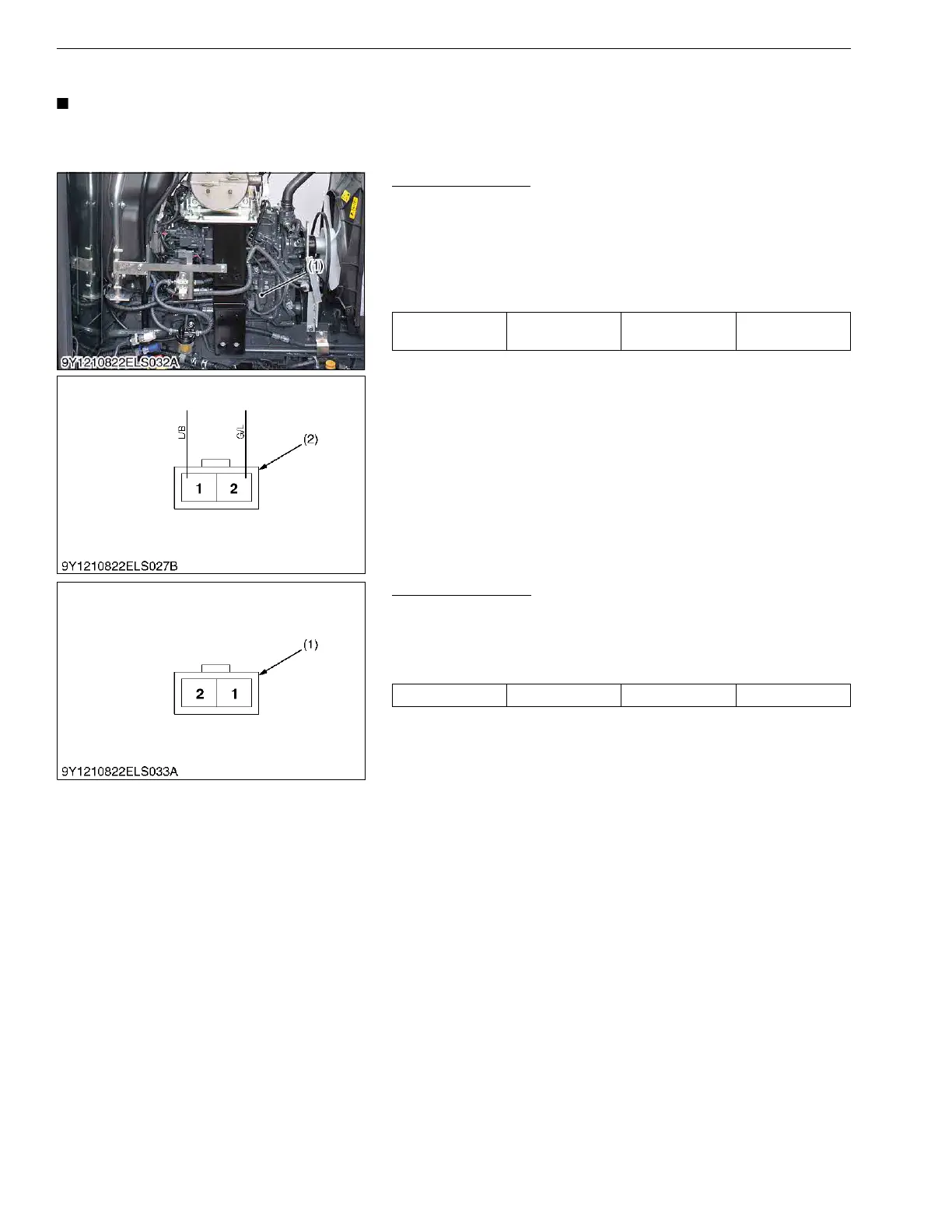

(2) Fuel Pump (for Reformer)
• Firstly check the connector voltage, secondly check the other wires continuity, then finally check the
pump resistance.
9Y1210822ELS0066US0
Connector Voltage
1. Disconnect the connector, and turn the main key switch "ON"
position.
2. Measure the voltage with a voltmeter across the terminals
shown in the table below.
3. If the reference value is not indicated as shown in the table
below, check the relating electric circuit.
9Y1210822ELS0069US0
Sensor Resistance
1. Measure the resistance with an ohmmeter across the terminals
shown in the table below.
2. If the reference value is not indicated, the fuel pump (for
reformer) is faulty.
9Y1210822ELS0070US0
Voltage
Main switch at
"ON"
Terminal 2 –
chassis
Approx. battery
voltage
(1) Fuel Pump (2) Connector (Harness Side)
Resistance at 20 °C (68 °F) Terminal 1 – 2 Approx. 2.5 Ω
(1) Connector (Sensor Side)
To Next Page
