GENERAL
B2650HSDC, B3350HSDC, WSM
G-57

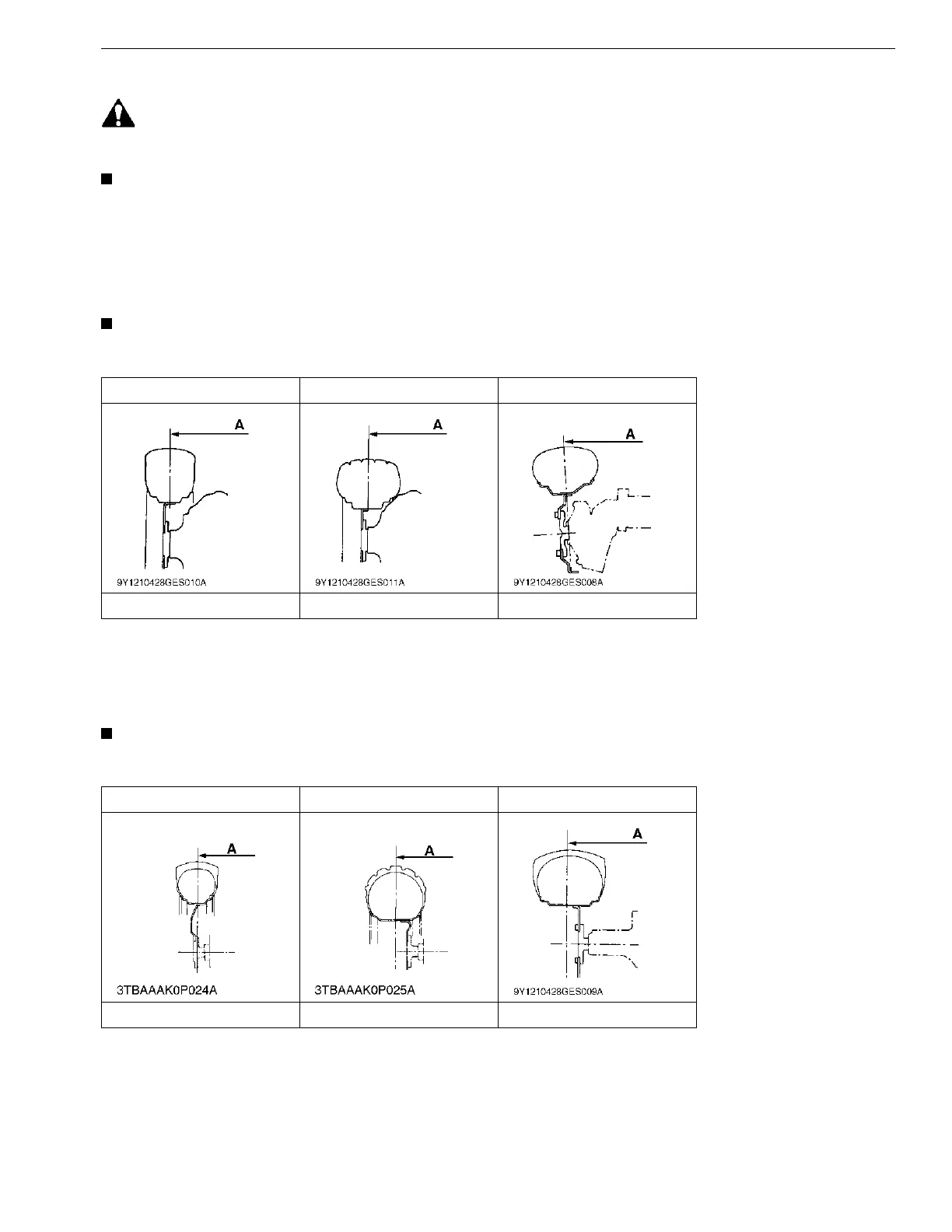

[2] TREAD ADJUSTMENT
• Support tractor securely on stands before removing a wheel.
• Never operate tractor with a loose rim, wheel or axle.
• Always attach tires as shown in the figure.
• If not attached as the figure, transmission parts may be damaged.
• Do not use tires larger than specified.
9Y1210822GEG0083US0
(1) Front Wheels
Front wheel can not be adjusted.
• Do not turn front discs to obtain wider tread. In setting up the front wheels, make sure that the inflation
valve stem of the tires face outward.
9Y1210822GEG0084US0
(2) Rear Wheels
Rear tread width can not be adjusted.
• Always attach tires as shown in the drawings.
• If not attached as illustrated, transmission parts may be damaged.
9Y1210822GEG0085US0
7-12 Farm 24 × 8.50-14 Turf 23 × 8.50-14 Ind.
935 mm (36.8 in.) 930 mm (36.6 in.) 905 mm (35.6 in.)
A: Tread
12.4-16 Farm 13.6-16 Turf 12.4-16 Ind.
1050 mm (41.3 in.) 1050 mm (41.3 in.) 1050 mm (41.3 in.)
A: Tread
