ELECTRICAL SYSTEM
B2650HSDC, B3350HSDC, WSM
8-S48

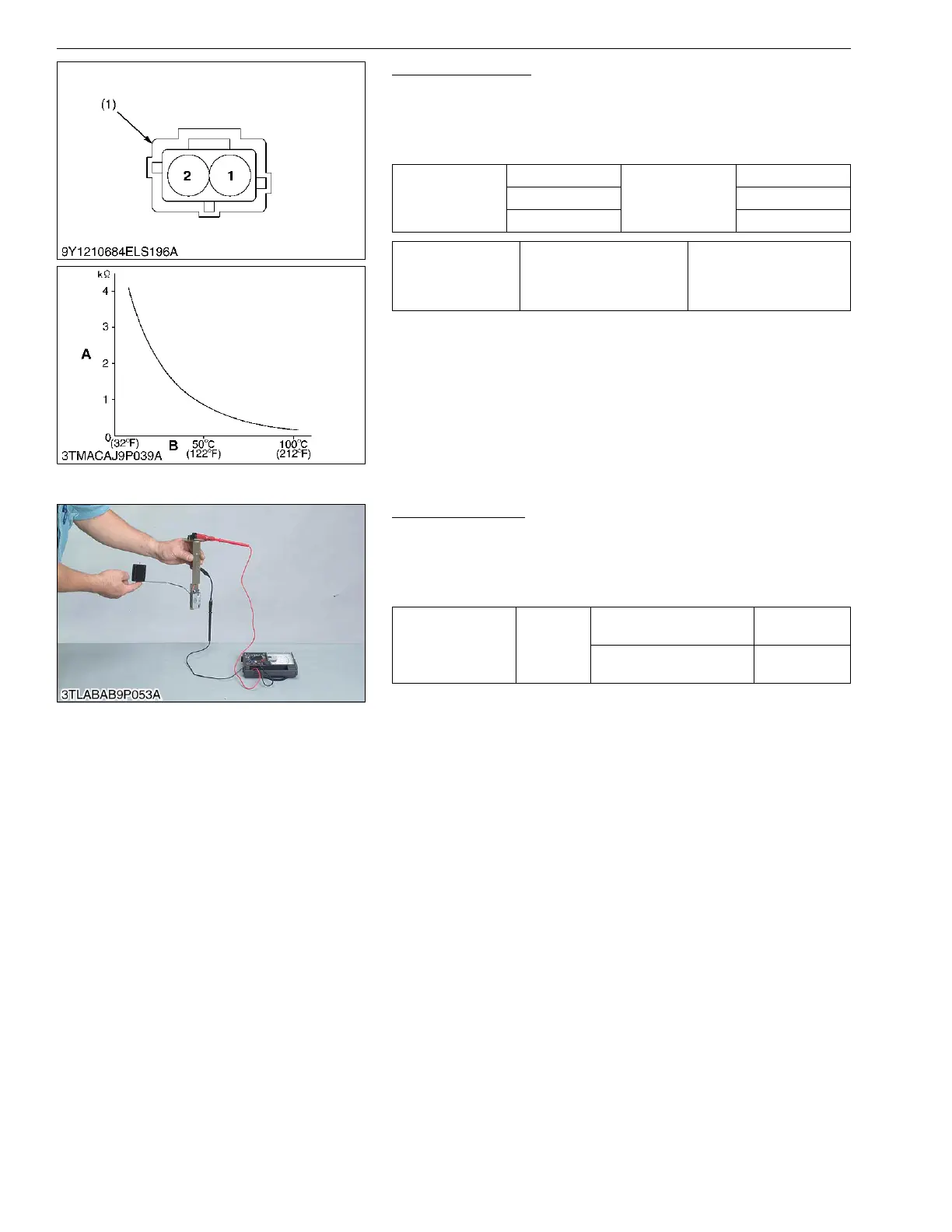

Sensor Resistance
1. Measure the resistance with an ohmmeter across the terminals
shown in the table below.
2. If the reference value is not indicated, the intake air temperature
sensor is faulty.
9Y1210822ELS0060US0
(3) Fuel Sensor
Fuel Level Sensor
1) Sensor Continuity
1. Remove the fuel lever sensor from the fuel tank.
2. Measure the resistance across the sensor terminal and its body.
3. If the reference value are not indicated, the sensor is faulty.
9Y1210822ELS0063US0
Resistance
at −20 °C (−4 °F)
Terminal 1 – 2
Approx. 15.0 kΩ
at 20 °C (68 °F) Approx. 2.45 kΩ
at 80 °C (176 °F) Approx. 0.318 kΩ
Tightening torque
Coolant temperature
sensor
Less than
19.6 N·m
2.00 kgf·m
14.5 lbf·ft
(1) Connector (Sensor Side) A: Resistance
B: Temperature
Resistance
(Sensor terminal –
its body)
Reference
value
Float at upper-most
position
1 to 5 Ω
Float at lower-most
position
103 to 117 Ω
