Entering properties
You enter the properties of the batches in the following dialog. Use the "Help" button to get
context-sensitive instructions for each specific input/output field on the tab.
9.6.2.7 Setting the start mode of the batch processing
Procedure in BatchCC:
1. In the "Orders" folder in BatchCC select the object "Batch" below the production order.
2. Select the menu item Edit > Properties.

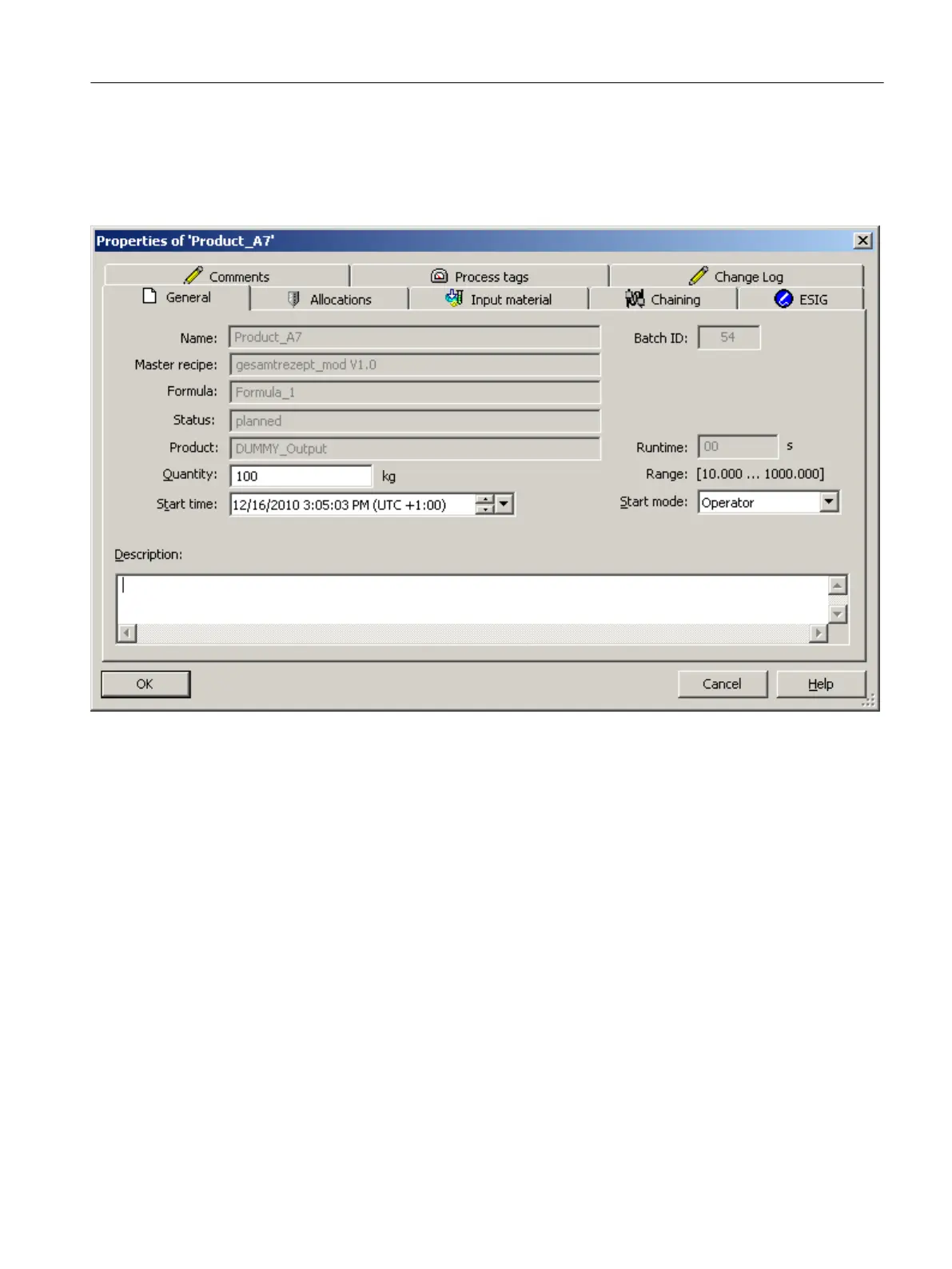

Result: The dialog "Properties of <batch name>" is displayed.
3. In the "Start mode" input field, select "Operator", "Immediate" or "Time-driven".
4. You must also set a start time and date.
5. Confirm with "OK".
BATCH Control Center
9.6 Batch Planning
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 357
