Before the recipe unit procedure is released, the extended equipment phase is released but
not completed.
To ensure that these steps are no longer controlled by the completed batch, the steps are
identified as follows:
● "Completed" status with dark green
● "Continue" status with two arrows as circle
If a recipe operation contains a recipe phase with the "Continue" label, the "Continue" symbol
is also displayed in the active ROP.

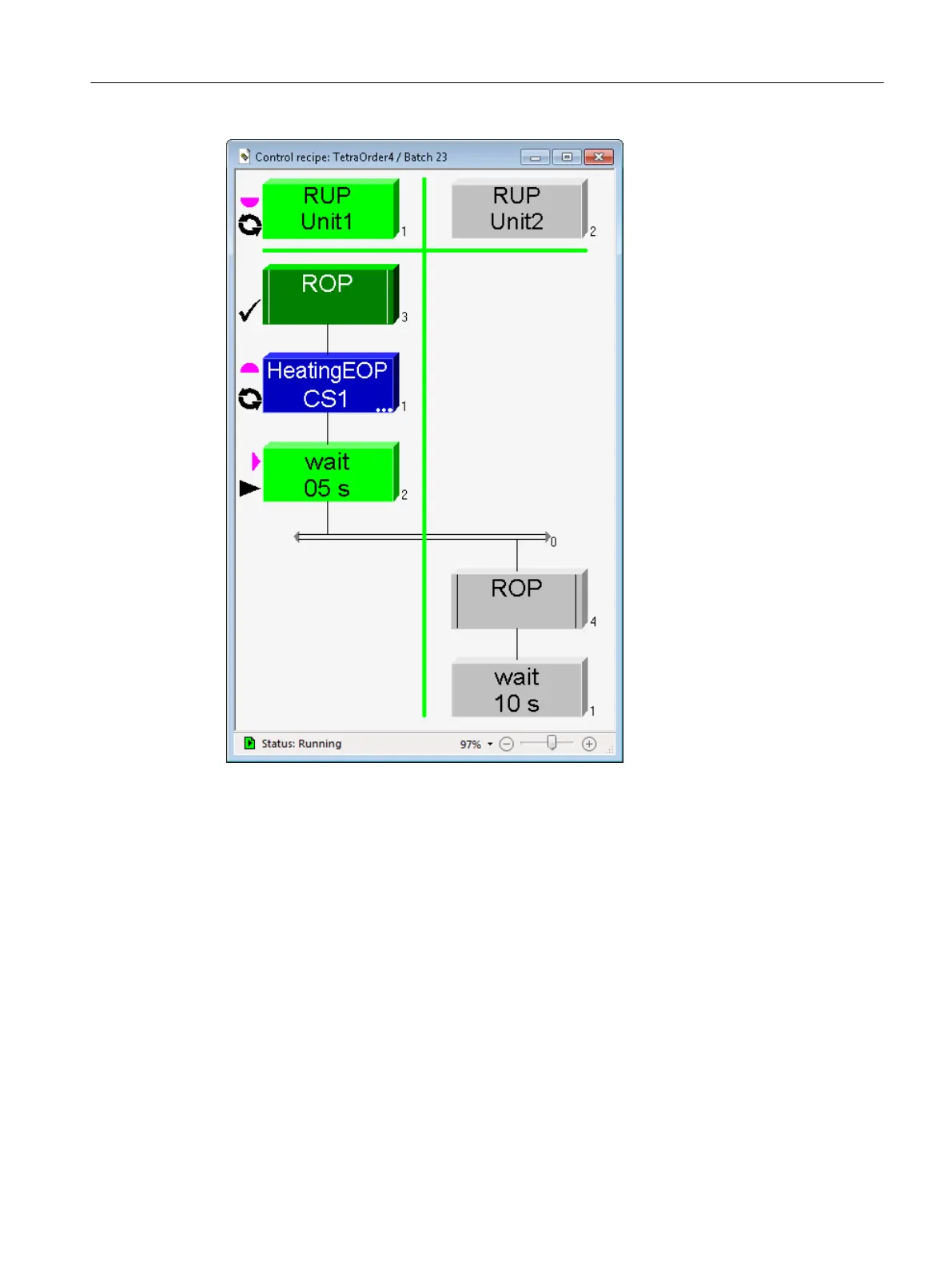

The figure below, for example, shows the following:
● The released extended equipment phase "HeatingEOP CS1" in the status "Completed"
and "Continue"
● Inheritance of the "Continue" symbol of the step SFCTypEPH CS1 to the ROP of the RUP
Unit 2
BATCH Control Center
9.8 Batch control
SIMATIC BATCH V8.2
Operating Manual, 02/2016, A5E35958174-AA 405
