10.04 Programming with ShopMill
3.5 Contour millin
g
3
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 3-215

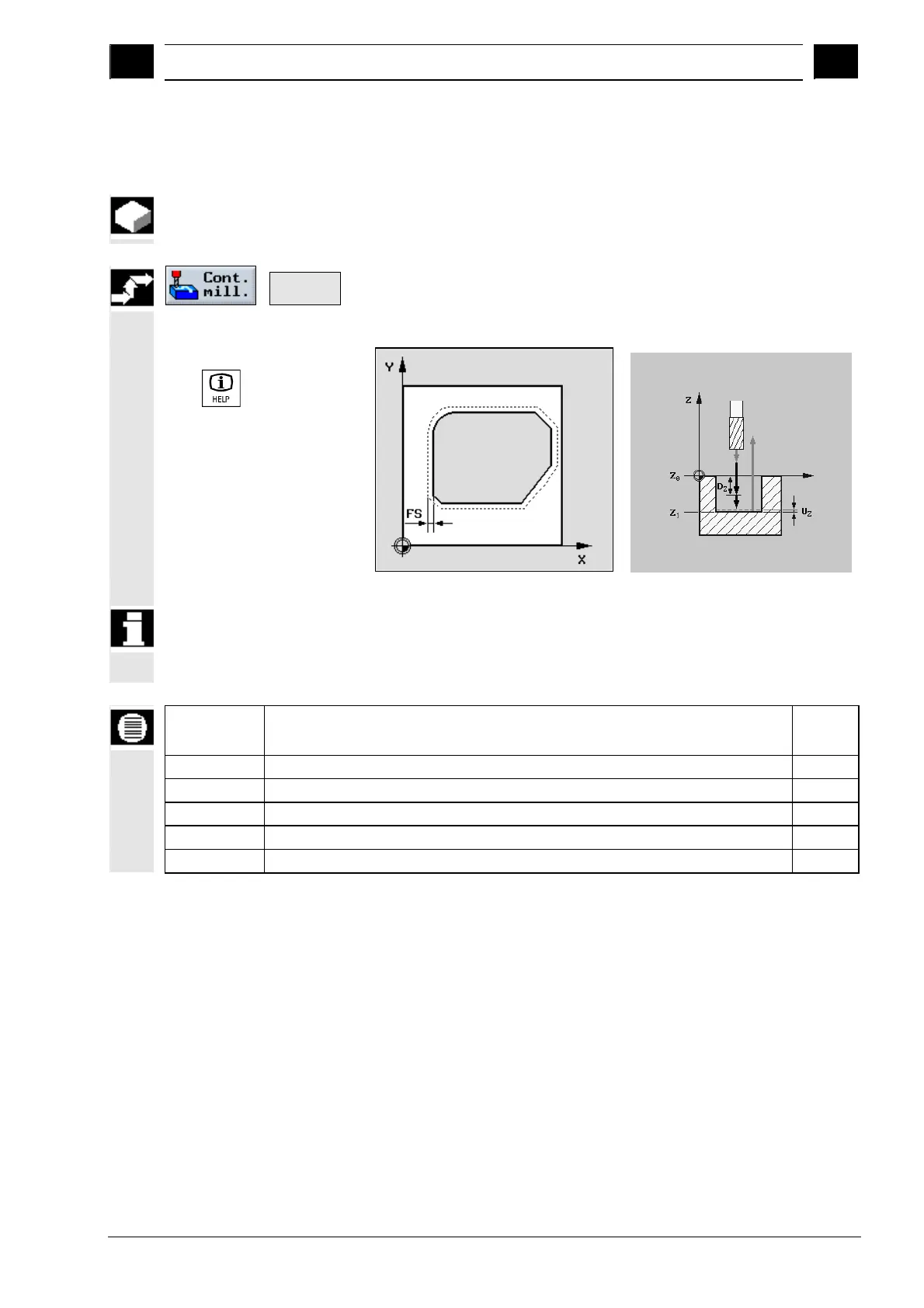

3.5.11 Chamfering a contour pocket
If you have planned edge breaking, mill a chamfer after that.
Mill
pocket >
 Press the "Cont. mill." and "Mill pocket" softkeys.
 Select "Chamfer" in machining mode.
Call help display with
the
key
Help display "Chamfer pocket"
If you want to mill a chamfer and have programmed inside corners
without filleting during rounding, you must specify the radius of the
finishing tool as the rounding in the contour.
Parameters
Description for chamfer:
Unit
T, F, V See Sec. "Programming the tool, offset value and spindle speed".
Machining type Chamfer
Z0 Workpiece height (abs.) mm
FS
Chamfer width (for chamfer only), inc.
mm
ZFS
Insertion depth tool tip (for chamfer only), abs. or inc.
mm
