10.04 Programming with G Code
4.2 Runnin
a G code
ro
ram
4
ï›™ Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 4-321
4.2 Running a G code program
During execution of a program, the workpiece is machined in
accordance with the programming on the machine.
After the program is started in automatic mode, workpiece machining
is performed automatically. You can, however, stop the program at
any time and then resume execution later.
Execution of the program can be simulated graphically on the screen
to enable you to check the programming result without moving the
machine axes.
For more information about simulation, see Sec. "Simulation".
The following requirements must be met before executing a program
on the machine:
• The measuring system of the control is synchronized with the
machine.
• A program created in G code is available.
• The necessary tool offsets and work offsets have been entered.
• The necessary safety interlocks implemented by the machine
manufacturer are activated.
When executing a G code program, the same functions are available
as for executing a sequential control program (see Sec. "Machining a
workpiece").
Simulating a G code
program
-or-

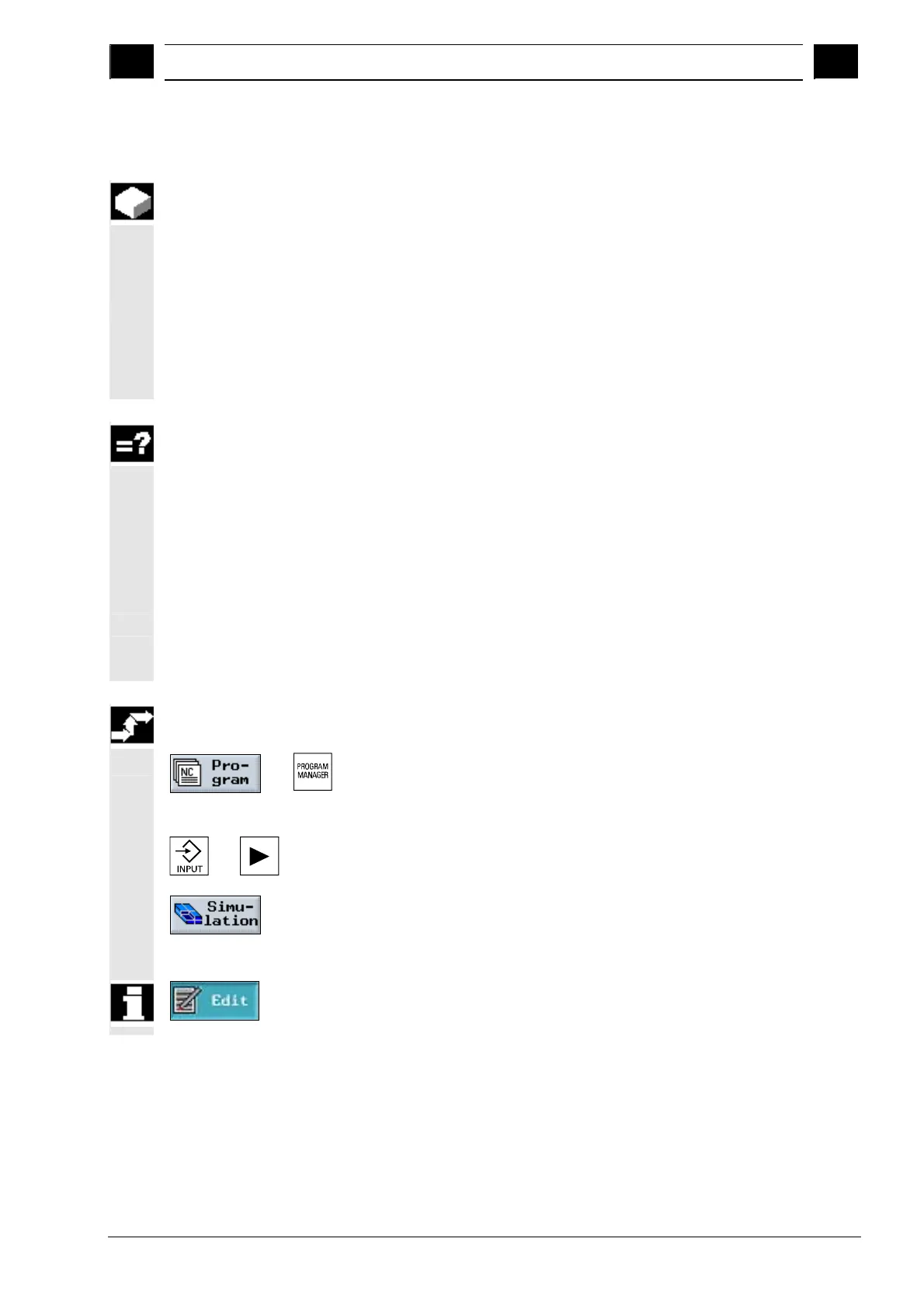

îš¾ Press the "Program" softkey or the "Program Manager" key.
îš¾ Position the cursor on the desired G code program.
-or-
îš¾ Press the "Input" or "Cursor right" key.
The program is opened in the G code editor.
îš¾ Press the "Simulation" softkey.
Execution of the program will be displayed in full on the screen in
graphical form.
Select the "Edit" softkey if you want to return directly to the G code
editor from the simulation screen.
