1.3.4 Entering parameters
On setting up the machine and during programming, you must enter
values in the white fields for various parameters.
Parameters that have a gray input field are automatically calculated
by ShopMill.
Parameter
White
field input
Unit
Gray
field input

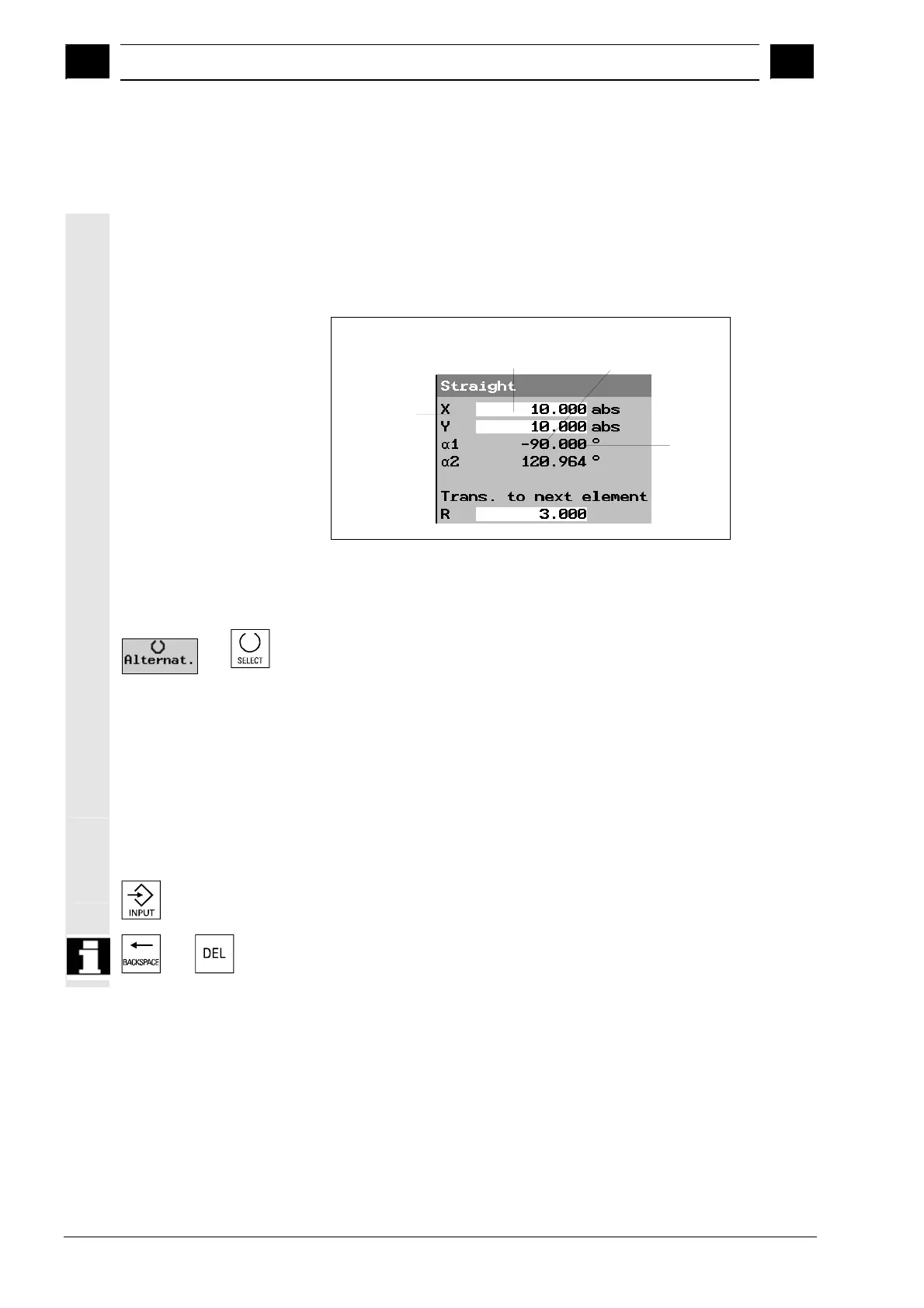

Parameterization screen form
Selecting a parameter
Some parameters require you to select from a number of options in
the input field. Fields of this type do not allow you to type in a value.
-or-
 Press the "Alternat." softkey or the "Select" key until the required
setting is displayed.
The "Alternat." softkey is only visible when the cursor is positioned on
an input field that presents a choice of options. The "Select" key is
also only active in this situation.
Entering a parameter
For the remaining parameters, enter a numerical value in the input
field using the keys on the operator panel.
 Enter the desired value.
 Press the "Input" key to terminate entry.
-or-
If you do not want to enter a value, i.e. not even "0", press the
"Backspace" or "Del" key.
