1
10.04 Introduction
1.2 Workstation
1
ï›™ Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 1-33

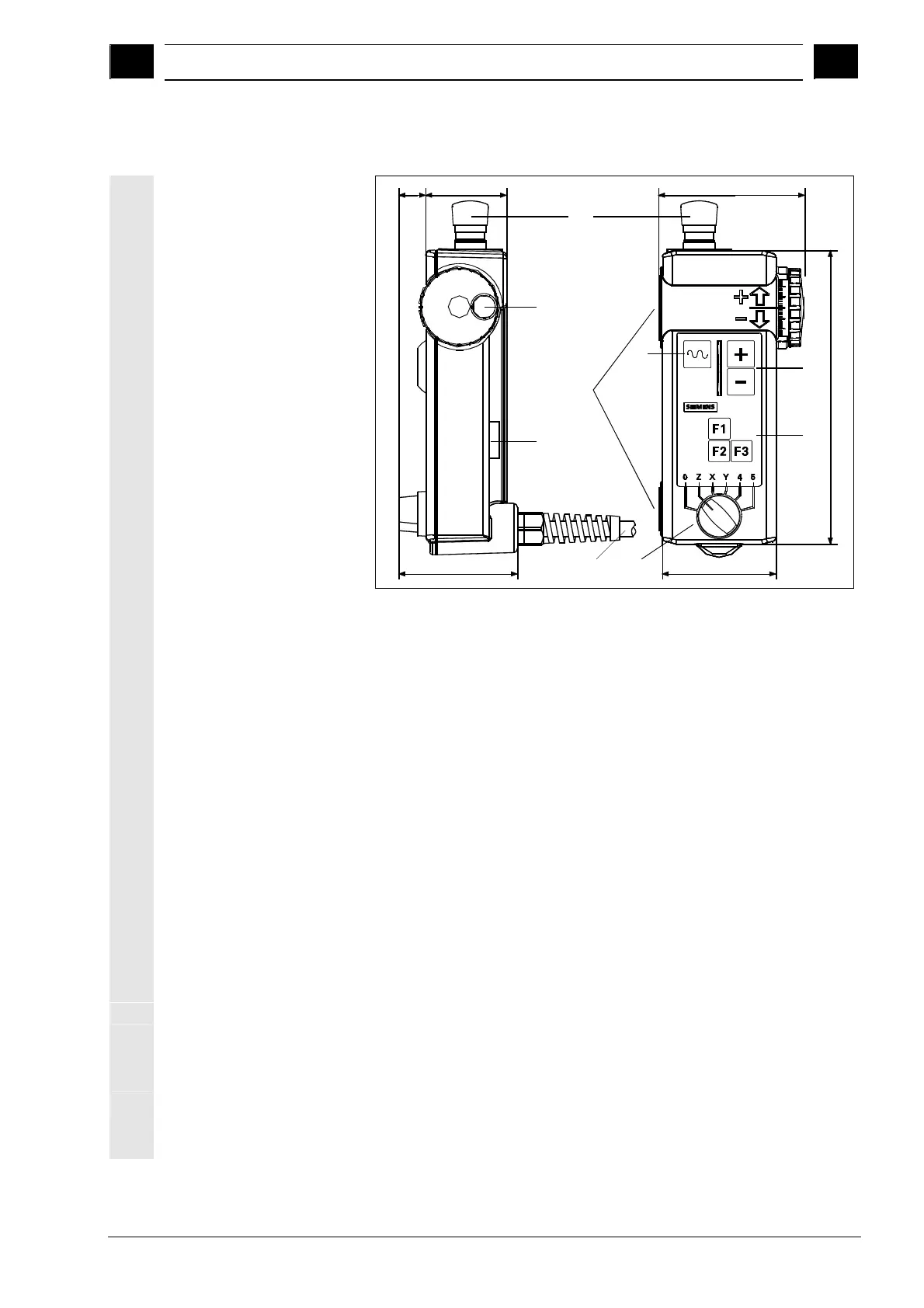

1.2.6 Mini handheld unit
A
B
C
H
D
F
G
E
I
88 83.5
20
60 108
216
A EMERGENCY STOP button, two-channel
B Enabling key, two-channel
C Axis selector switch for 5 axes and neutral position
D Function keys F1, F2, F3
E Traversing keys, directions +, -
F Rapid traverse key for high-speed travel with traversing keys or
handwheel
G Handwheel
H Magnets for attachment to metal parts
I Connecting cable 1.5 m ... 3.5 m
Control elements EMERGENCY STOP button
The EMERGENCY STOP button must be pressed in an emergency
1. when a person is at risk,
2. when there is a danger of the machine or workpiece being
damaged.
Enabling button
The enabling button is designed as a 2-way switch. It must be
pressed to initiate traversing movements.
Axis selection switch
You can select up to 5 axes with the axis selector switch.
