3.6.8 Programming examples for polar coordinates

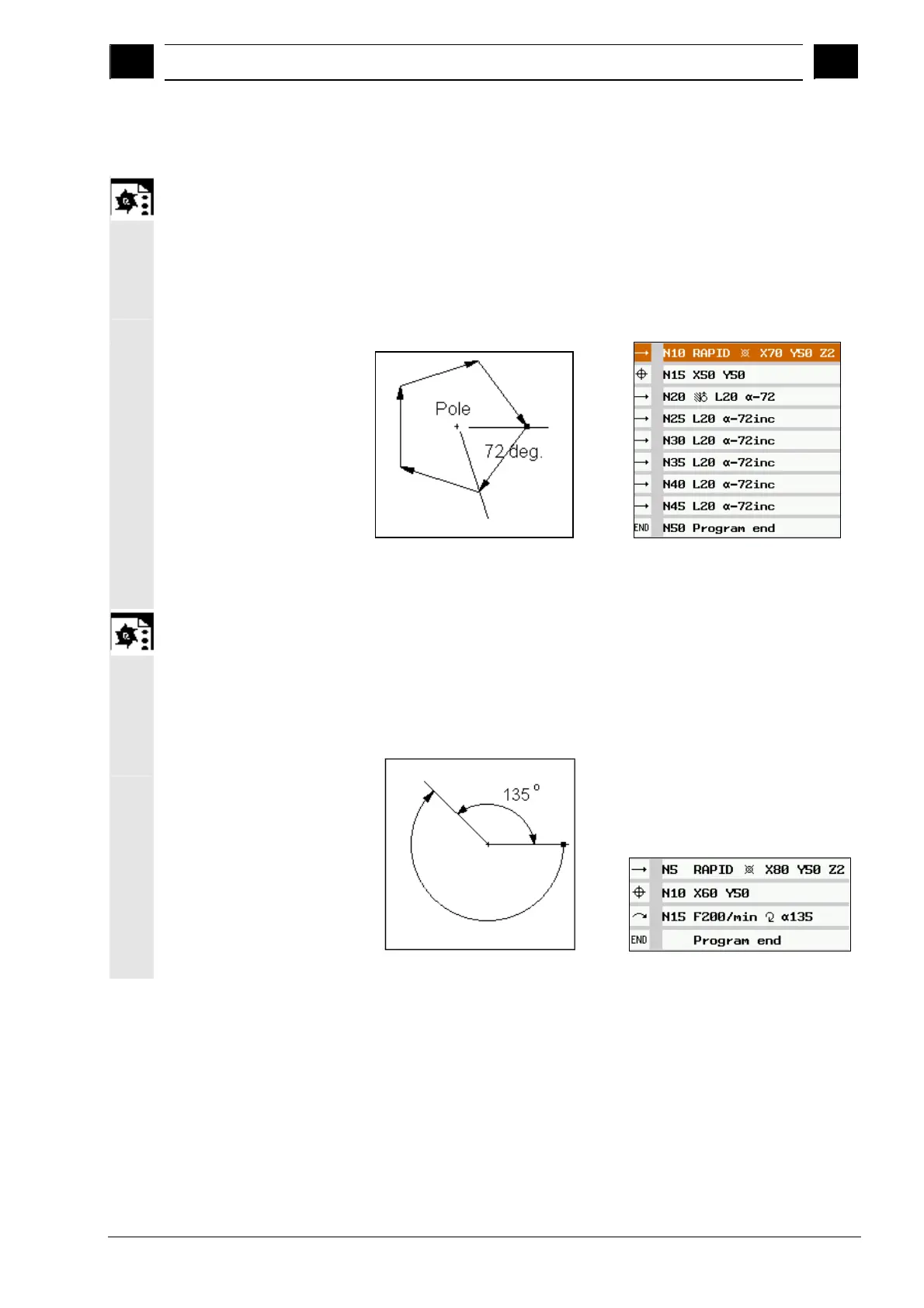

Programming a pentagon
You want to machine the outside contour of a pentagon.
Make sure that you enter the correct workpiece dimensions!
Approach starting point in rapid traverse: X70, Y50, radius compensation off.
Pole: X=50, Y=50
1.
polar line: L=20, α= −72 absolute, radius compensation right
2.
to 5th polar line: L=20, α= −72 degrees incremental,
radius compensation right
Programming graphics and extract from machining plan
Programming an arc of
225 degrees
You want to machine the outside contour of an arc.
Make sure that you enter the correct workpiece dimensions!
Approach starting point in rapid traverse: X=80, Y=50, radius compensation
right
Pole: X=60, Y=50
CW rotation, α= 135 degrees absolute
Programming graphics and extract from machining plan
