1
10.04 Introduction
1.3 User interface
1
 Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition 1-35
1.3 User interface
1.3.1 Overview

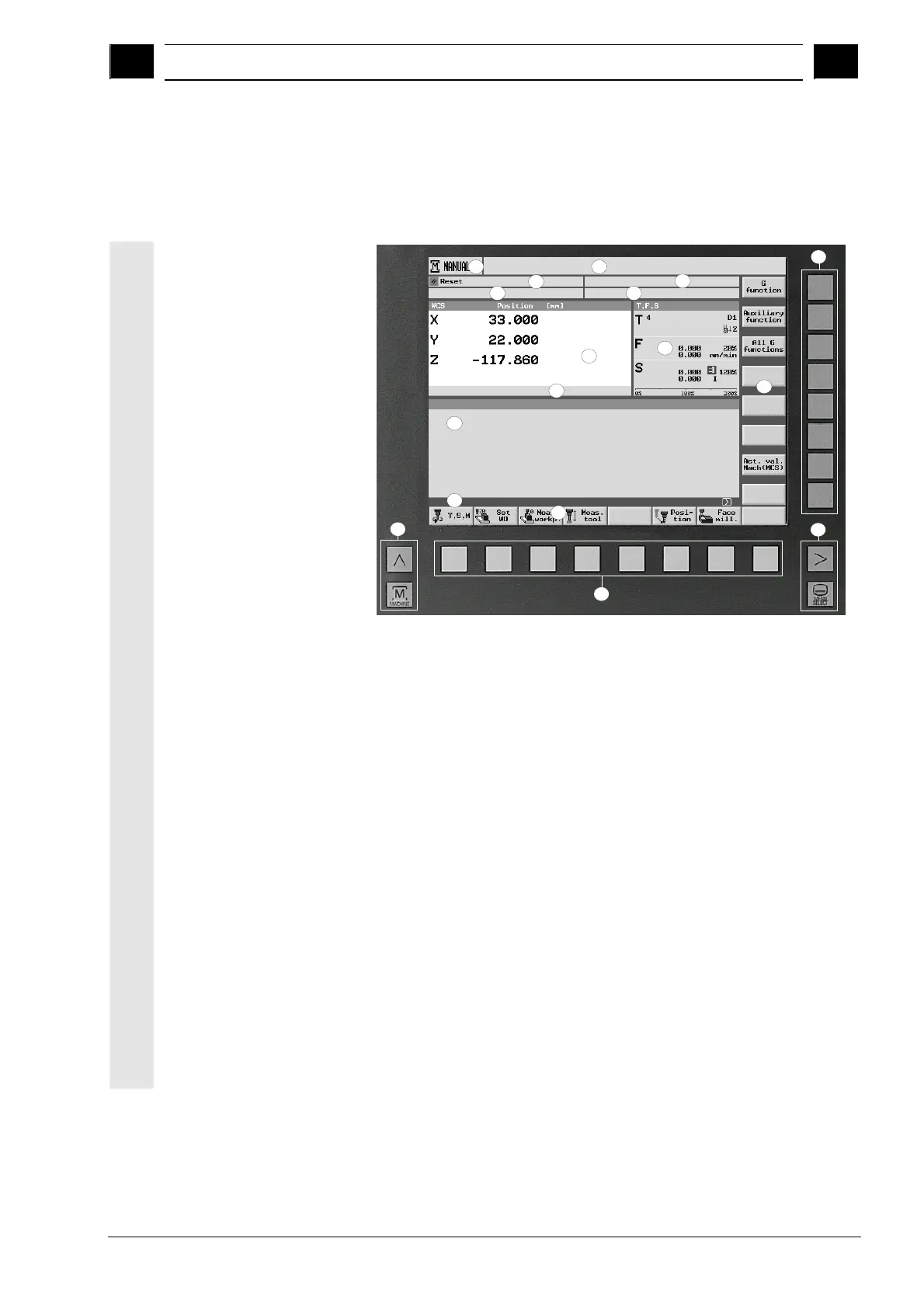

Screen layout
14
14
15
15
12
11
10
9
13
8
7
4
3
2
6
5
1
User interface
1 Active operating mode/operating area and secondary mode
2 Alarm and message line
3 Program name
4 Program path
5 Channel state and program control
6 Channel operational messages
7 Position display of the axes
8 Display for
• active tool T
• current feedrate F
• spindle S
• spindle utilization in percent
9 Display of active work offsets and rotation
10 Working window
11 Dialog line for additional explanatory text
12 Horizontal softkey bar
13 Vertical softkey bar
14 Softkeys
15 Screen buttons
