Siemens SINUMERIK 840D Operation/Programming

5
Simulation 10.04
5.6 Three-dimensional dis
p
la
y
5
 Siemens AG, 2004. All rights reserved
5-338 SINUMERIK 840D/840Di/810D Operation/Programming ShopMill (BAS) – 10.04 Edition
5.6.2 Cutting a section out of the workpiece
You can cut a section out of the volume module to obtain certain
views.
Precondition: You have selected one side of the workpiece.
 Select the "Cut open" softkey.
Shifting section planes
To make concealed contours visible, shift the section planes using the
cursor and "Paging" keys (see also Sec. "Representation in 3-plane
view") to any position.
The new setting is displayed after a short update time.

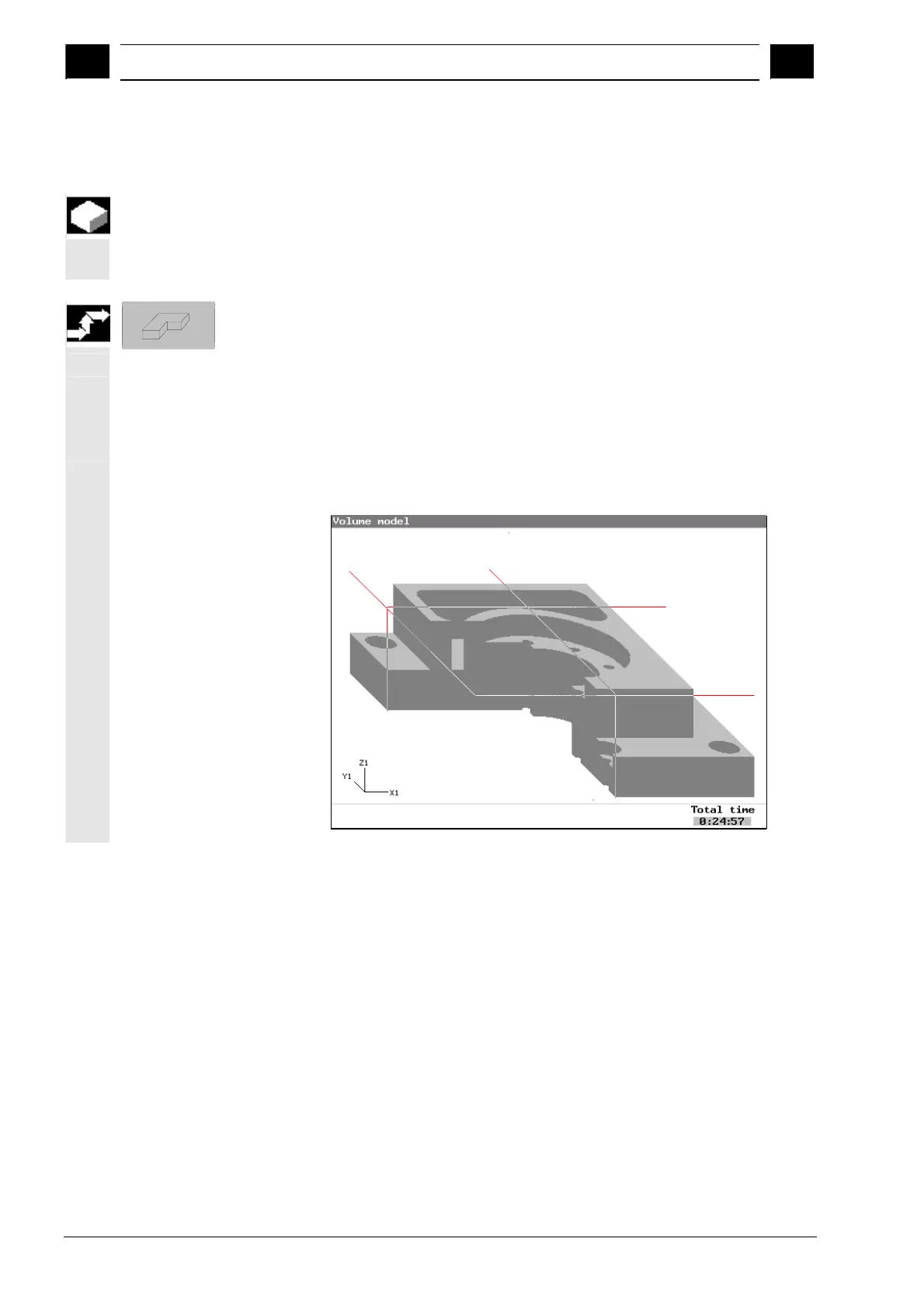

Example of a section through a volume model:
