2.3 Tool cutting edge
Tool Compensation (W1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-35
Active tool shape
The geometry tool radius compensation (tool parameters 6 to 11) and the wear tool radius
compensation (tool parameters 15 to 20) are added together (geometry tool radius 1 is
added to wear tool radius 1, etc.) to arrive at the shape of the active tool.
2.3.8 Base dimension/adapter dimension tool length compensation
(tool parameters 21 to 23)
Meaning
Tool base dimension/adapter dimension can be used when the reference point of the
toolholder (tool size) differs from the reference point of the toolholder.
This is the case when:
• The tool and the tool adapter are measured separately but are installed on the machine in
one unit (the tool size and adapter size are entered separately in a cutting edge).
• The tool is used in a second tool fixture located in another position (e.g., vertical and
horizontal spindle).
• The tool fixtures of a tool turret are located at different positions.
/HQJWK
/HQJWK
7XUQLQJFHQWHU
/HQJWK
/HQJWK
)7RROKROGHUUHIHUHQFHSRLQWV
)7RROKROGHUUHIHUHQFHSRLQWV
7RROEDVH
GLPHQVLRQ
OHQJWK
7RROEDVH
GLPHQVLRQ
OHQJWK
/HQJWK
5DGLXV
0LOOLQJPDFKLQH
7XUQLQJPDFKLQH
7RROEDVH
GLPHQVLRQ
OHQJWK
7RROEDVH
GLPHQVLRQ
OHQJWK
;
=
<
)
=
;
)
)
)
)

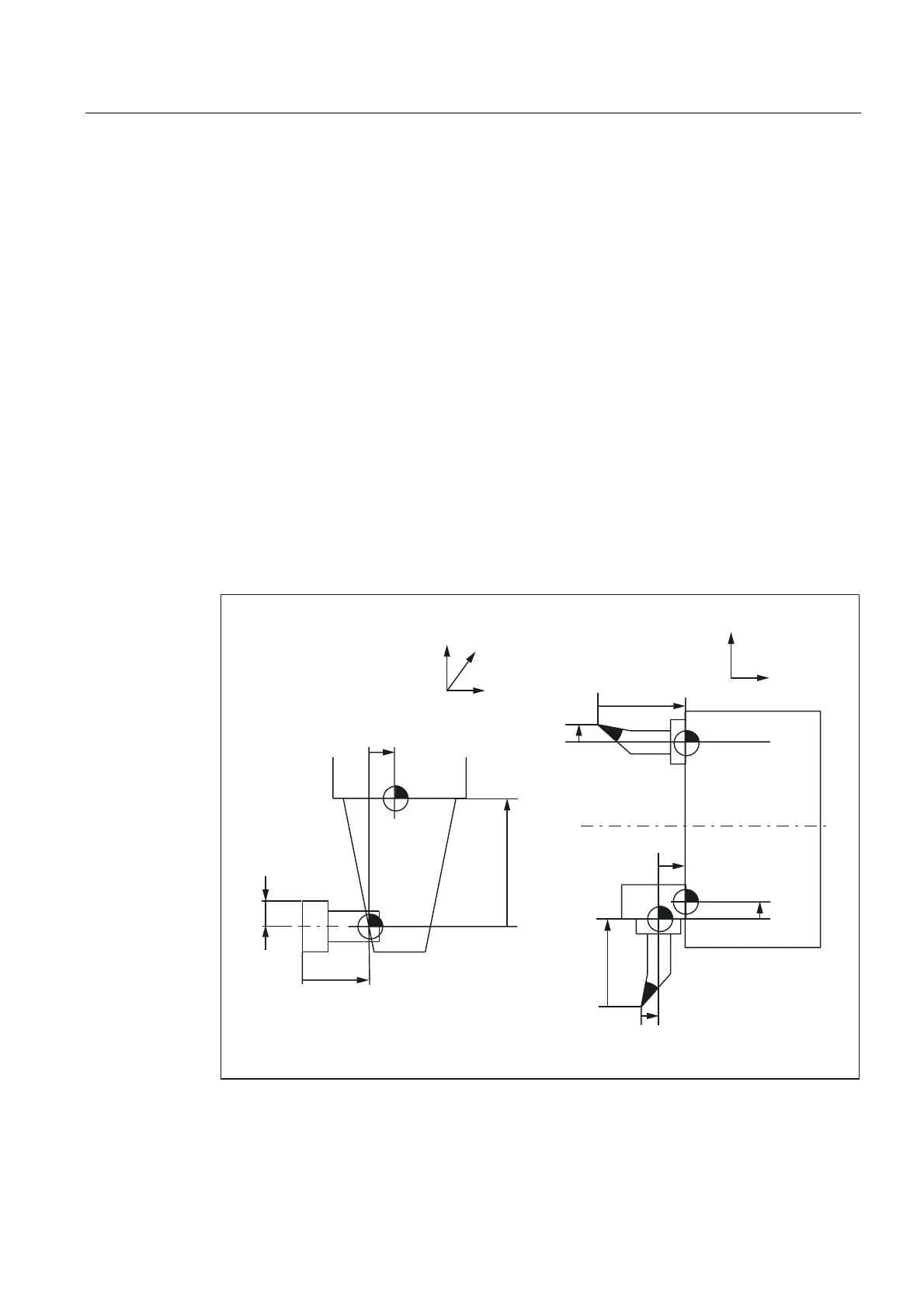

Fig. 2-10 Example applications for base-dimension/adapter-dimension TLC
