2.1.7 Speed setpoint monitoring
Function
The speed setpoint comprises:
• Speed setpoint of the position controller
• Speed setpoint portion of the feedforward control (with active feedforward control only)
• Dift compensation (only for drives with analog setpoint interface)
.9
3UHFRQWUROYDOXH
'ULIWYDOXH
DSSOLHVRQO\WRDQDORJGULYHV
7R
VSHHG
FRQWUROOHU
6SHHG
VHWSRLQW
PRQLWRULQJ
3RVLWLRQFRQWUROOHU
)ROORZLQJ
HUURU

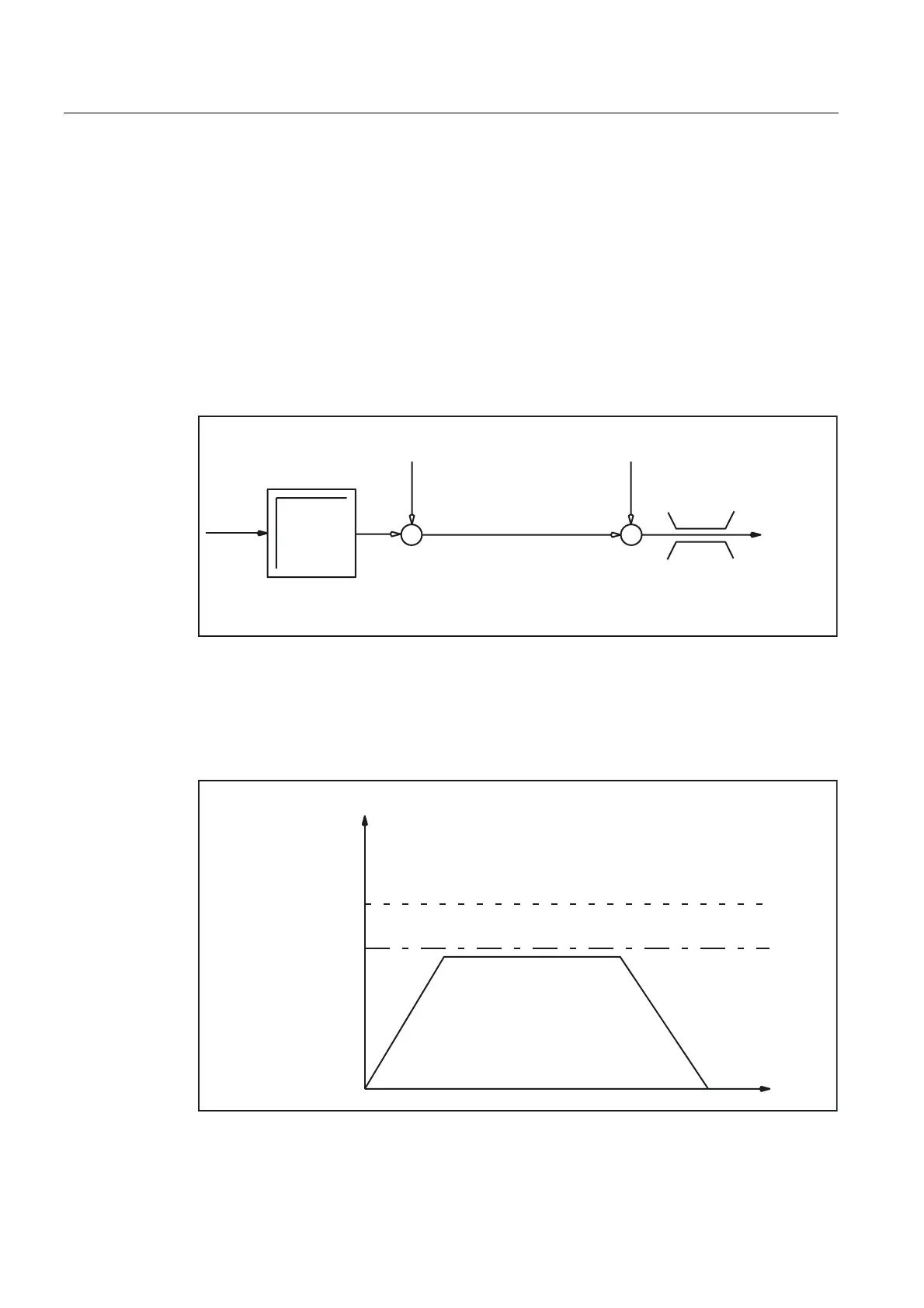

Fig. 2-6 Speed setpoint calculation
The speed setpoint monitoring ensures by limiting the control or output signal (10V for
analog setpoint interface or rated speed for digital drives) that the physical limitations of the
drives are not exceeded:
MD36210 $MA_CTRLOUT_LIMIT (Maximum speed setpoint)
(J
6SHHGVHWSRLQW>@
&75/287B/,0,7>Q@
&75/287B/,0,7>Q@
IRUWHVWPRGH
Fig. 2-7 Speed setpoint limitation
