2.10 Acceleration margin for radial acceleration (channel-specific)
Acceleration (B2)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-17
2.9.3 Programming
Key statement
The function is not programmable.
2.10 2.10 Acceleration margin for radial acceleration (channel-specific)
2.10.1 Detailed description
2.10.1.1 General information
Key statement
In addition to the path acceleration (tangential acceleration), radial acceleration also has an
effect on curved contours. If this is not taken into account during parameterization of the path
parameters, the effective axial acceleration during acceleration and deceleration on the
curved contour can, for a short time, reach 2x the maximum value.
Effective axial acceleration =
Path acceleration + radial acceleration =
2 * ( MD32300 $MA_MAX_AX_ACCEL )
1
1
D
SDWK
1
D
UDGLDO

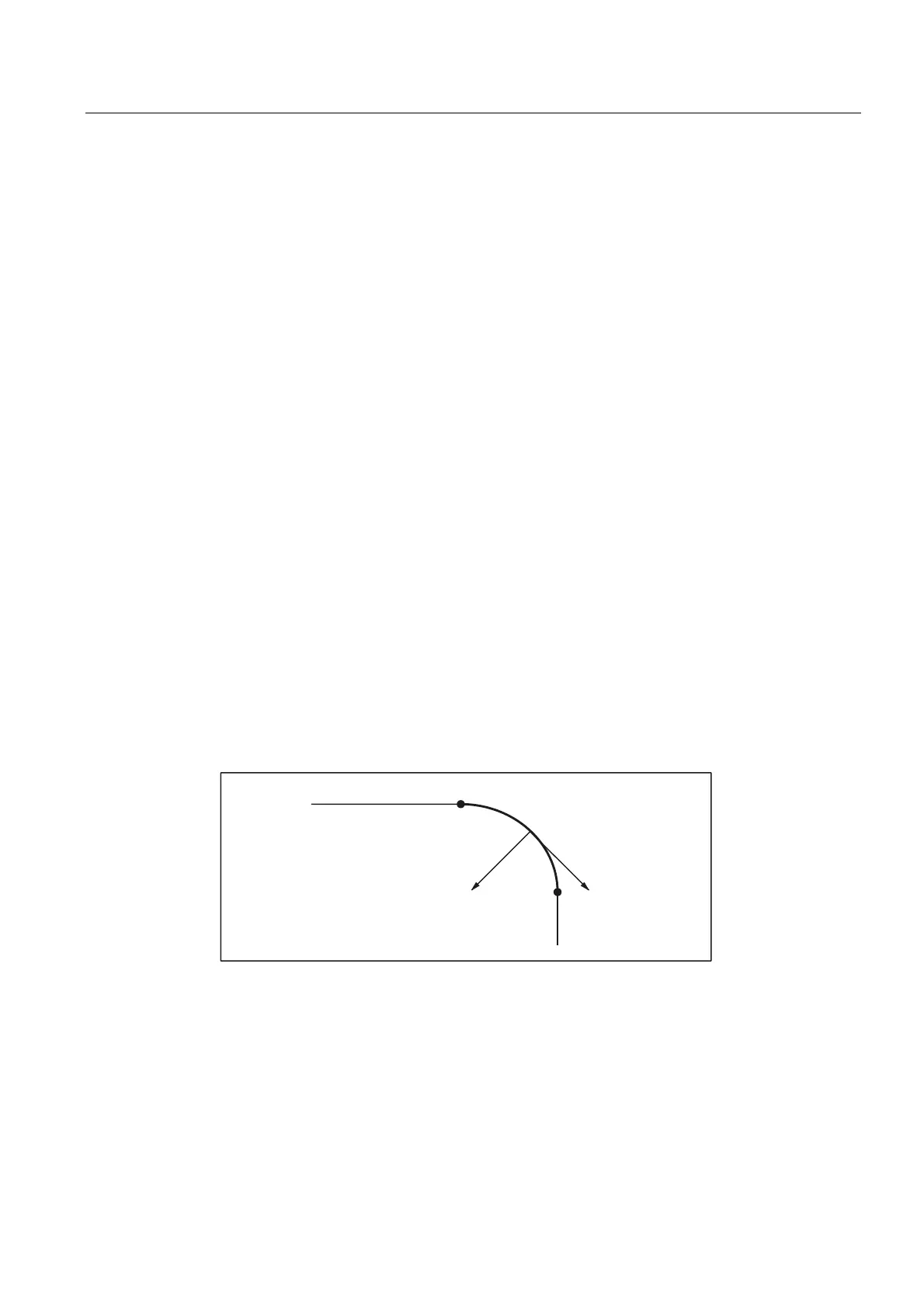

Fig. 2-3 Radial and path acceleration on curved contours
The channel-specific machine data:
MD20602 $MC_CURV_EFFECT_ON_PATH_ACCEL
(influence of path curvature on dynamic path response)
can be used to set the proportion of the axis-specific acceleration that is to be taken into
account for radial acceleration.
