Detailed Description
2.3 Coordinate systems
Axis Types, Coordinate Systems, Frames (K2)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-31
2.3.5 Basic zero system (BZS)
BZS
The basic zero system (BZS) is the basic coordinate system with a basic offset.
;
=
<
;
<
=
%DVLFFRRUGLQDWHV\VWHP%&6
%DVLF]HURV\VWHP%=6
%DVLFRIIVHW

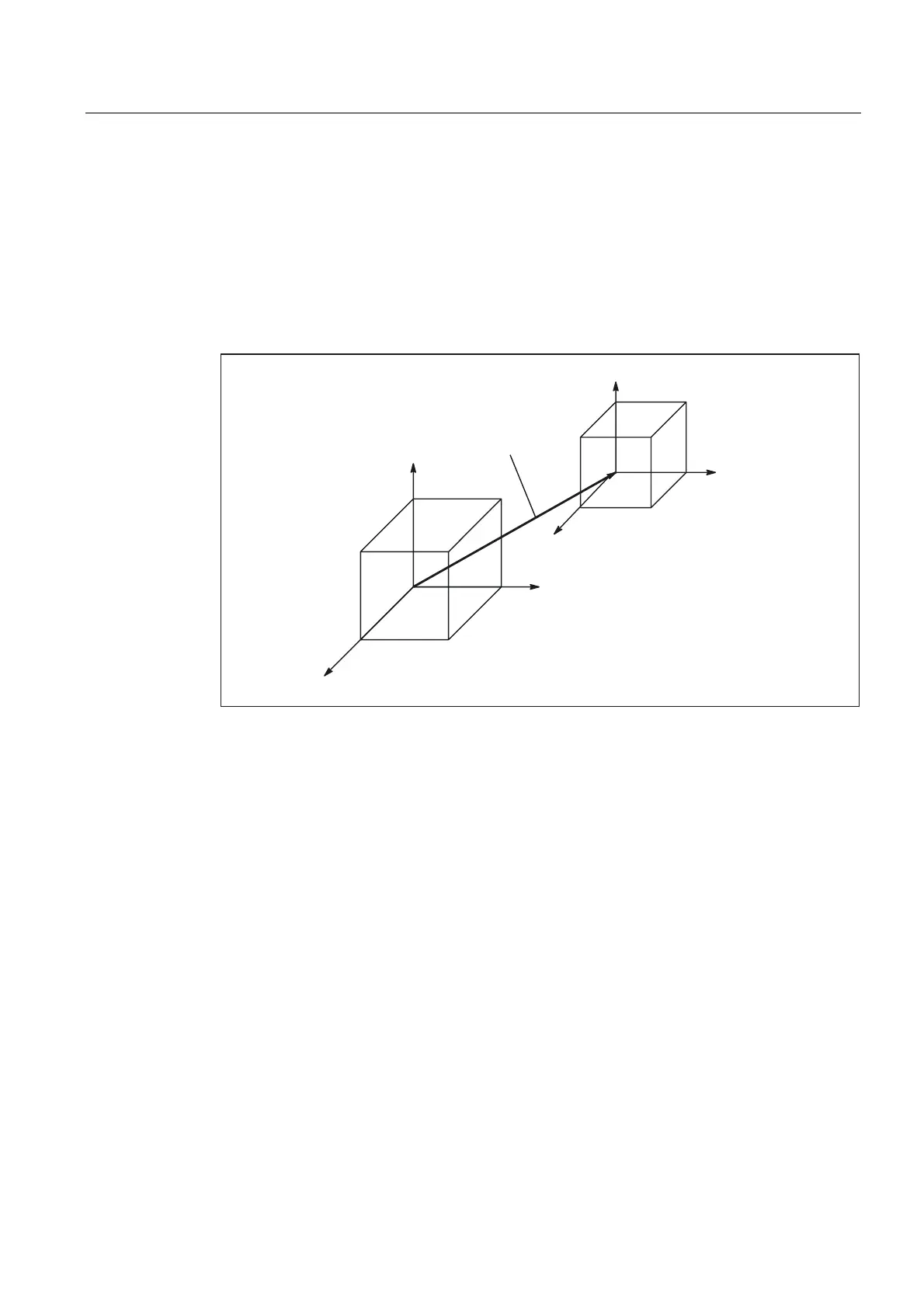

Fig. 2-18 Basic offset between BCS and BZS
Basic offset
The basic offset describes the coordinate transformation between BCS and BZS. It can be
used, for example, to define the palette window zero.
The basic offset comprises:
• Zero offset external
• DRF offset
• Superimposed motion
• Chained system frames
• Chained basic frames
