Detailed Description
2.3 Tool cutting edge
Tool Compensation (W1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-37
Longitudinal/face
The tool clearance angle is entered in different ways according to the type of machining
(longitudinal or face). If a tool is to be used for both longitudinal and face machining, two
cutting edges must be entered for different tool clearance angles.
7RROFOHDUDQFH
DQJOHIRU
ORQJLWXGLQDO
PDFKLQLQJ
7RROFOHDUDQFH
DQJOHIRU
IDFHPDFKLQLQJ
;
=

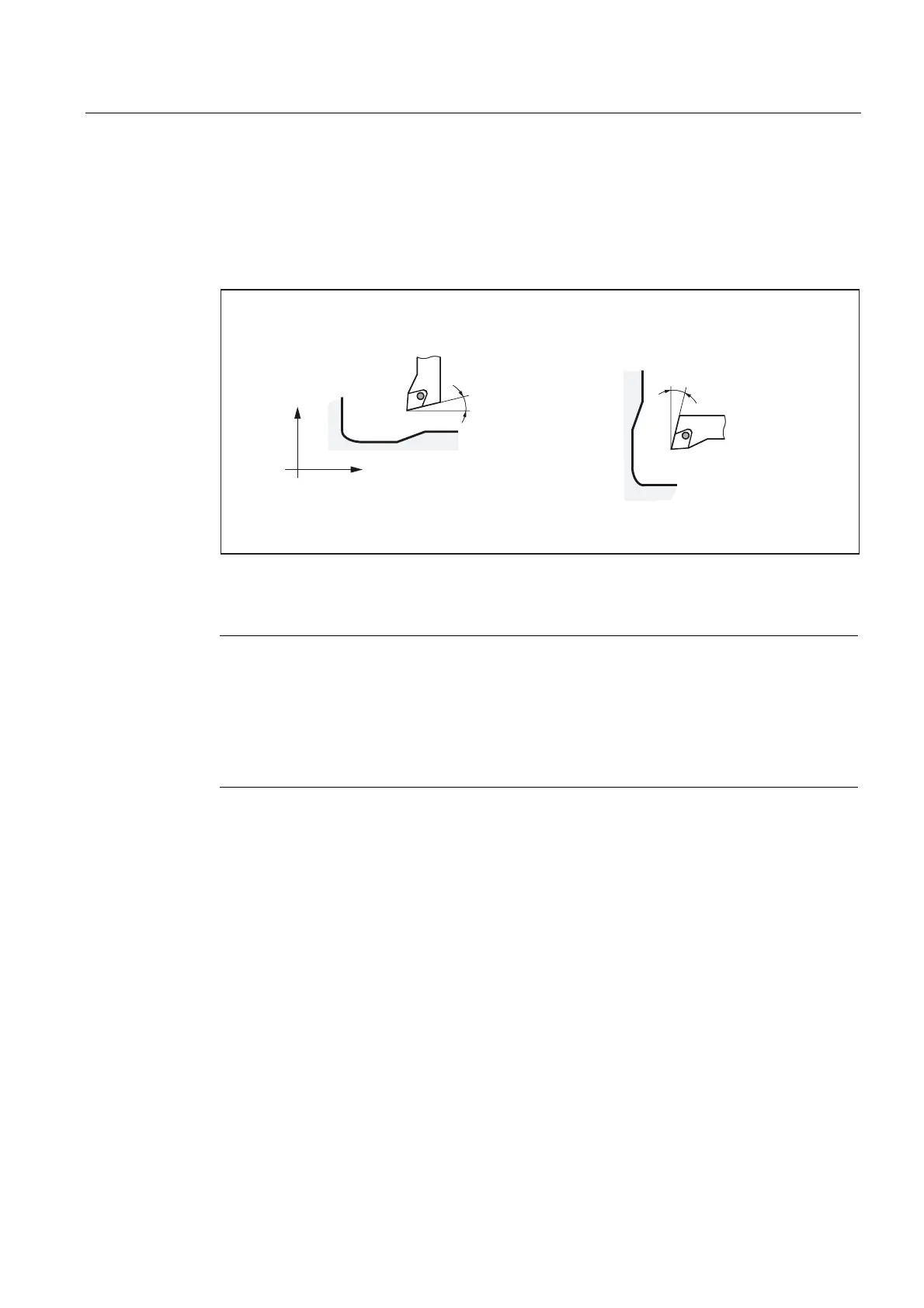

Fig. 2-12 Tool clearance angle for longitudinal and face machining
Note
If a tool clearance angle (tool parameter 24) of zero is entered, relief cutting is not monitored
in the turning cycles.
Please refer to the following documentation for more detailed information about the tool
clearance angle:
References:
/PAZ/ Programming Guide, Cycles.
2.3.10 Tools with relevant tool point direction (SW 5 and higher)
Up to SW 4.x
The change from G40 to G41/G42 or vice versa is treated as a tool change for tools with
relevant tool point direction. This causes a preprocessor stop when a transformation (e.g.,
TRANSMIT) is active, and may lead to deviations from the intended part contour.
SW 5 and higher
The following changes have been made:
1. The change from G40 to G41/G42 or vice versa is no longer treated as a tool change.
Therefore, a preprocessor stop no longer occurs with Transmit.
