Detailed Description
2.1 Various interface signals and functions (A2)
NC/PLC Interface Signals (Z1)
2-50 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
DB31, ...

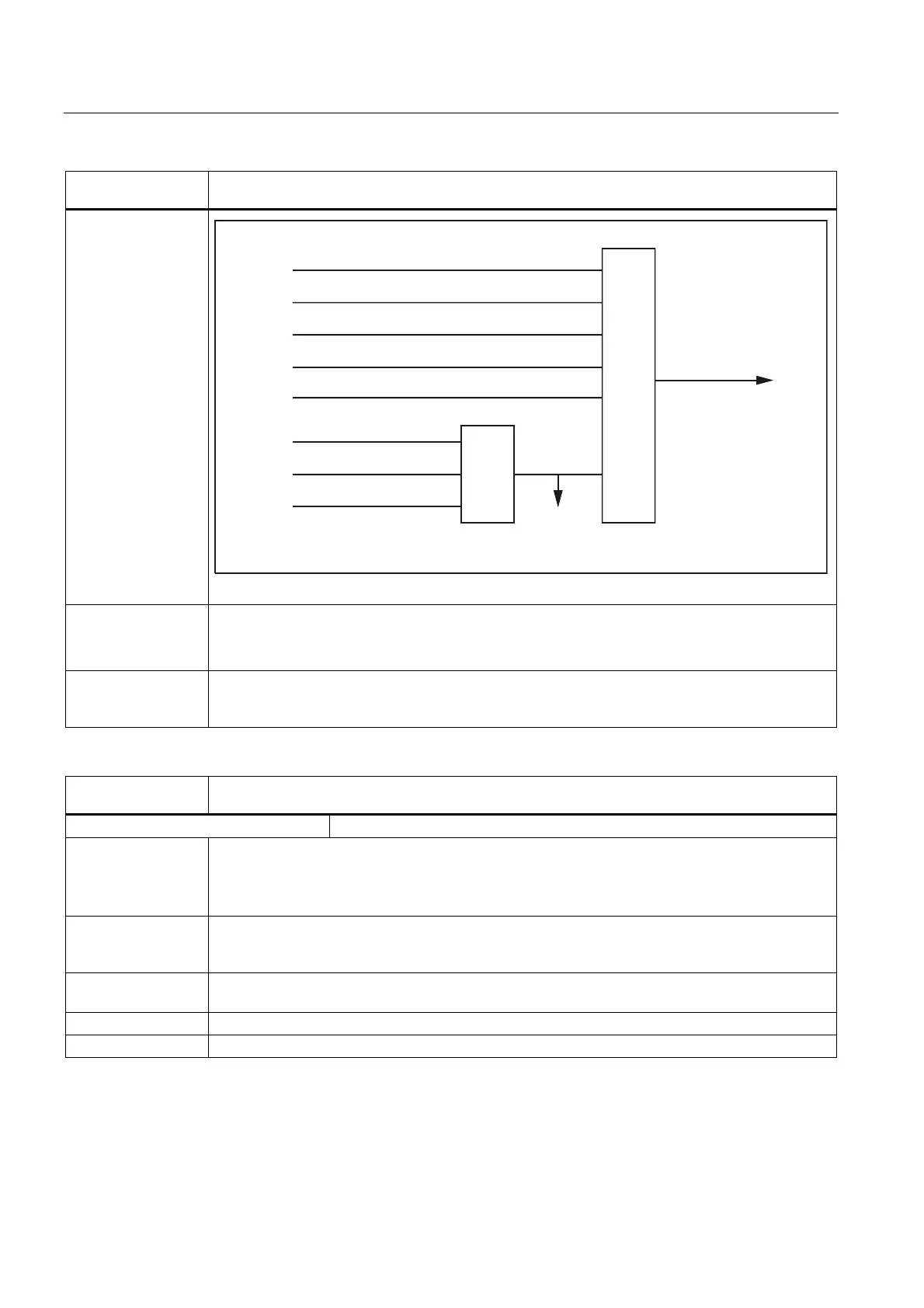

DBX93.5 Drive Ready

,6'ULYHUHDG\
'ULYHUHDG\
6WDWXVUHDG\
IRUWUDYHUVH
WHUPLQDO
5DPSXSFRPSOHWHG
'&OLQNFRQQHFWHG
1R'DODUP'&OLQN
6HWSRLQWHQDEOHWHUPLQDO
6WRUHGKDUGZDUHLQSXW
3XOVHHQDEOHVDIHRSHUDWLQJVWRSWHUPLQDO
6HUYRDQGSXOVHHQDEOHWHUPLQDO
*DWLQJVHWHQDEOH

Corresponding to .... DB10 DBX108.6 (611D-Ready)
DB31, ... DBX61.7 (current controller active)
DB31, ... DBX61.6 (speed controller active)
Additional references /IAD/ SINUMERIK 840D Installation and Startup Guide; Chapter: SIMODRIVE 611D
or
/IAG/ SINUMERIK 810D Installation and Start-up Guide
DB31, ...
DBX93.6 Speed controller integrator disabled
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
The request from the PLC to disable the integrator of the speed controller using interface signal:
DB31, ... DBX21.6 (integrator inhibit, speed controller)
is active for the drive module.
The speed controller has therefore switched from a PI to a P controller.
Signal state 0 or
edge change
1 → 0
The integrator of the speed controller is enabled. The speed controller functions as a PI controller.
Signal irrelevant
for ...
SINUMERIK 810D
Corresponding to .... DB31, ... DBX21.6 (integrator disable, n-controller)
Additional references /IAD/ SINUMERIK 840D Installation and Startup Guide; Chapter: SIMODRIVE 611D
