Trigger setups Set up a FLEXRAY bus trigger

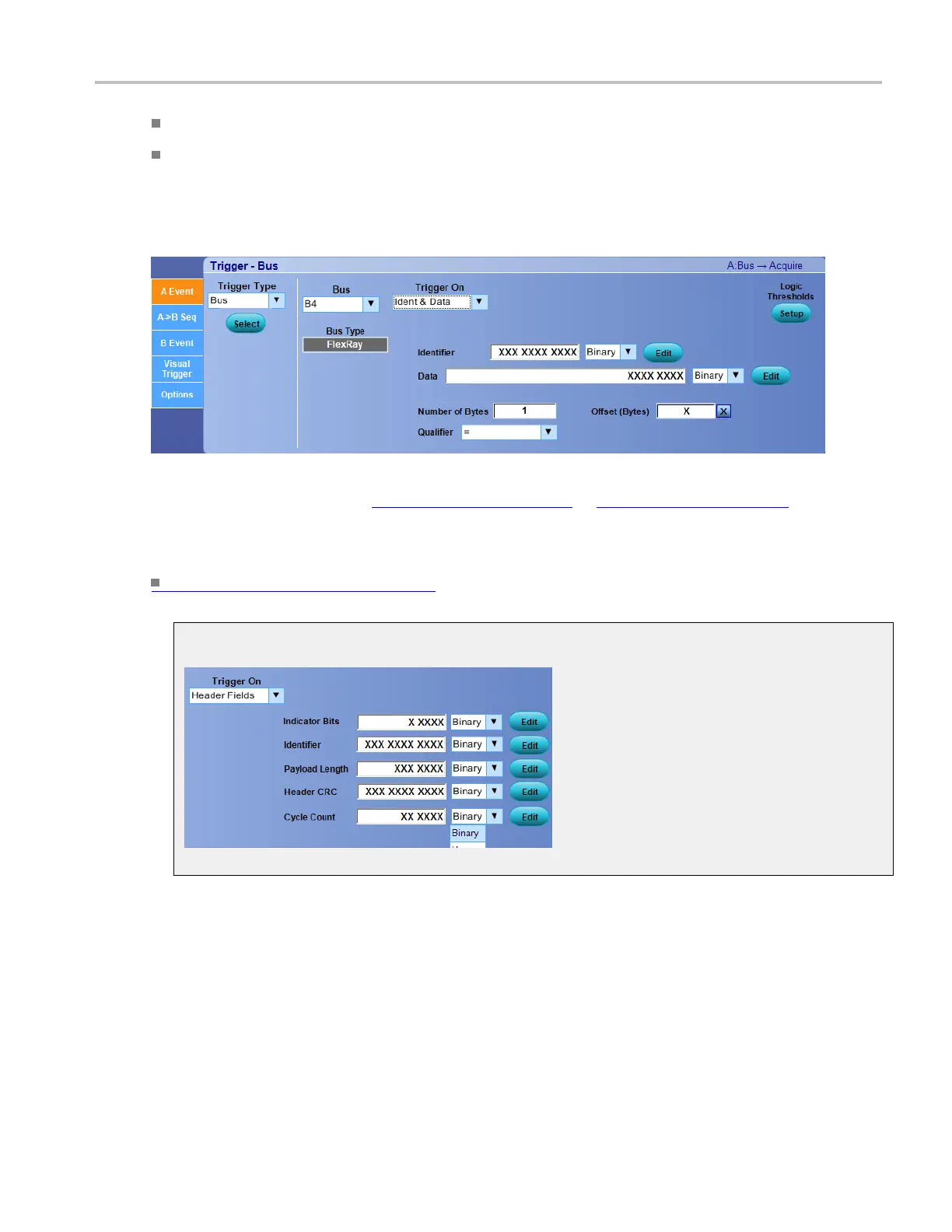

Select the type of bus cycle or activity to use as the trigger from the Trigger On drop-down list.
For some Trigger O n selections, you must set additional fields to define other parameters such as for
a Ident & Data.
In this example, you need to set the Identifier, Data, Number of Bytes, Offset, and Qualifier values. You
canalsosett
he component threshold levels through the Logic Thresholds Setup button.
Click the Trigger On selections Header Fields (see page 411) or Cycle Count (see page 412) to view
their parameters.
What do you want to do next?
Learn about bus setups. (see page 95)
Trigger on Header Fields
