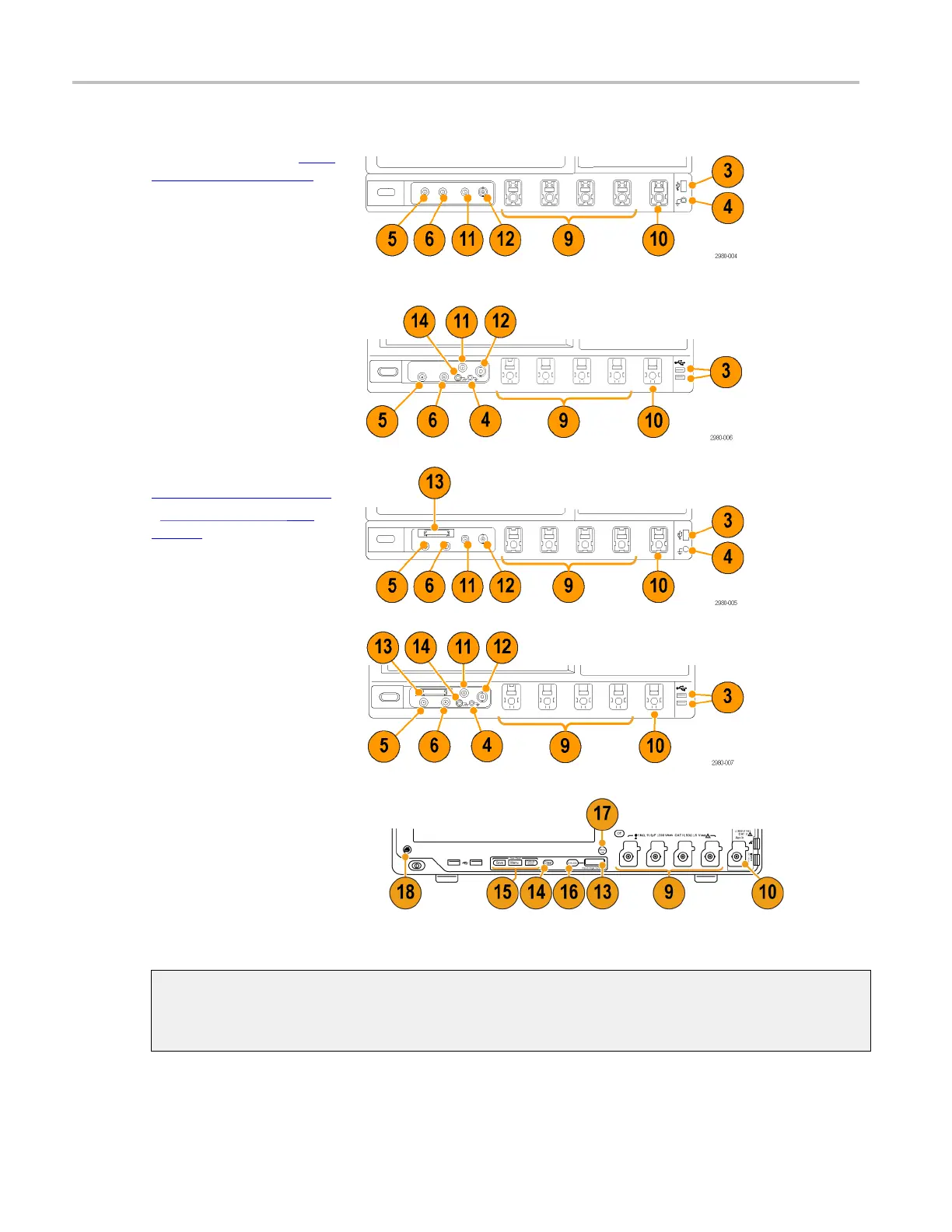

Controls and connectors Front panel overview
11. Fast Edge output used for probe
compensation
(see page 56)
12. DC Probe Cal ou
tput
For DPO70000C
and DSA70000C models:
For DPO70000D and DSA70000D models:
13. Logic pro
be input
(see page 57)
On / Standby switch (see
page 57)
For MSO70000C models:
For MSO70000D models:
14. Clear button
15. S ave/Recall buttons
16. Digital Channel setup menu
17. Menu Off button
18. P rint screen image button
For MSO5000 and DPO5000 models:
xxx
Probe Compensation output
Use the Probe Compensation output to compensate or deskew passive probes or active voltage probes.
On some models, this is the Fast Edge output.
56 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
