Fuji Electric Frenic Mega Series User Manual

3.3 Running Mode
3-14

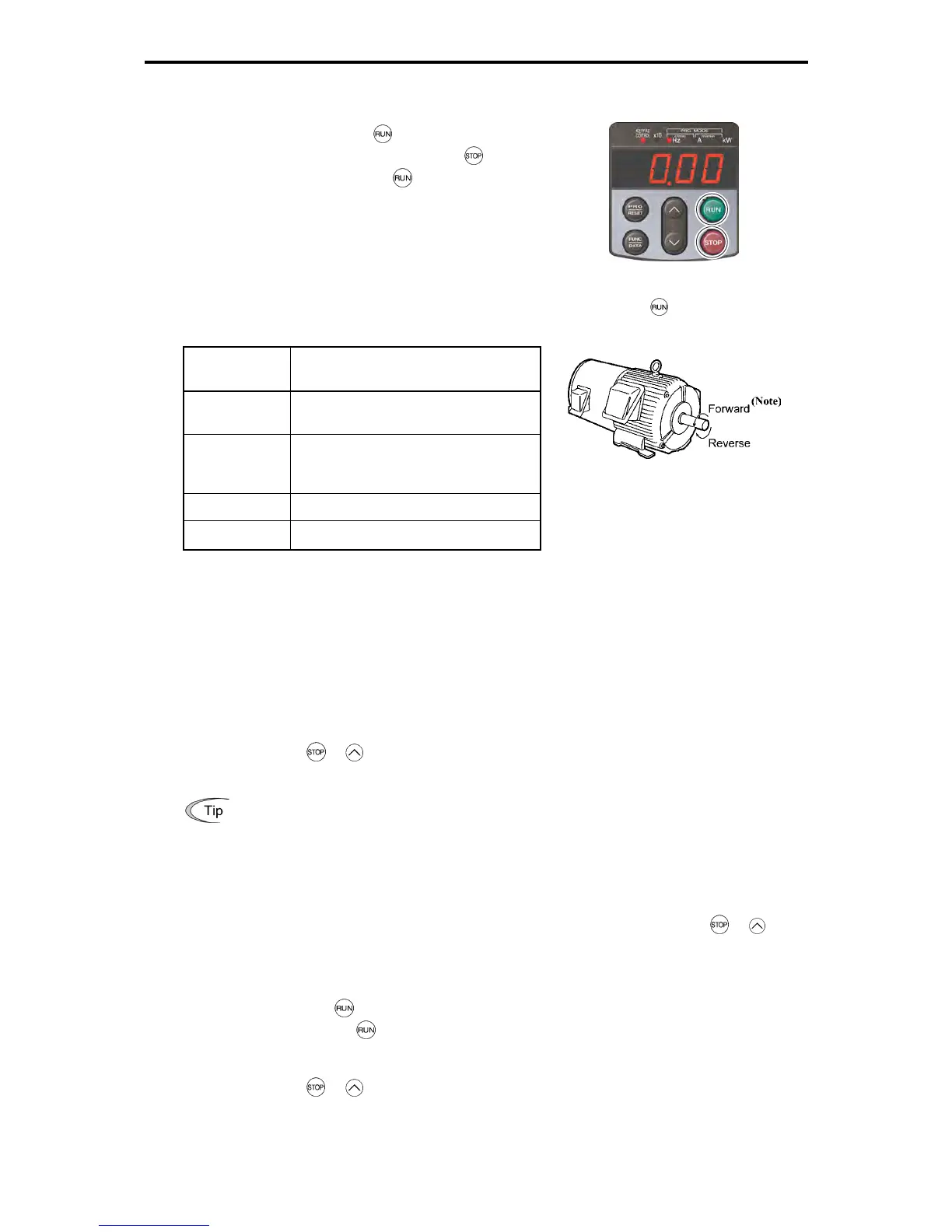

3.3.4 Running/stopping the motor
By factory default, pressing the key starts running the
motor in the forward direction and pressing the
key
decelerates the motor to stop. The
key is enabled only
in Running mode.
The motor rotational direction can be selected by changing
the setting of function code F02.
 Operational relationship between function code F02 (Operation method) and key
Table 3.3-6 Motor Rotational Direction Specified by F02
Data for
F02
Motor Rotational Direction
0
In the direction commanded by terminal
[FWD] or [REV]
1
Key disabled
(The motor is driven by terminal [FWD]
or [REV] command.)
2 Running forward
3 Running reverse
(Note) The rotational direction of
IEC-compliant motors is opposite to
that of the motor shown here
 For details, refer to Chapter 5 "FUNCTION CODES."
3.3.5 Jogging operation
This section provides the procedure for jogging the motor.
(1) Making the inverter ready to jog with the steps below. (The LED monitor should display jog .)
• Enter Running mode. (See page 3-5)
• Press the + keys simultaneously. The LED monitor displays the jogging frequency for
approximately one second and then returns to
jog again.
• Function codes C20 specify the jogging frequency. Function codes H54 and H55 set
acceleration and deceleration time, respectively. Use these function codes exclusively for the
jogging operation with your needs. Enable them individually according to your needs.
• Using the input terminal command, "Ready for jogging" JOG switches between the normal
operation state and ready-to-jog state.
• Switching between the normal operation state and read-to-jog state with the
+ keys
is possible only when the inverter is stopped.
(2) Jogging the motor.
• Hold down the key during which the motor continues jogging. To decelerate to stop the
motor, release the
key.
(3) Exiting the ready-to-jog state and returning to the normal operation state.
• Press the
+ keys simultaneously.
 For details, refer to the descriptions of function codes E01 to E09 in Chapter 5, Section 5.4.2 "E
codes (Extension terminal functions)."
