Fuji Electric Frenic Mega Series User Manual

11.4 Option
11-110

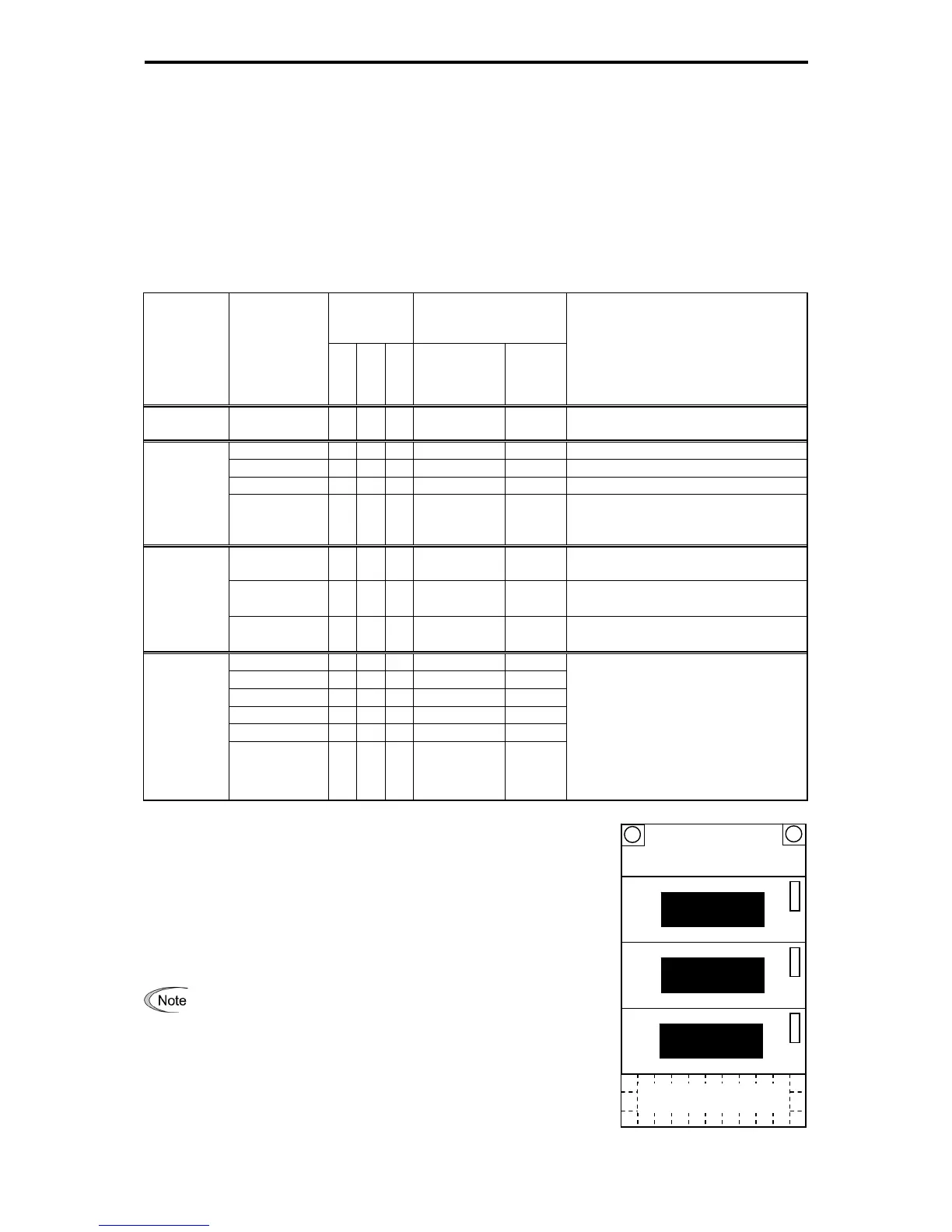

11.4.3 Option cards for operation and communication
[1] About option cards for operation and communication
The table below lists the option card connection ports of FRENIC-MEGA to which various option cards can
be connected and applicable ROM versions.
(Function enhancement or version update in the future may provide new options. For options not listed
below, contact Fuji Electric or visit our website.)
Table 11.4-90
Option card
connection
port
Applicable
FRENIC-MEGA
Type Model name
A-port B-port
C-port
ROM
version
Product
version
Remarks
Relay output OPC-G1-RY { { ¯ 0100 or later *1
Two option cards connectable at a time
to A- and B-ports (4 outputs).
OPC-G1-PG ¯ ¯ { 0100 or later *1
OPC-G1-PG2 ¯ ¯ { 0100 or later *1
OPC-G1-PG22 ¯ *3 { 3510 or later *4
Feedback
OPC-G1-PMP
G
¯ *3 { 0900 or later -
Exclusively designed for MEGA for
synchronous motor driving
(Type: FRNGX1- only)
OPC-G1-DI { { { 0500 or later *2
A single option card connectable at a
time to any one of A-, B- and C-ports.
OPC-G1-DO { { { 0500 or later *2
A single option card connectable at a
time to any one of A-, B- and C-ports.
I/O
OPC-G1-AIO { { { 0700 or later *2
A single option card connectable at a
time to any one of A-, B- and C-ports.
OPC-G1-DEV { { { 0500 or later *2
OPC-G1-TL { ¯ ¯ 0500 or later *2
OPC-G1-COP { ¯ ¯ 1000 or later *5
OPC-G1-PDP { ¯ ¯ 1000 or later *5
OPC-G1-CCL { ¯ ¯ 0500 or later *2
Communica-
tion
OPC-G1-SX { ¯ ¯ 1000 or later *5
Only one of these communications
option cards connectable to the inverter
at a time. (e.g. Connection of both
OPC-G1-DEV and OPC-G1-TL at a
time is not possible.)
When the OPC-G1-SX is connected to
the A-port, the OPC-G1-RY only can be
connected to the B-port.
*1 Applicable independent of the product version.
*2 Applicable to the product version C or later. For versions earlier than C,
it is necessary to check the ROM version.
*3 This card occupies both the B- and C ports and no other options can be
installed in the B-ports.
*4 Applicable to the product version I or later. For versions earlier than I, it
is necessary to check the ROM version.
*5 Applicable to the product version C or later.
Mounting an IP40 kit and NEMA 1 kit (NEMA1-22G1-**) limits the
number of connectable option cards to one (except that two relay
output interface cards (OPC-G1-RY) can be connected at a time).
Figure 11.4-41
C-port
B-port
A-port
Control terminal block
CN6 CN5 CN4
