7.5 Insulation Test
7-9
Chapter 7 MAINTENANCE AND INSPECTION
7.5 Insulation Test
Since the inverter has undergone an insulation test before shipment, avoid performing a Megger test at the
customer's site.
If a Megger test is unavoidable for the main circuit, observe the following instructions; otherwise, the
inverter may be damaged.
A withstand voltage test may also damage the inverter if the test procedure is wrong. When the withstand
voltage test is necessary, consult your Fuji Electric representative.
(1) Megger test of main circuit
1) Use a 500 VDC Megger and shut off the main power supply without fail before measurement.
2) If the test voltage leaks to the control circuit due to wiring, disconnect all the wiring from the control
circuit.
3) Connect the main circuit terminals with a common line as shown in Figure 7.5-1.
4) The Megger test must be limited to across the common line of the main circuit and the ground (
).
5) Value of 5 MΩ or more displayed on the Megger indicates a correct state. (The value is measured on
an inverter alone.)

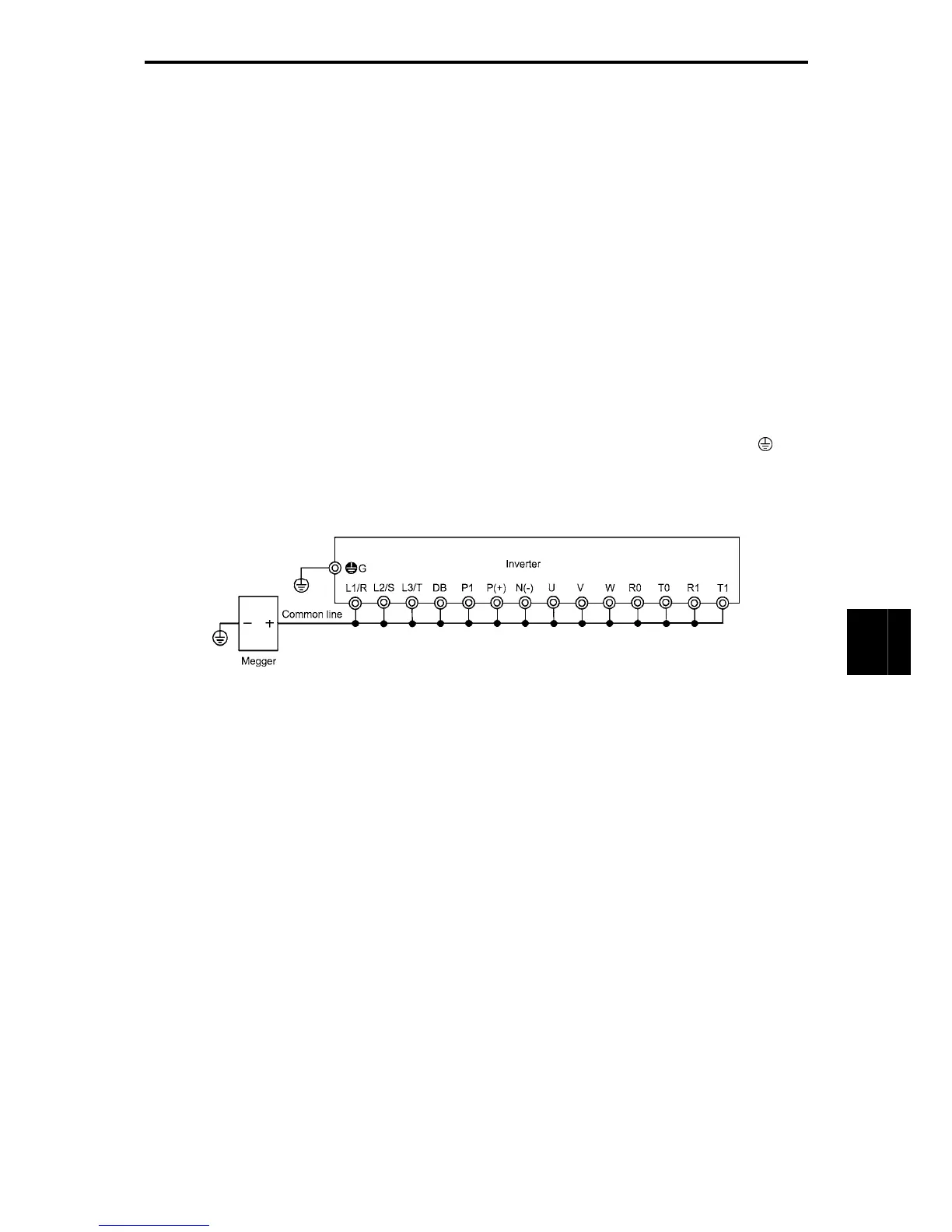

Figure 7.5-1 Main Circuit Terminal Connection for Megger Test
(2) Insulation test of control circuit
Do not perform a Megger test or withstand voltage test for the control circuit. Use a high resistance range
tester for the control circuit.
1) Disconnect all the external wiring from the control circuit terminals.
2) Perform a continuity test to the ground. One MΩ or a larger measurement indicates a correct state.
(3) Insulation test of external main circuit and sequence control circuit
Disconnect all the wiring connected to the inverter so that the test voltage is not applied to the inverter.
