3.4 Programming Mode
3-35
Chapter 3
KEYPAD FUNCTIONS
3.4.6 Reading maintenance information Menu #5 "Maintenance Information"
Menu #5 "Maintenance Information" (
%che
) contains information necessary for performing maintenance
on the inverter.
Figure 3.4-8 shows the menu transition in Menu #5 "Maintenance Information."

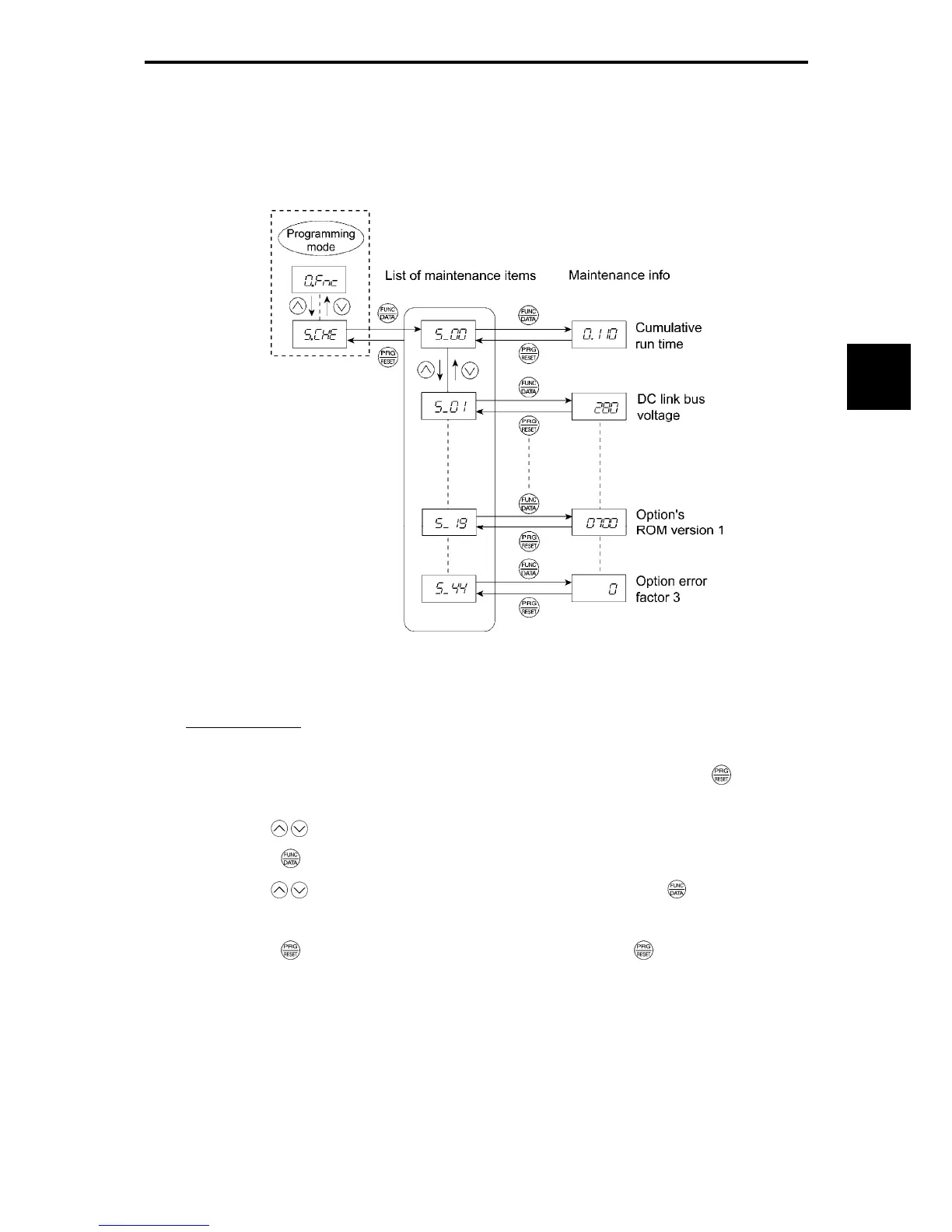

Figure 3.4-8 Menu Transition in Menu #5 "Maintenance Information"
Basic key operation
To view the maintenance information, set function code E52 to "2" (Full-menu mode) beforehand.
(1) Turn the inverter ON. It automatically enters Running mode. In that mode, press the
key to
switch to Programming mode. The function selection menu appears.
(2) Use the / key to display "Maintenance Information" (
%che
).
(3) Press the
key to proceed to the list of maintenance items (e.g.
5_00
).
(4) Use the
/ key to display the desired maintenance item, then press the key.
The data of the corresponding maintenance item appears.
(5) Press the
key to return to the list of maintenance items. Press the key again to return to the
menu.
