12.5 External Dimensions
12-18
12.5 External Dimensions
12.5.1 Basic type and EMC filter built-in type

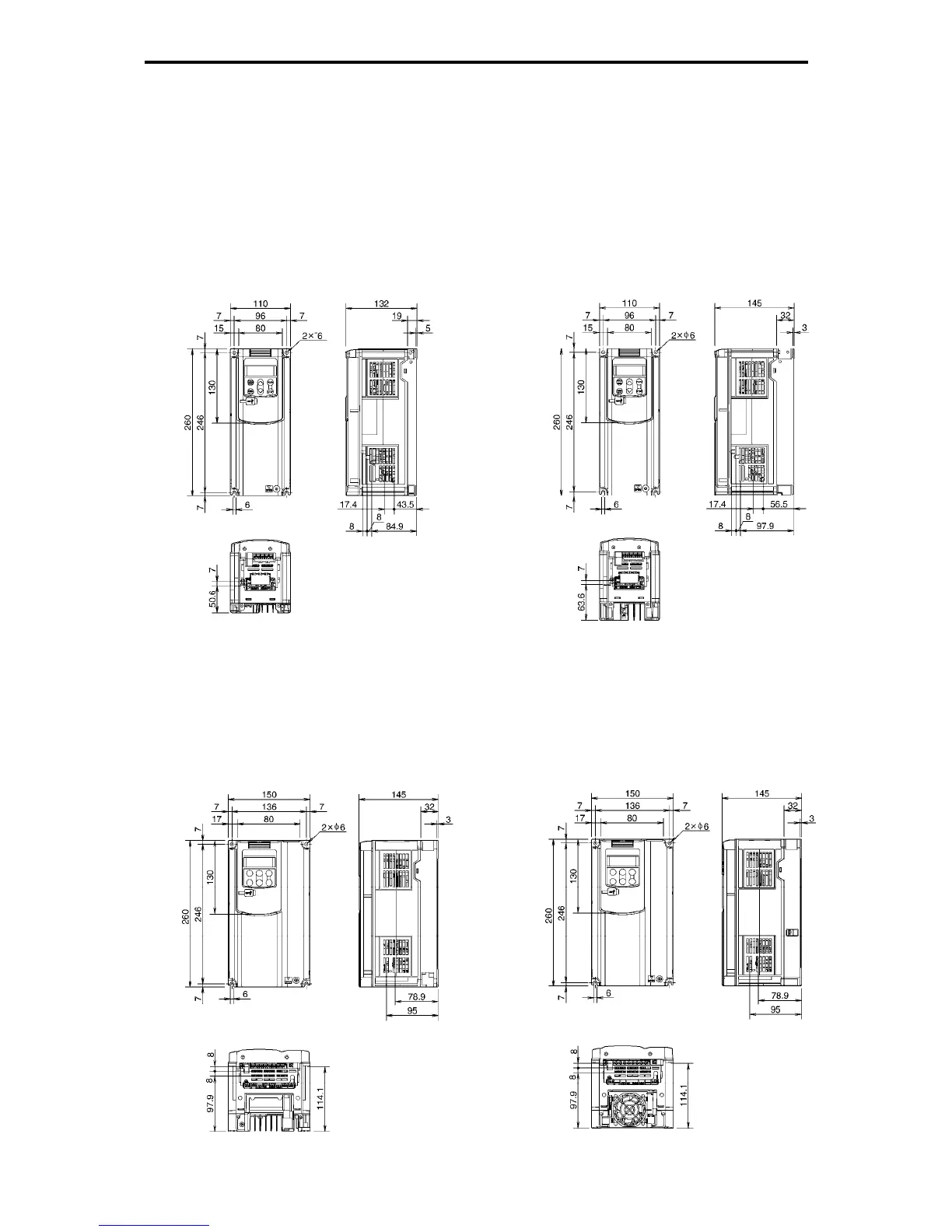

The diagrams below show external dimensions of the FRENIC-MEGA series of inverters according to the
inverter capacity. (Three-phase 200 V/ 400 V class series)
Note: A box (
) in the inverter types replaces an alphabetic letter depending on the enclosure.
: S (Basic type), E (EMC filter built-in type)
Unit: mm
Figure 12.5-1
Figure 12.5-2
Figure 12.5-3 Figure 12.5-4
 FRN0.4G1-2J/4J
 FRN0.75G1-2J/4J
îš„ FRN1.5G1
-2J/4J  FRN2.2G1-2J/4J，FRN3.7G1-2J/4J
