Fuji Electric Frenic Mega Series User Manual

2.2 Wiring
2-3
Chapter 2 INSTALLATION AND WIRING
2.2 Wiring
Route the wiring following the steps below. (The inverter is already installed in the descriptions.)
The inverter type is shown as "FRN***G1-2J/4J" in the tables of this document. The box  replaces an
alphabetic character indicating the type.
2.2.1 Connection diagrams
[1] Running a standard motor

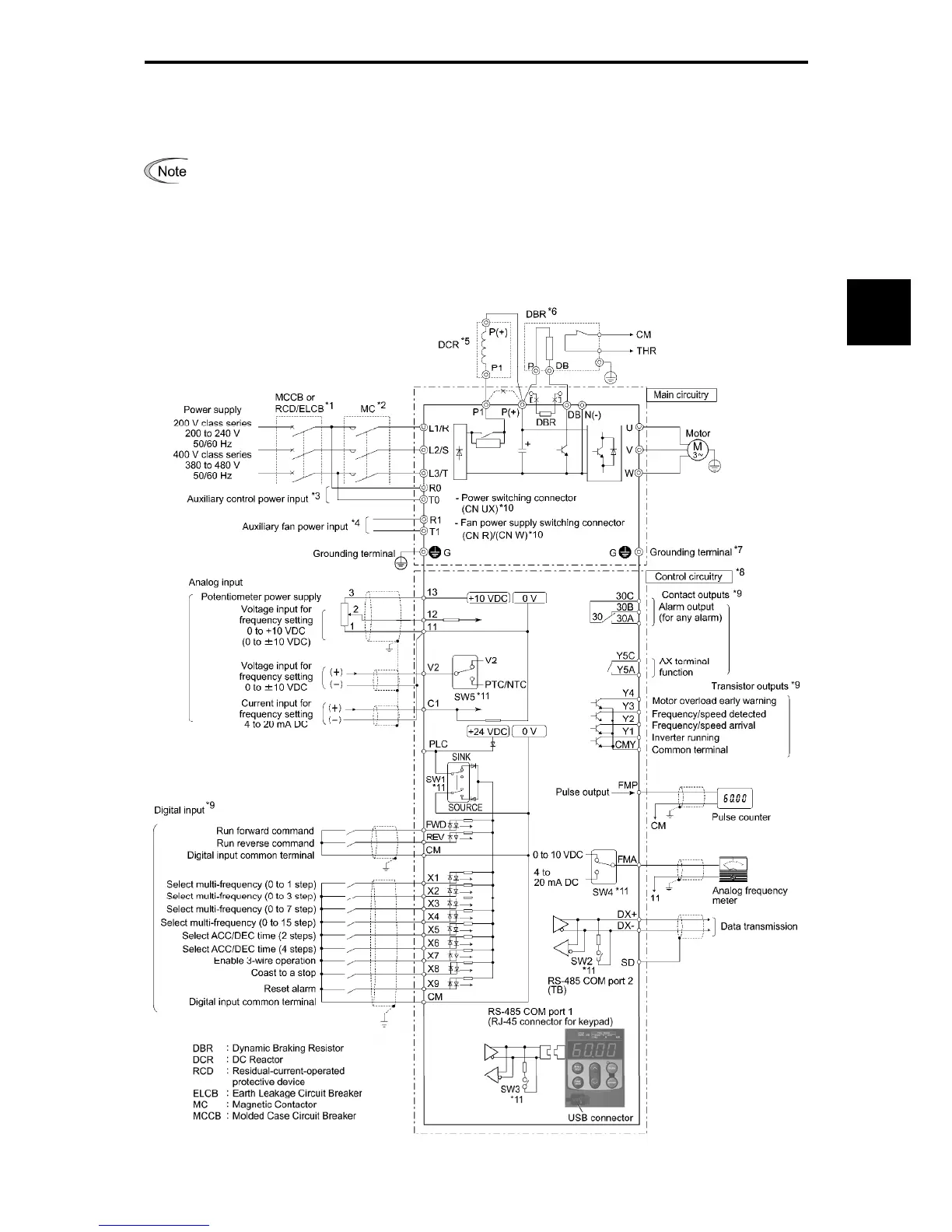

Figure 2.2-1
