9.2 Overview of FRENIC Loader
9-13
Chapter 9 RUNNING THROUGH RS-485 COMMUNICATION

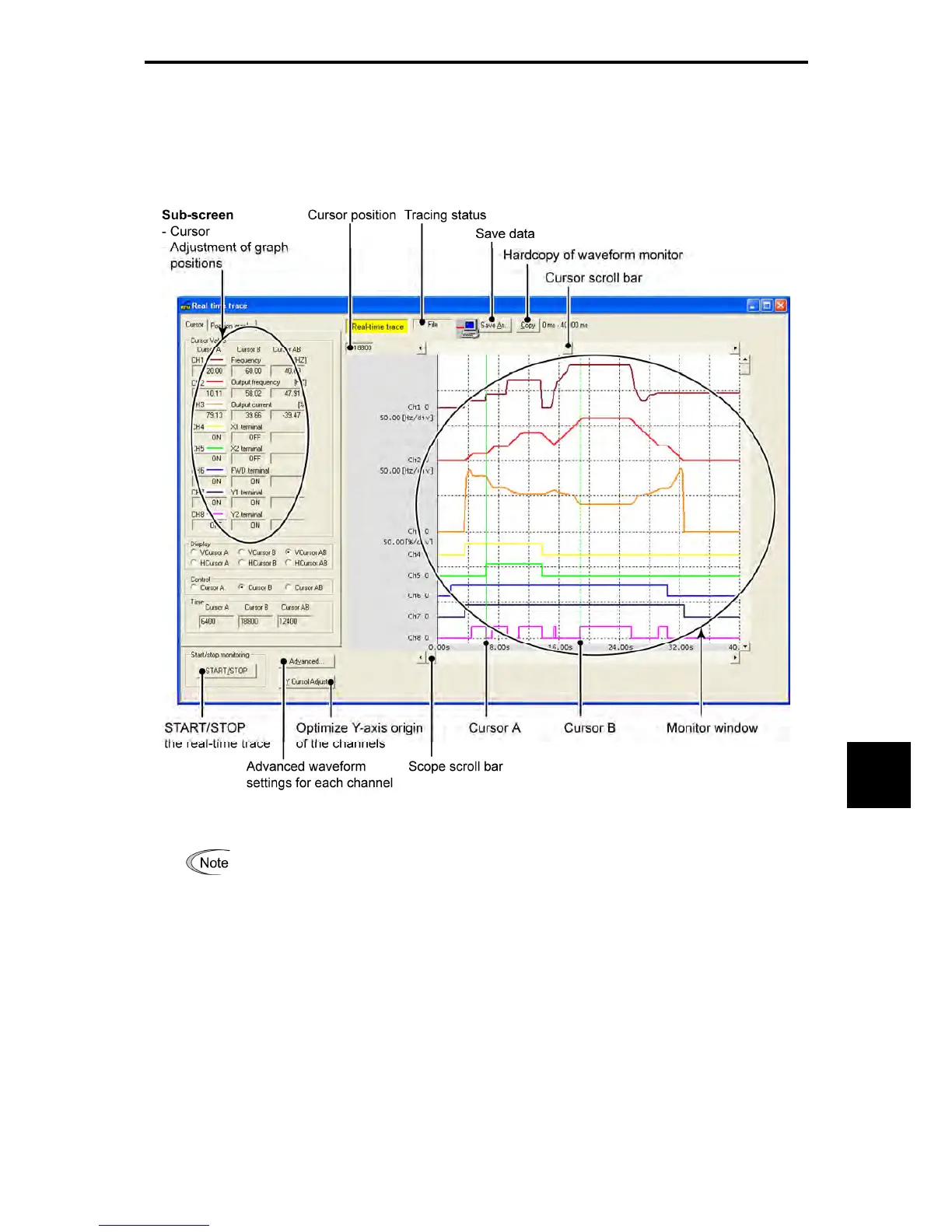

[5] Real-time trace
The real-time trace can fix the sampling interval at 200 ms and monitor up to 4 analog readouts and up to
8 digital signals to display the running status of a selected inverter in real-time waveforms.
(Waveform capturing capability: Max. 15360 samples/channel)
Figure 9.2-3
During the real-time trace in progress you cannot:
• Change the RS-485 station address,
• Change the advanced waveform settings, or
• Scroll the real-time trace screen or move the cursor.
Resizing the real-time trace window automatically changes the waveform monitor size.
To Next Page
