Chapter 10 SELECTING OPTIMAL MOTOR AND INVERTER CAPACITIES
10.1 Selecting Motors and Inverters
When selecting a general-purpose inverter, first select a motor and then inverter as follows:
(1) Key point for selecting a motor: Determine what kind of load machine is to be used, calculate its
moment of inertia, and then select the appropriate motor capacity.
(2) Key point for selecting an inverter: Taking into account the operation requirements (e.g., acceleration
time, deceleration time, and frequency in operation) of the load machine to be driven by the motor
selected in (1) above, calculate the acceleration/deceleration/braking torque.
This section describes the selection procedure for (1) and (2) above. First, it explains the output torque
characteristics obtained by using the motor driven by the inverter (FRENIC-MEGA).
10.1.1 Output torque characteristics
Figures 10.1-1 and 10.1-2 graph the output torque characteristics of motors at the rated output frequency
individually for 50 Hz and 60 Hz base. The horizontal and vertical axes show the output frequency and
output torque (%), respectively. Curves (a) through (f) depend on the running conditions.

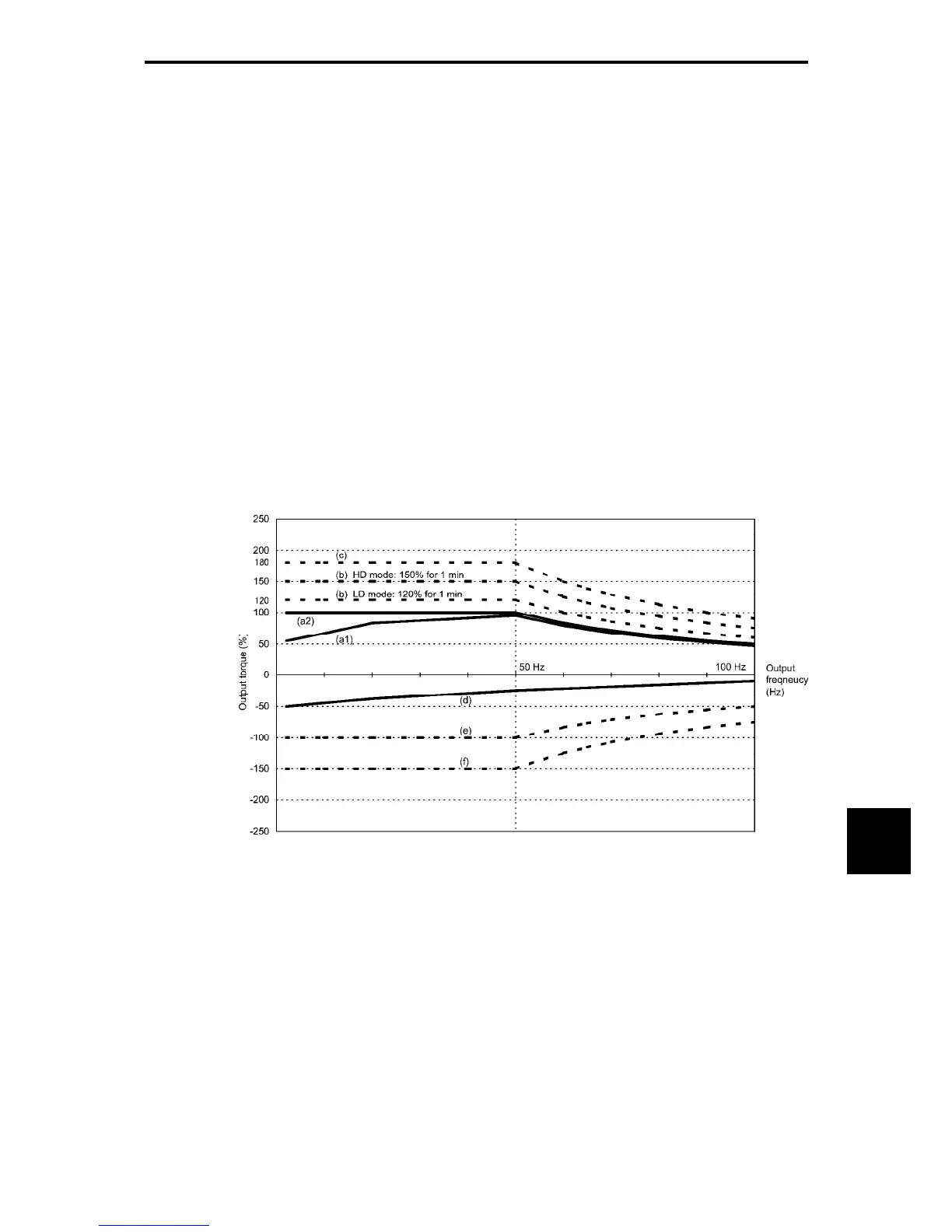

Figure 10.1-1 Output Torque Characteristics (Base frequency: 50Hz)
