1.5 Recommended Configuration
1-21
Chapter 1 BEFORE USE
1.5 Recommended Configuration
To control a motor with an inverter correctly, you should consider the rated capacity of both the motor and
the inverter and ensure that the combination matches the specifications of the machine or system to be
used.

Refer to Chapter 10, "SELECTING OPTIMAL MOTOR AND INVERTER CAPACITIES" for details.
After selecting the rated capacities, select appropriate peripheral equipment for the inverter, then connect
them to the inverter.

Refer to Chapter 11, "SELECTING PERIPHERAL EQUIPMENT" for details on the selection of
peripheral equipment.

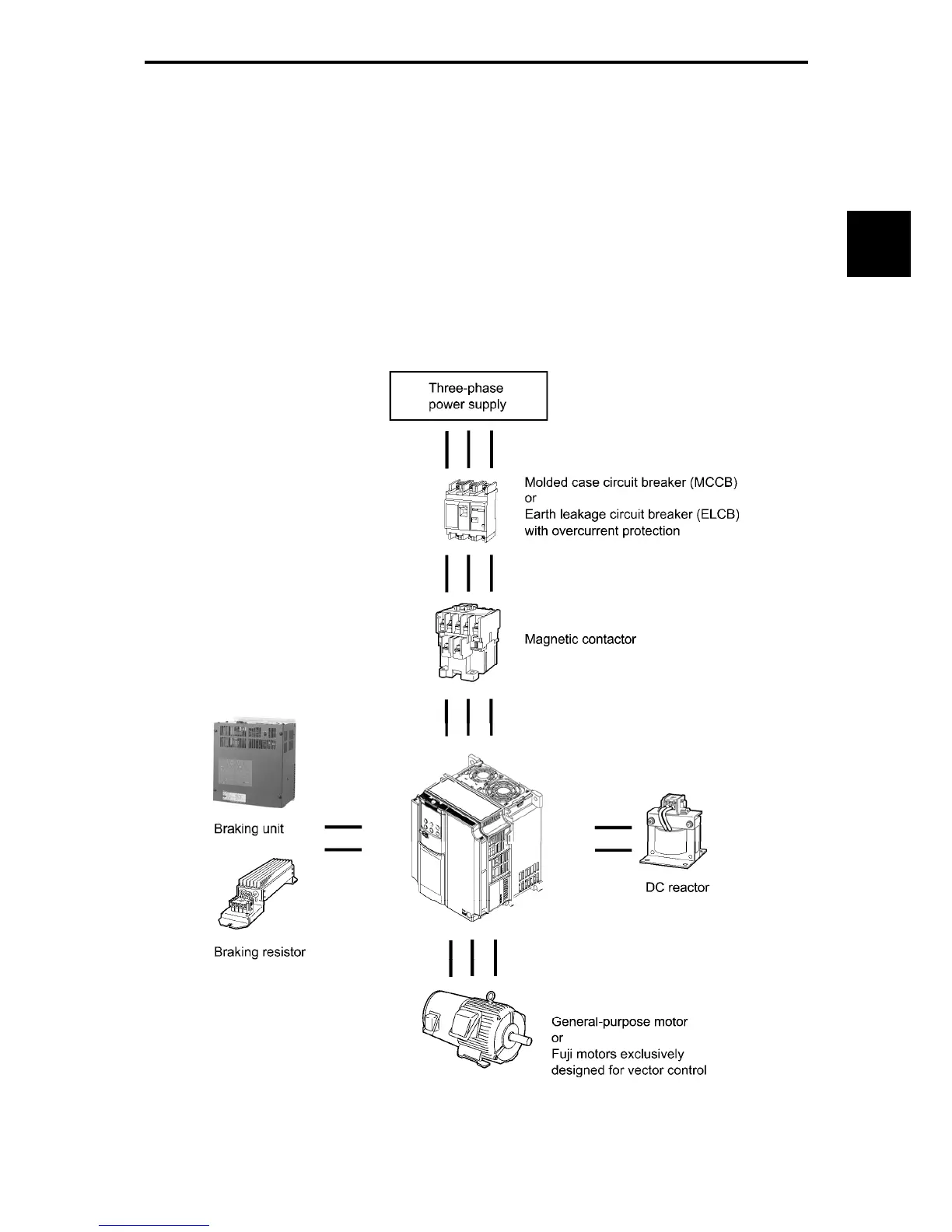

Figure 1.5-1 shows the recommended configuration for an inverter and peripheral equipment.
Figure 1.5-1 Recommended Confirmation Diagram
55 kW or below: Provided as an option
75 kW or above: Provided as standard
* An inverter with a capacity of 55 kW o
