HEIDENHAIN QUADRA-CHEK 2000 User Manual

Quick Start | Conducting a measurement
Measuring a straight line
A straight line is measured as the second reference edge.
Select Line in the geometry palette
Position the first measuring point on the reference edge
Tap Enter in the Inspector
A new feature is displayed in the feature list
Distribute the measuring points along the entire
length of the edge. This minimizes the angular error.
Position the second measuring point on the reference edge
Tap Enter in the Inspector
Depending on the configuration, you can also acquire
additional measuring points for the feature. In this
way you increase the accuracy.
Tap Finish in the new feature
The straight line is displayed in the feature list
The measurement result preview is now displayed

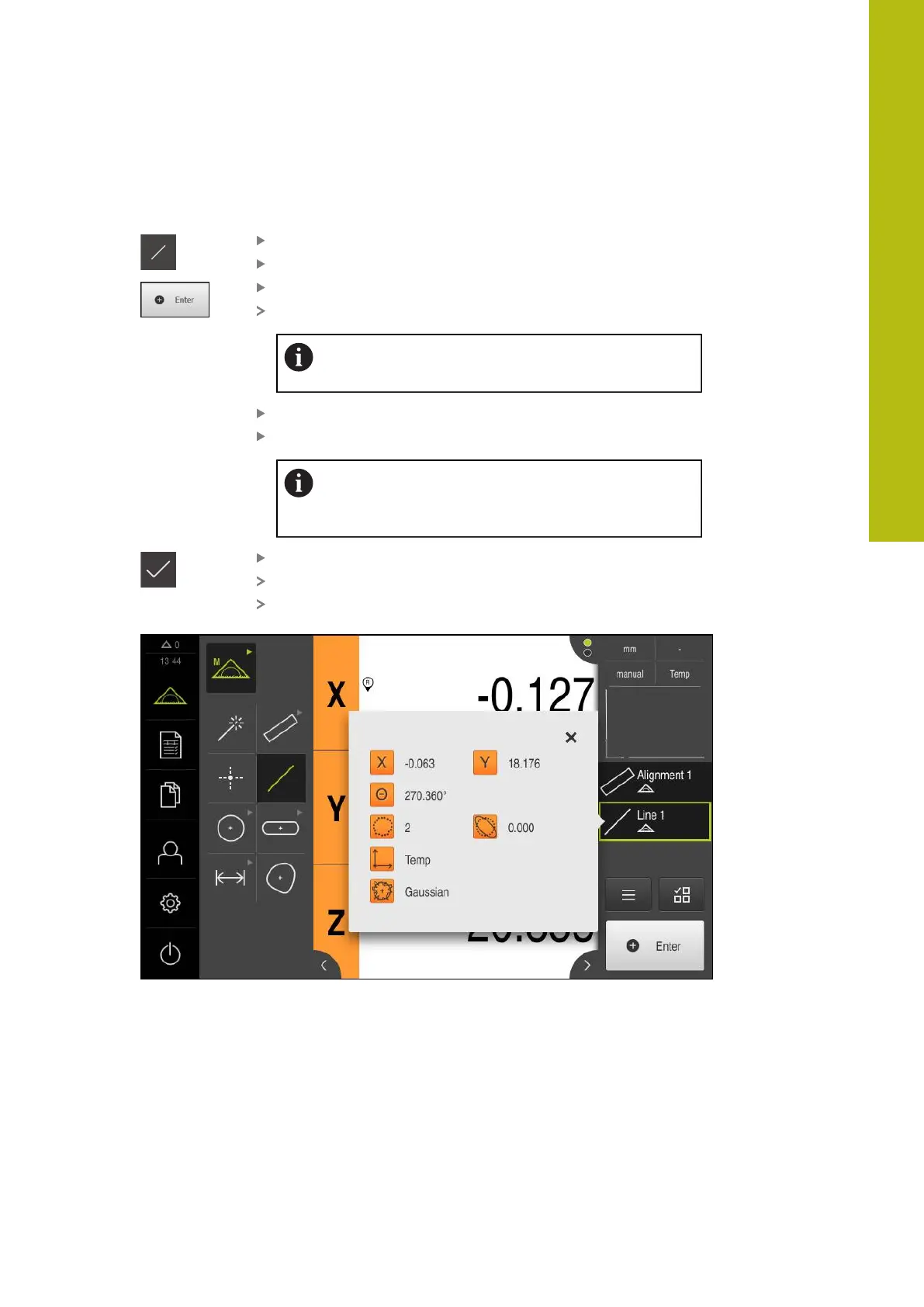

Figure 35: Line feature in the feature list with Measurement result preview
