HEIDENHAIN QUADRA-CHEK 2000 User Manual

Mounting | Assembly of the product
4
4.2.1 Mounting on Multi-Pos stand
Use the provided M4 x 8 ISO 14581 countersunk head screws (black) to fasten
the stand to the threaded holes on the rear panel
Comply with the permissible tightening torque of 2.6 Nm
Using two M5 screws, you can also optionally screw the stand to a supporting
surface from the bottom
Adjust the desired angle of inclination
To fix the stand: Tighten the T25 screw
Comply with the tightening torque for screw T25
Recommended tightening torque: 5.0 Nm
Maximum permissible tightening torque: 15.0 Nm
Route the cable from behind through the two supports of the stand and then
through the lateral openings to the connections

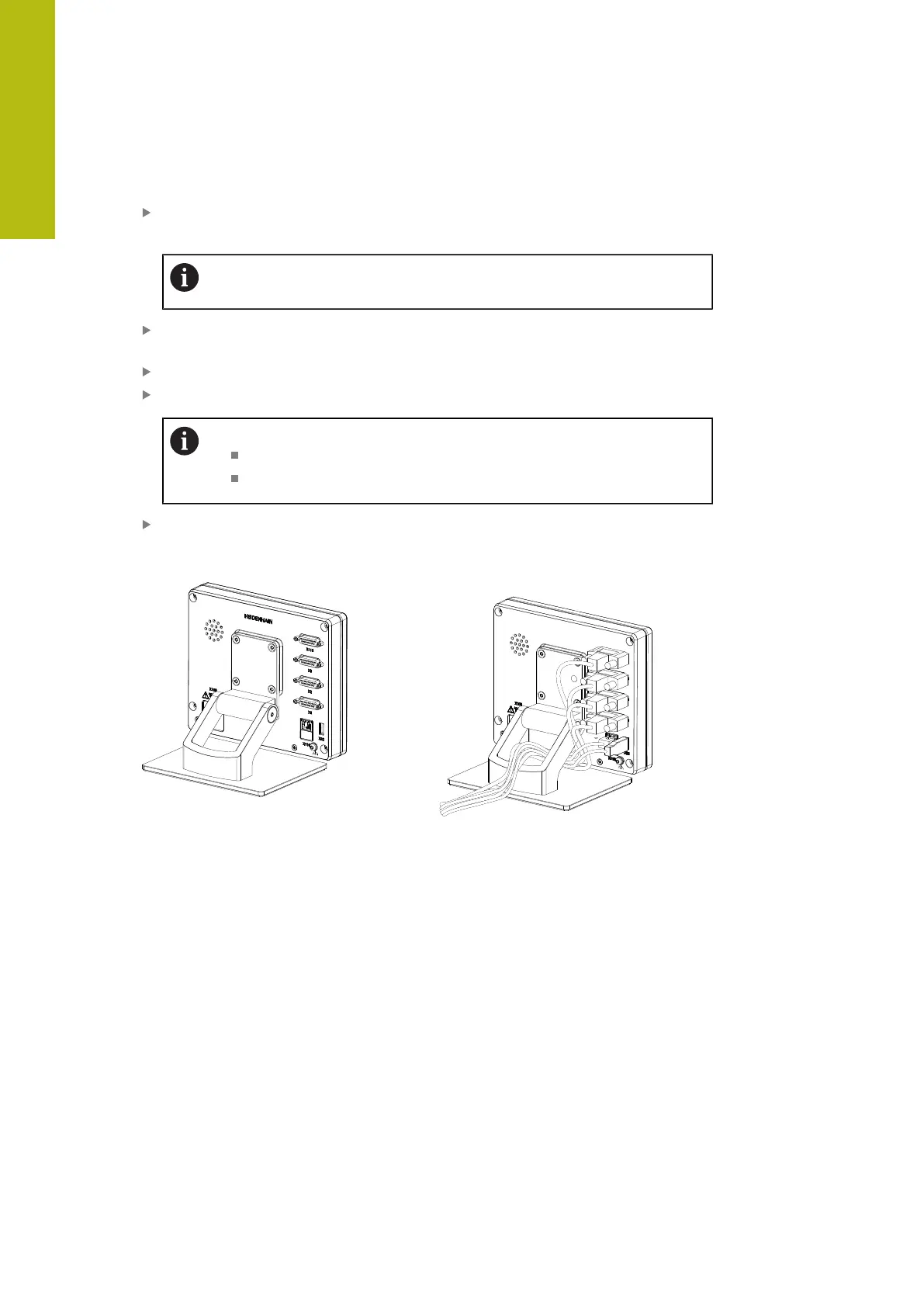

Figure 4: Product mounted on Multi-Pos
stand Figure 5: Cable routing on Multi-Pos stand
Further information: "Product dimensions with Multi-Pos stand", Page 411
42
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
