HEIDENHAIN QUADRA-CHEK 2000 User Manual

Measurement evaluation | Defining tolerances
Display of toleranced features

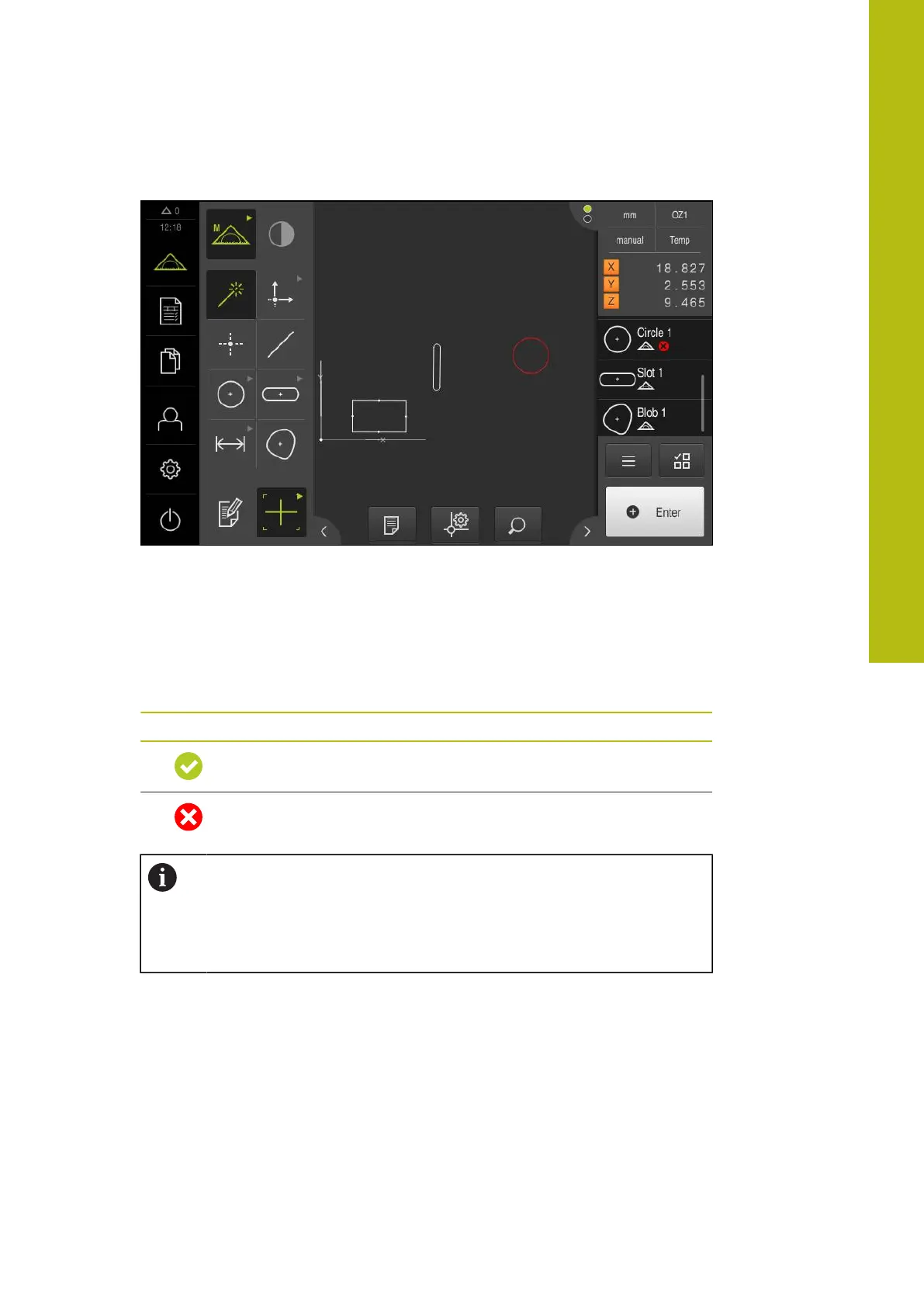

Figure 69: Toleranced features in the features view of the workspace and feature list of the
Inspector
The features preview in the workspace displays a feature in red if at least one of its
tolerance limits has been exceeded. The features must not be selected, because
selected elements are displayed in green independently of the tolerance check.
The results of the tolerance check are indicated by symbols in the feature list and
in the Tolerances tab.
Symbol Meaning
The activated tolerances of the feature are met.
One or more activated tolerances of the feature are exceeded.
The symbol does not appear until all of the required fields have been
populated and the tolerance check was able to be conducted.
Example: During the configuration of the concentricity tolerance, the
reference feature must be selected so that the tolerance check can be
conducted.
11
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
283
