Basic operation | User interface
6
Control Function
Settings
Settings of the product, such as setting up users, configur-
ing sensors or updating the firmware
Further information: "Settings menu ", Page 73
Switch-off
Shutdown of the operating system or activation of power-
saving mode
Further information: "Switch-off menu", Page 74
6.8.3 Measure menu
Activation
Tap Measure in the main menu
The user interface for measuring, constructing, and defining
is displayed
Measure menu without software option
1
2 3
4

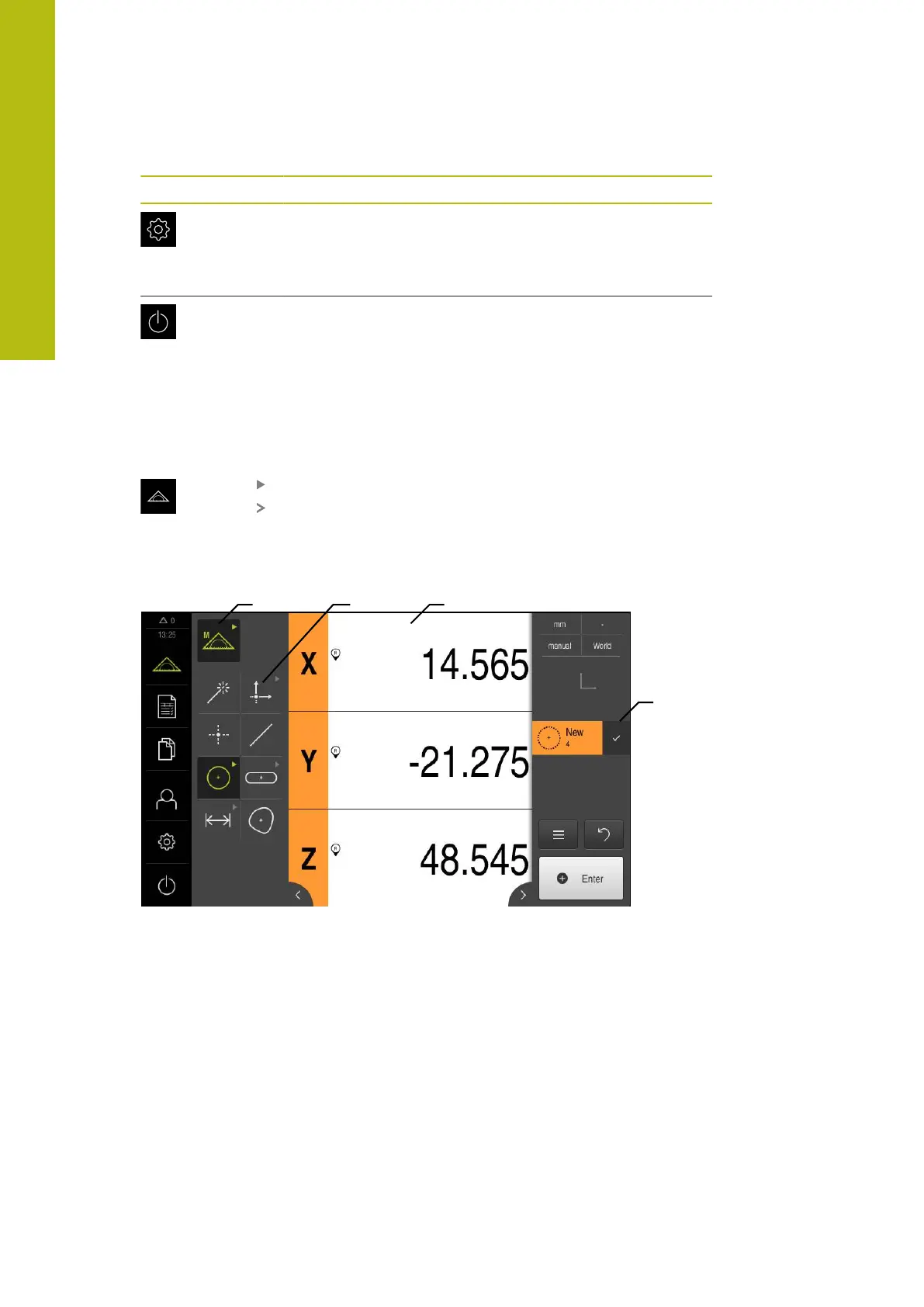

Figure 12: Measure menu without software option
1
The function palette provides functions for manual measuring and defining. The
selected function is displayed as an active operating element.
2
The geometry palette provides all geometries for manual measuring,
constructing and defining. The geometries are partially combined into
geometry groups. The selected geometry is displayed as an active feature. The
geometries available on the geometry palette depend on the selected function.
3
The workspace displays the current position of the measuring plate or the
features view (graphical representation of the features), for example.
4
The Inspector provides the quick access menu, the position preview or features
preview, and the feature list or program step list. The feature list contains the
features that have been measured, constructed, or defined.
66
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
