6.13.2 Selecting or deselecting features
To select a feature, tap it in the features view
The selected feature is displayed in green in the features view and in the
feature list
To add more features to the selection, tap them
To deselect a feature, tap it again
You can construct a new feature from the selected features, e.g. by
moving or copying them.
Further information: "Constructing features", Page 232
6.13.3 Editing annotations
You can add an annotation to every feature in the features view, e.g. measurement
information or informational texts.
1
2

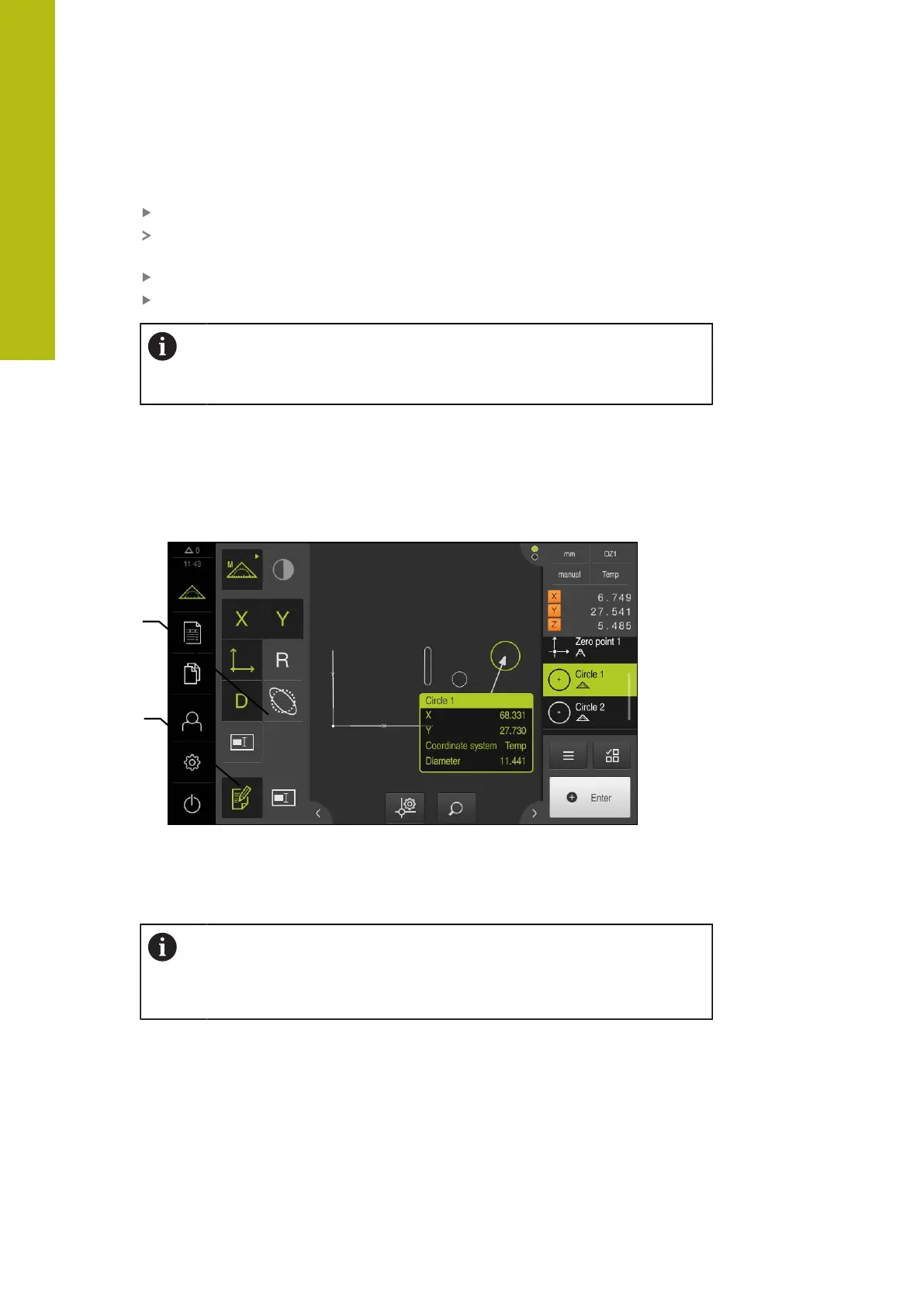

Figure 21: Feature with annotations in the features view
1
Edit annotations operating element
2
Operating elements for adding remarks to one or more features
The operating elements for adding annotations are displayed if the edit
mode for annotations is activated and if at least one feature is selected
in the feature list. The available operating elements depend on the
geometry type of the selected feature.
