Quick Start | Conducting a measurement
9
Measuring a blob
A minimum of three measuring points is required to measure a blob.
Select Blob in the geometry palette
Move to the first measuring point on the contour of the blob
Tap Enter in the Inspector
A new feature is displayed in the feature list
Move to the next measuring point on the contour of the blob
Distribute the measuring points as evenly as possible
along the contour of the feature.
Tap Enter in the Inspector
To acquire more measuring points, repeat these steps
Tap Finish in the new feature
The blob is displayed in the feature list
The measurement result preview is now displayed

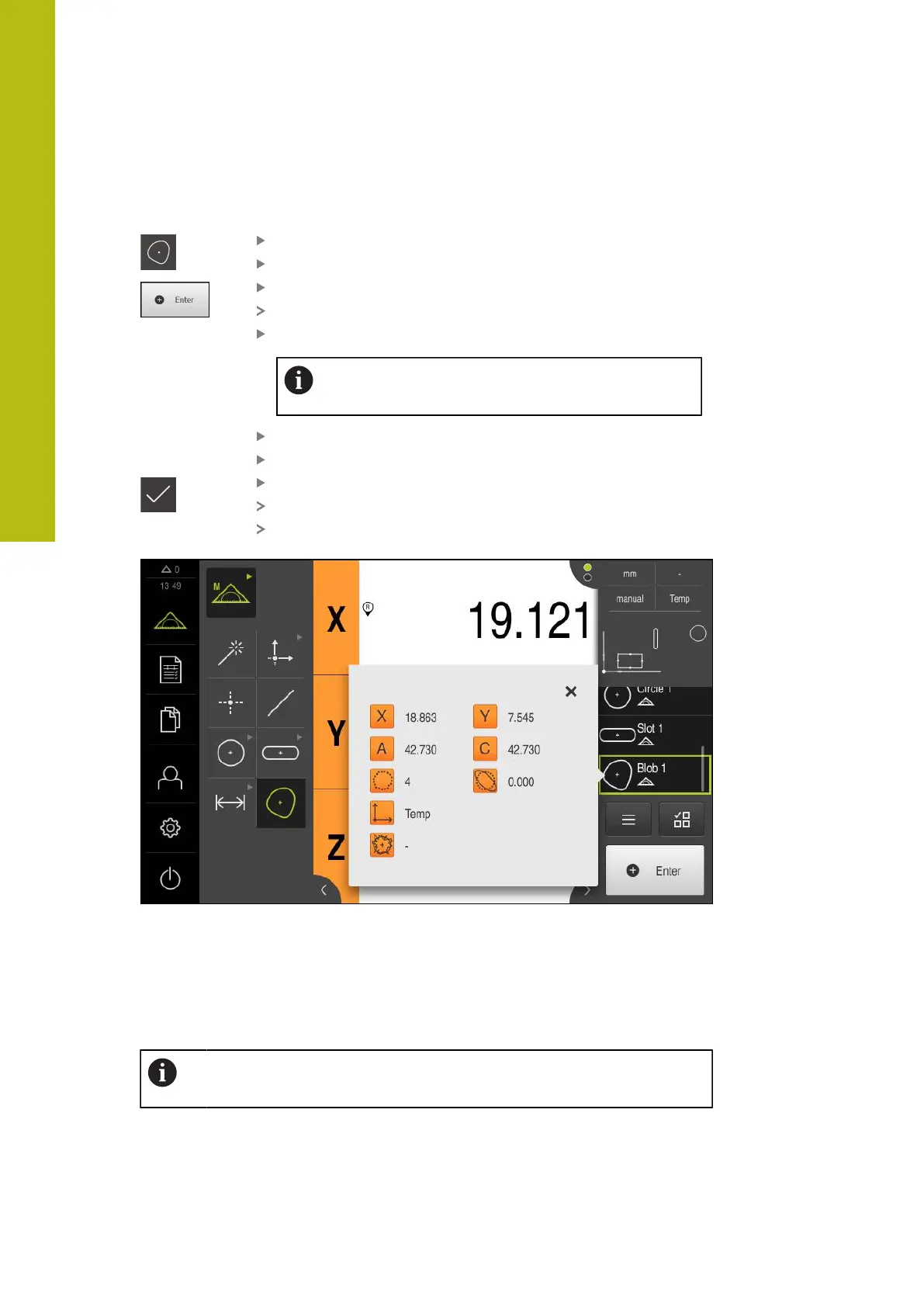

Figure 40: Blob feature in the feature list with Measurement result preview
9.3.3 Measuring with an OED sensor
For the measurement of edges and contours with an OED sensor, various
measuring tools are available to you for the acquisition of measuring points.
Further information: "Overview of the OED measuring tools", Page 76
The measurements illustrated here are described in detail in the
Measurement chapter.
Further information: "Measuring", Page 213
190
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
