Quick Start | Conducting a measurement
Measuring a slot
A minimum of five measuring points is required to measure a slot. Place at least
two measuring points on the first long side, one measuring point on the second
long side, and one measuring point on each arc of the slot.
Select Measure Magic in the geometry palette
or
Select Slot in the geometry palette
Move to the first measuring point on the contour of the slot
Tap Enter in the Inspector
A new feature is displayed in the feature list
Move to the next measuring point on the contour of the slot
Distribute the measuring points along the entire
length of the first long side, if possible.
Tap Enter in the Inspector
To acquire more measuring points, repeat these steps
Tap Finish in the new feature
The slot is displayed in the feature list
The measurement result preview appears

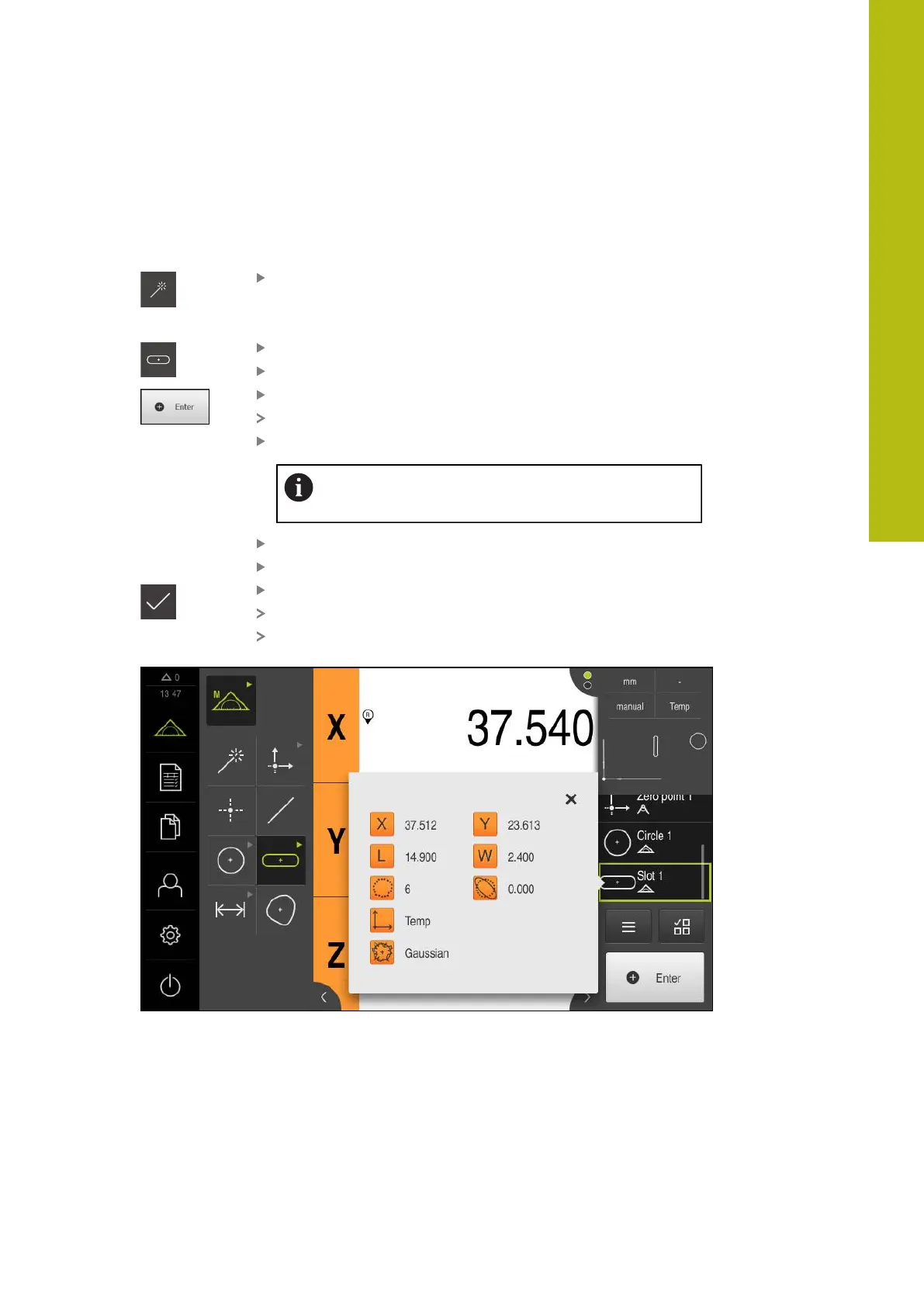

Figure 39: Slot feature in the feature list with Measurement result preview
9
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
189
