Mounting | Assembly of the product
Mounting on Duo-Pos stand
You can fasten the Duo-Pos stand to the product at a 20° or 45° angle.
If you screw the Duo-Pos stand into the product at a 45° angle, you
must attach the product at the upper end of the mounting slots. Use a
power cable cable with an angled connector.
Use the provided M4 x 8 ISO 7380 hexagon socket screws to fasten the stand
to the lower threaded holes on the rear panel
Comply with the permissible tightening torque of 2.6 Nm
Using the mounting slots (width = 4.5 mm), screw the stand to a supporting
surface
or
Set up the device freely at the desired location
Route the cable from behind through the two supports of the stand and then
through the lateral openings to the connections

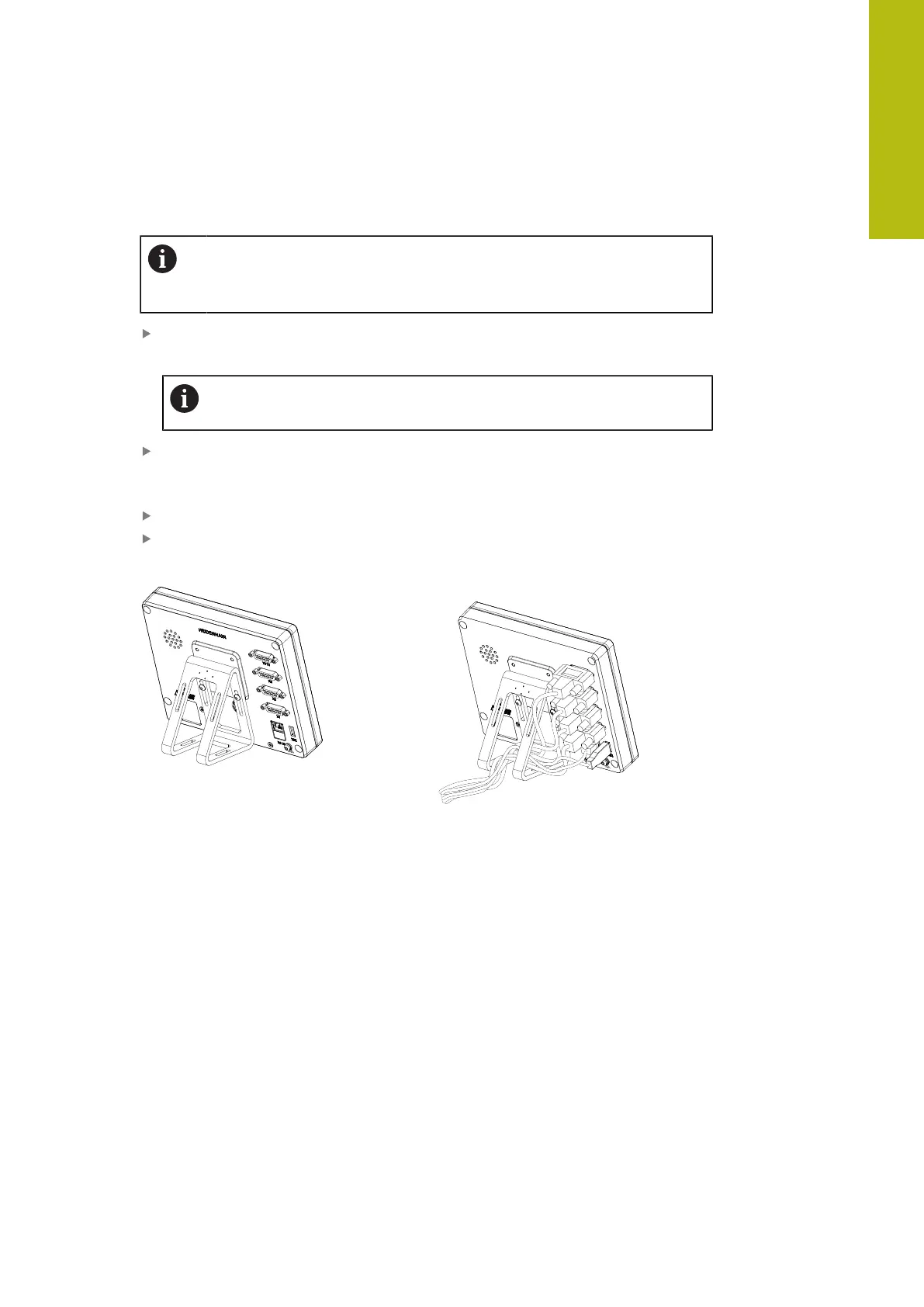

Figure 2: Product mounted on Duo-Pos
stand Figure 3: Cable routing on Duo-Pos stand
Further information: "Product dimensions with Duo-Pos stand", Page 411
4
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
41
