Quick Start | Displaying and editing the measurement results
9.4.1 Renaming a feature
Drag the feature from the feature list into the workspace
The Details dialog appears with the Overview tab selected
Tap the input field containing the current name
Enter a new name for the feature
Confirm entry with RET
The new name is displayed in the feature list
Tap Close to close the dialog
9.4.2
Selecting the Fitting algorithm
You can adjust the fitting algorithm depending on the measured feature. The
Gaussian fitting algorithm is used by default.
Further information: "Fitting algorithm", Page 278
Drag a feature, e.g., a Circle, from the features list into the
workspace
The Details dialog appears with the Overview tab selected
The fitting algorithm used is shown in the Fitting algorithm
drop-down list
In the Fitting algorithm drop-down list, select the desired
fitting algorithm (e.g., Min. circumscribed)
The feature is displayed according to the selected fitting
algorithm

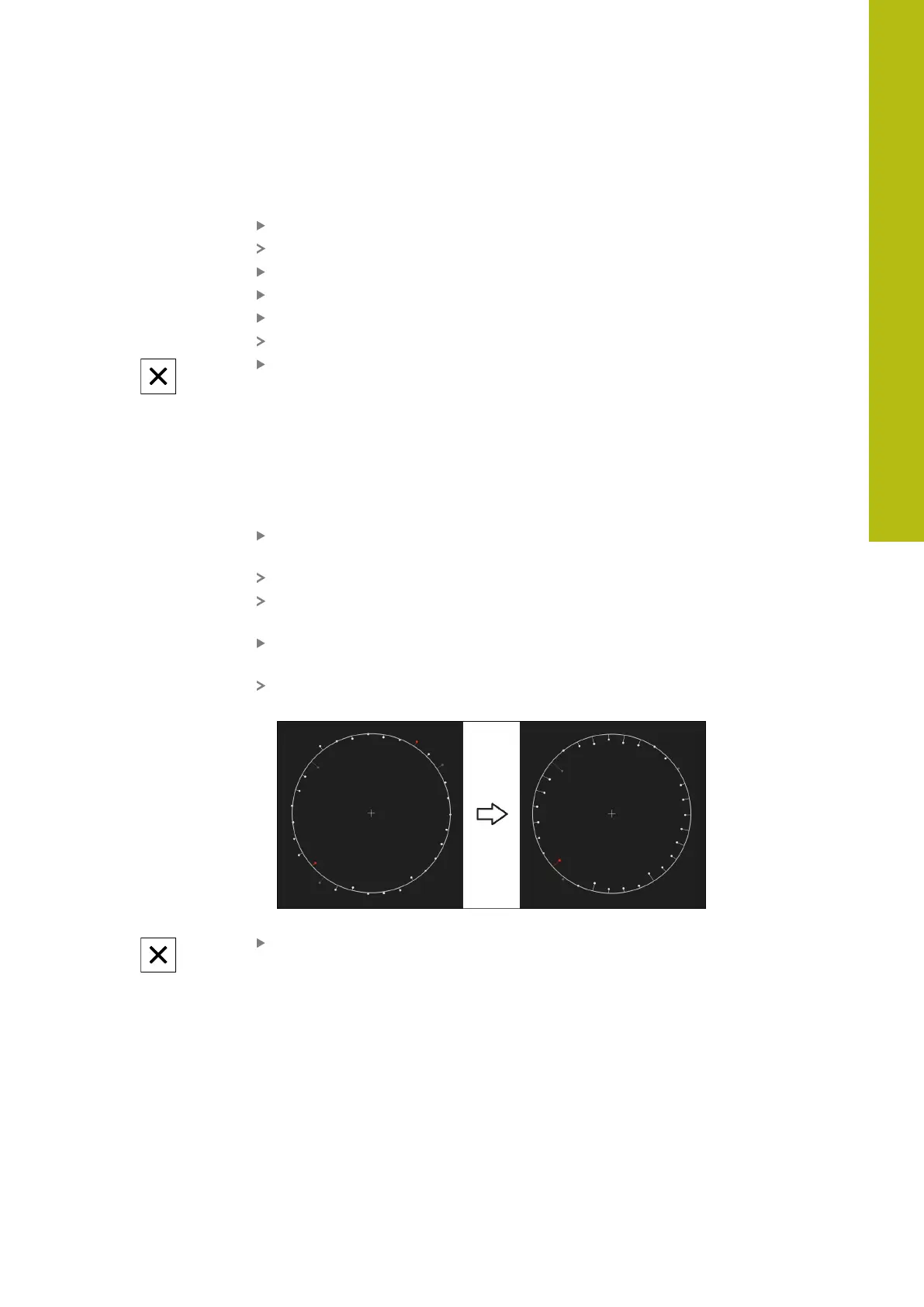

Figure 50: Circle feature with new fitting algorithm
Tap Close to close the dialog
9
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
201
