Quick Start | Conducting a measurement
9

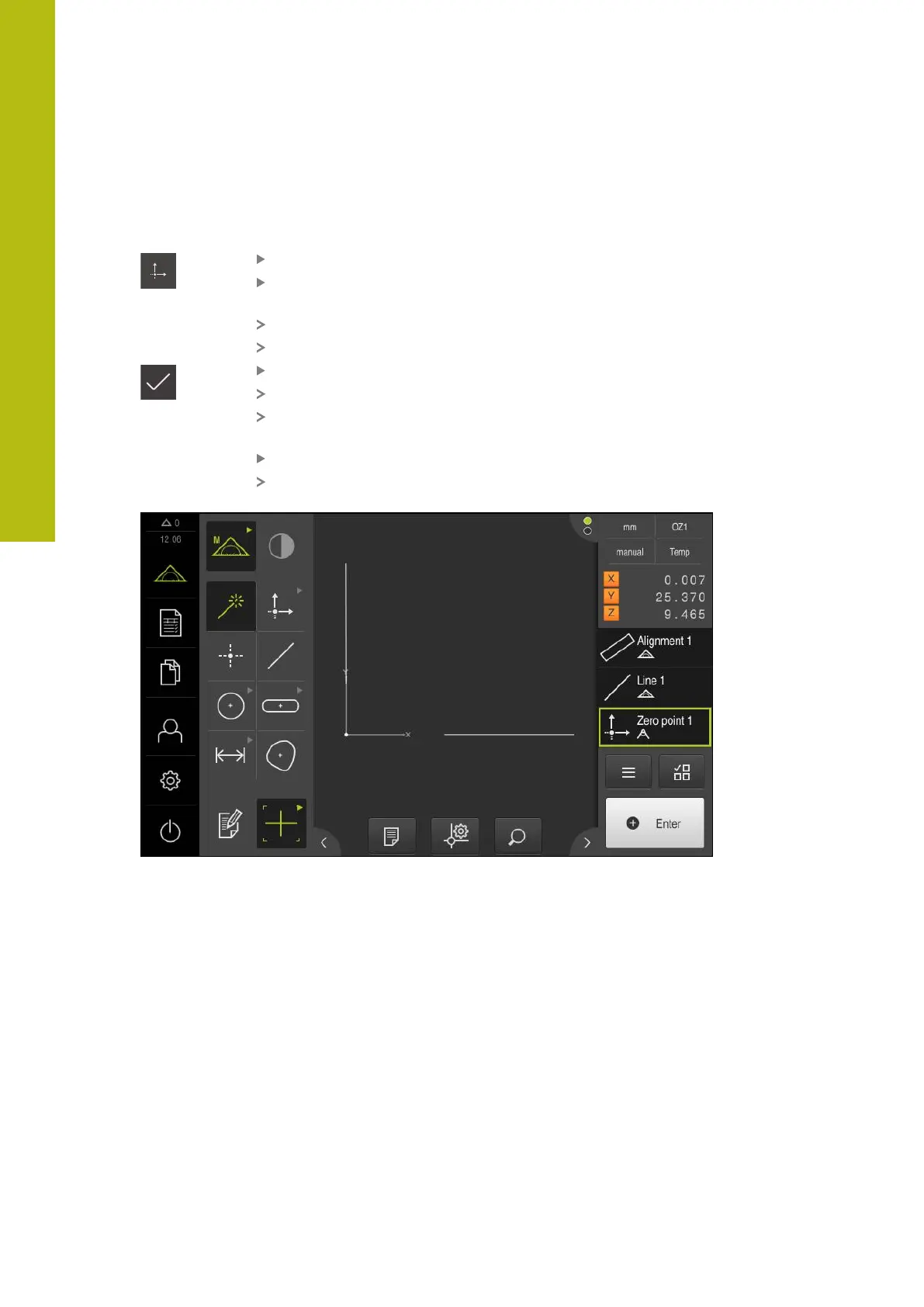

Constructing the zero point
Construct the zero point at the point of intersection between the alignment and
the straight line.
Select Zero point in the geometry palette
Select the Alignment and Line features in the Inspector or in
the features view
The selected features are displayed in green
A new feature is displayed in the feature list
Tap Finish in the new feature
The zero point is displayed in the feature list
The workpiece coordinate system for the measured object
has been determined
Tap Features preview
The coordinate system is shown in the workspace
Figure 44: Workspace with zero point displayed in the coordinate system
194
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019

HEIDENHAIN QUADRA-CHEK 2000 Specifications

General

Resolution	0.1 µm
Input Voltage	100-240 V AC
Display	Color touchscreen
Measurement Range	200 mm
Interfaces	USB, Ethernet
Power Supply	50 to 60 Hz
Weight	6 kg

Summary

Safety

General safety precautions

General safety rules and precautions for operating electrical equipment.

Intended use

Defines the product's intended use in commercial and industrial metrology applications.

Personnel qualification

Basic operation

QUADRA-CHEK 2000 – switch-on and switch-off

User login and logout

Commissioning

Steps for commissioning

Detailed breakdown of commissioning steps including basic settings and axis configuration.

Setup

Single steps for setup

Step-by-step guide for basic settings, sensor configuration, and application setup.

Quick Start

Displaying and editing the measurement results

Measuring

Acquiring measuring points

Conducting a measurement

Step-by-step guide for measurements, including object alignment and feature acquisition.

Measurement evaluation

Defining tolerances

Describes available tolerances and how to configure and activate them for features.

Programming

Settings

Sensors

Features

Service and maintenance

Updating the firmware

Procedures for importing new versions of the product's operating system.

What to do if ...

System or power failure

Actions to take in case of system or power failures, including firmware restoration.

Troubleshooting

Guidance on handling faults not covered in the troubleshooting table.
