HEIDENHAIN QUADRA-CHEK 2000 User Manual

Programming | Using the program control
12
12.3.3 Closing the program control
If no measuring program is currently being executed or edited, you can close the
program control.
Tap Close to close the program control
12.4 Working with the positioning aid
During positioning to the next nominal position, the product assists you by
displaying a graphic positioning aid ("traversing to zero"). A scale is shown
underneath each axis you traverse to zero. The graphic positioning aid is a small
square that symbolizes the target position of the measuring point.
1
2
3

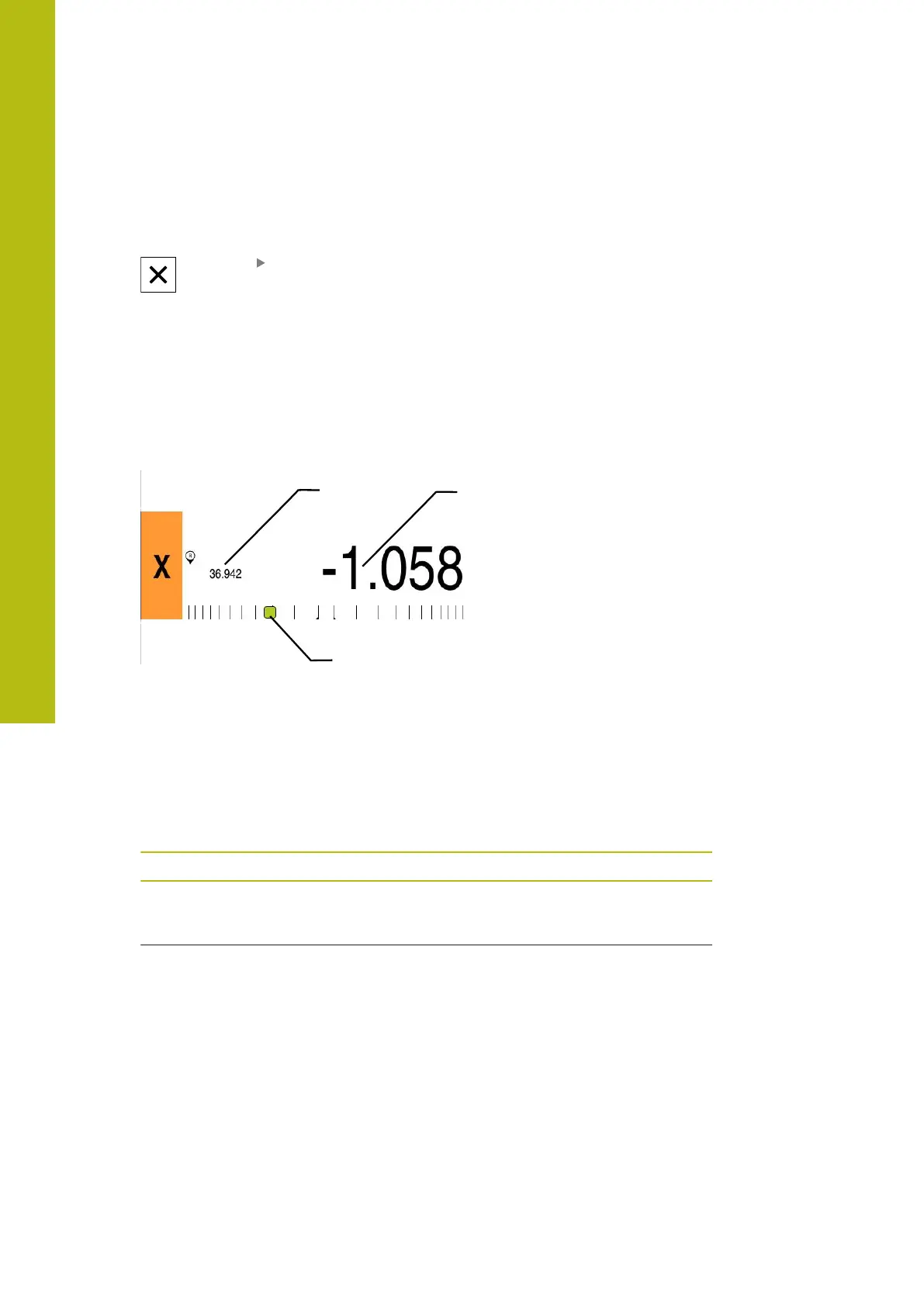

Figure 87: Distance to go with position view with
graphic positioning aid
1
Actual value
2
Distance-to-go
3
Positioning aid
The positioning aid moves across the measuring scale when the target position of
the tool center measuring point is located within a range of ± 5 mm of the nominal
position. The color also changes in the following way:
Display of positioning aid Meaning
Red Target position of the tool center measur-
ing point is moving away from the nominal
positions
Green Target position of the tool center measuring
point is moving toward the nominal position
316
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
