Quick Start | Conducting a measurement
Measuring a slot
A minimum of five measuring points is required in order to measure a slot.
To measure point acquisition, you can use the Auto OED measuring tool, for
example. Place at least two measuring points on the first long side and at least
one measuring point on the second long side, and on each arc of the slot.
Select Slot in the geometry palette
Select Auto OED in the tool palette
Cross over the edge of the slot multiple times with the OED
sensor
A new feature is displayed in the feature list
A new measuring point is added each time the edge is
traversed
Distribute the measuring points along the entire
length of the first long side, if possible.
Tap Finish in the new feature
The slot is displayed in the feature list
The measurement result preview is now displayed

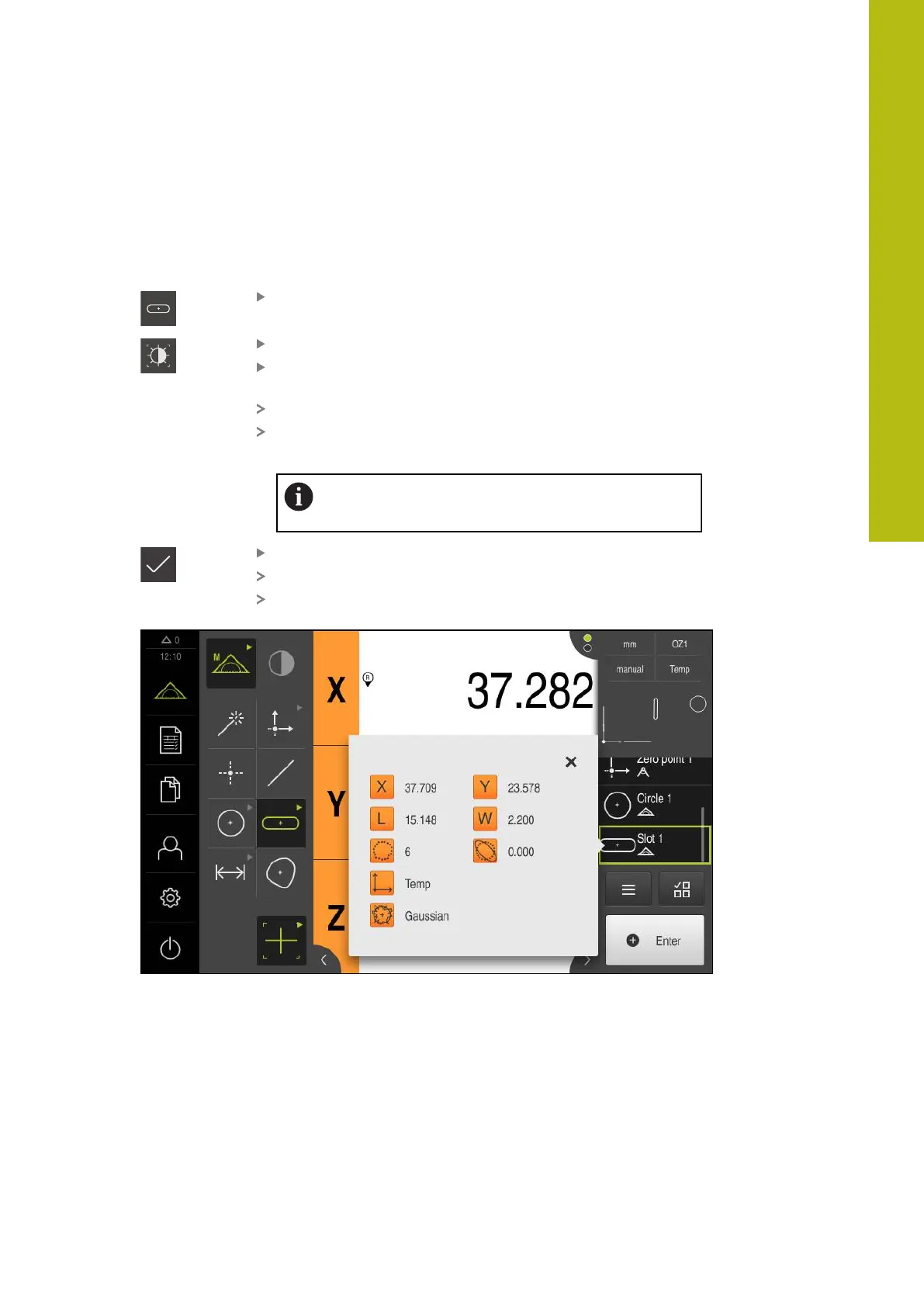

Figure 47: Slot feature in the feature list with Measurement result preview
9
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
197
