HEIDENHAIN QUADRA-CHEK 2000 User Manual

Basic operation | Manual measuring function
Configuring OED measuring tools
In the Measuring tool settings dialog, you can adjust the contrast settings and
the OED offset settings using a teach sequence. These settings apply to all OED
measuring tools, regardless of which measuring tool was selected for the teach
sequence. All changes are transferred to the Settings menu.

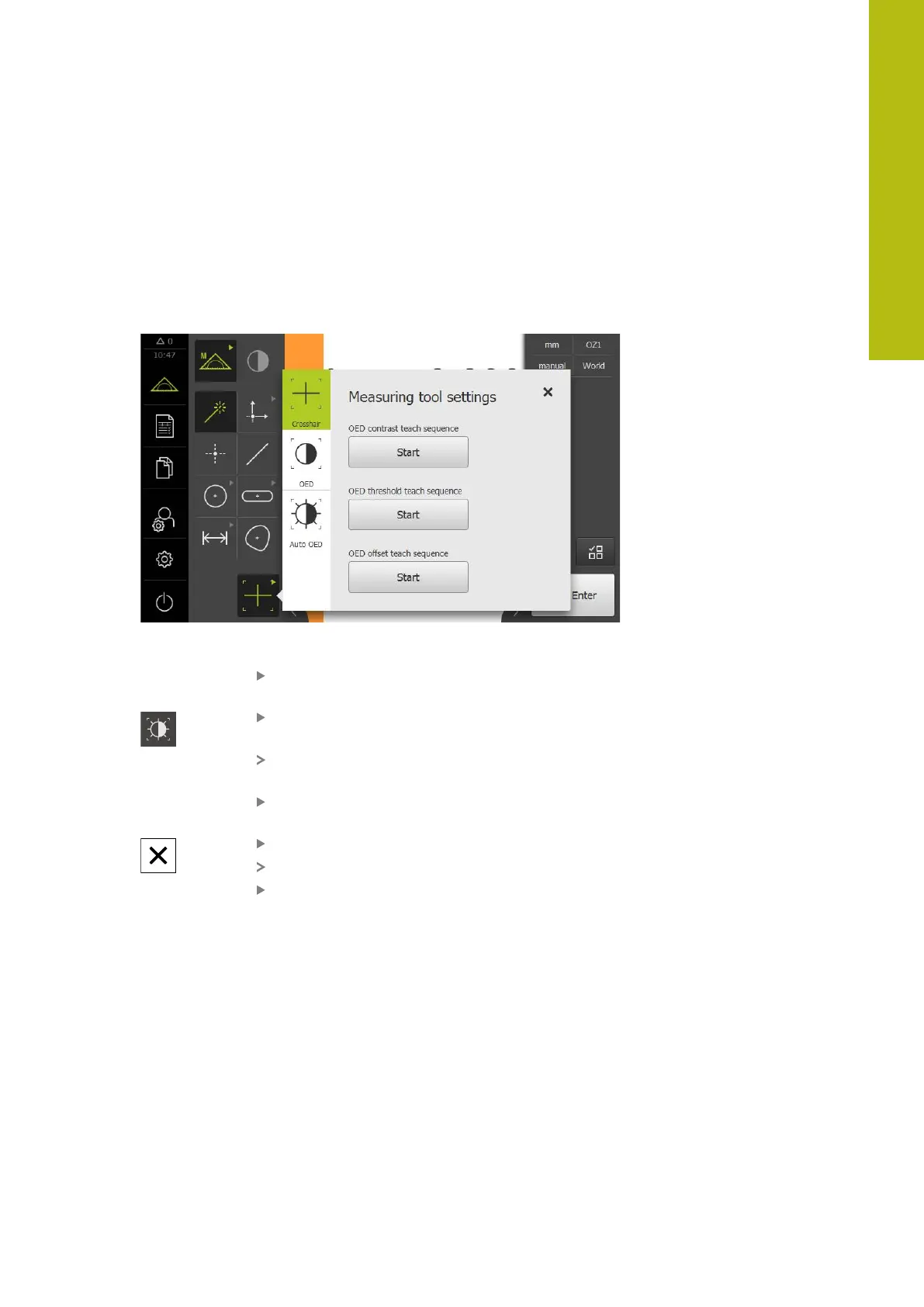

Figure 18: Measuring tool settings dialog for OED measuring tools
In the quick access menu, select the magnification that is set
on the measuring machine
In the tool palette, select any desired OED measuring tool,
e.g. Auto OED
The Measuring tool settings dialog shows the available
parameters
Determine the desired parameters during the teach
sequence
Tap Close to close the dialog
The parameters are saved for the selected magnification
Repeat this procedure for all available magnifications
6
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
77

HEIDENHAIN QUADRA-CHEK 2000 Specifications

General

Resolution	0.1 µm
Input Voltage	100-240 V AC
Display	Color touchscreen
Measurement Range	200 mm
Interfaces	USB, Ethernet
Power Supply	50 to 60 Hz
Weight	6 kg

Summary

Safety

General safety precautions

General safety rules and precautions for operating electrical equipment.

Intended use

Defines the product's intended use in commercial and industrial metrology applications.

Personnel qualification

Basic operation

QUADRA-CHEK 2000 – switch-on and switch-off

User login and logout

Commissioning

Steps for commissioning

Detailed breakdown of commissioning steps including basic settings and axis configuration.

Setup

Single steps for setup

Step-by-step guide for basic settings, sensor configuration, and application setup.

Quick Start

Displaying and editing the measurement results

Measuring

Acquiring measuring points

Conducting a measurement

Step-by-step guide for measurements, including object alignment and feature acquisition.

Measurement evaluation

Defining tolerances

Describes available tolerances and how to configure and activate them for features.

Programming

Settings

Sensors

Features

Service and maintenance

Updating the firmware

Procedures for importing new versions of the product's operating system.

What to do if ...

System or power failure

Actions to take in case of system or power failures, including firmware restoration.

Troubleshooting

Guidance on handling faults not covered in the troubleshooting table.
