15.4.3
Measuring point filter
Path:
Settings ► Features ► Measuring point filter
Information about the measuring point filter
The measuring point filter enables automatic filtering and prevents contamination
on the object of measurement or encoder optic from distorting the measurement
result.

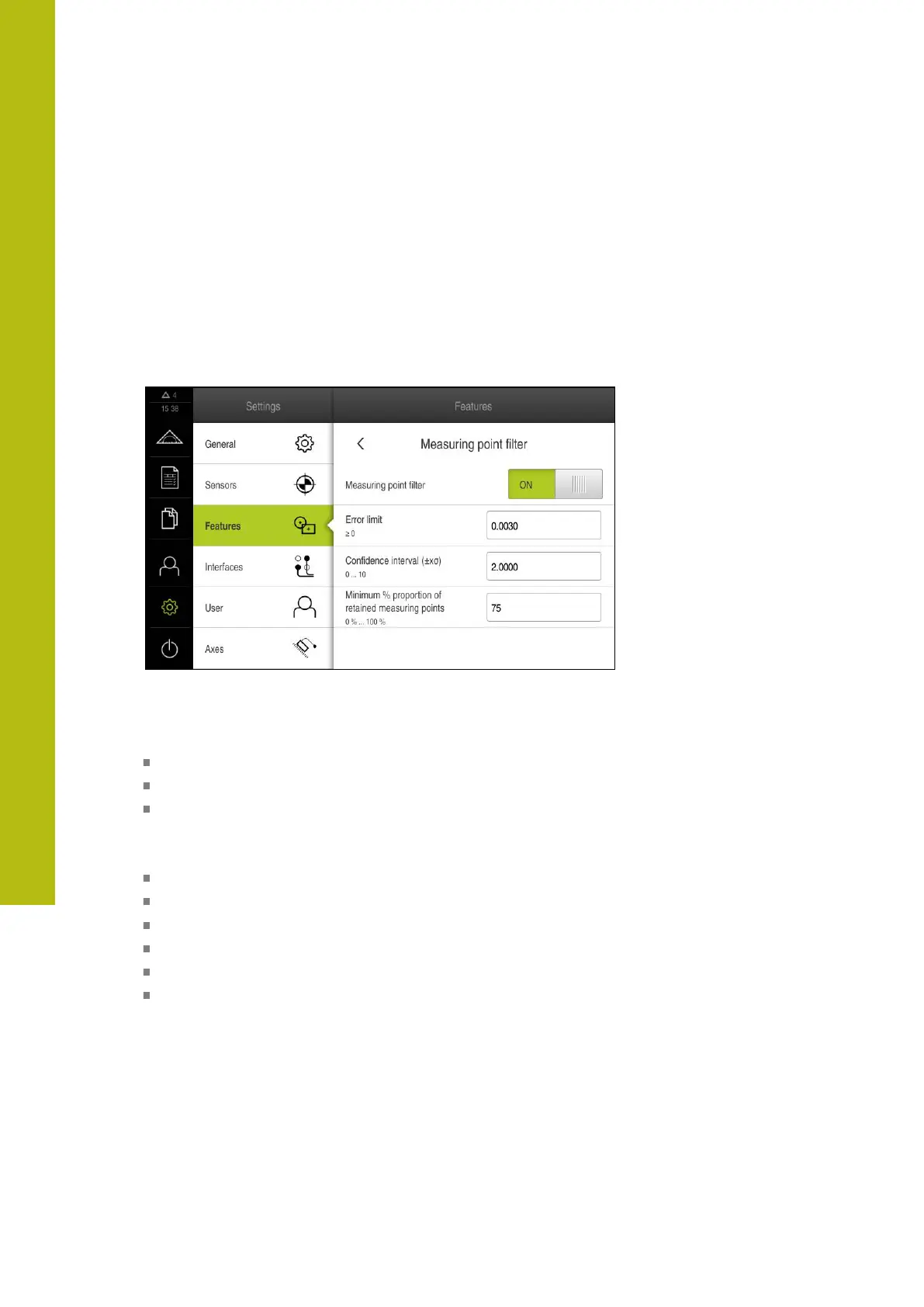

Figure 92: Settings of the measuring point filter
The measuring point filter identifies runaway values in the measuring point cloud
based on the following filter criteria:
Error limit
Confidence interval (±xσ)
Minimum % proportion of retained measuring points
Filtered-out measuring points are not included in the calculation of a feature.
The measuring point filter can be used for the following feature types:
Even
Circle
Arc
Ellipse
Slot
Rectangle
358
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
