Measurement evaluation | Measurement evaluation
Short description

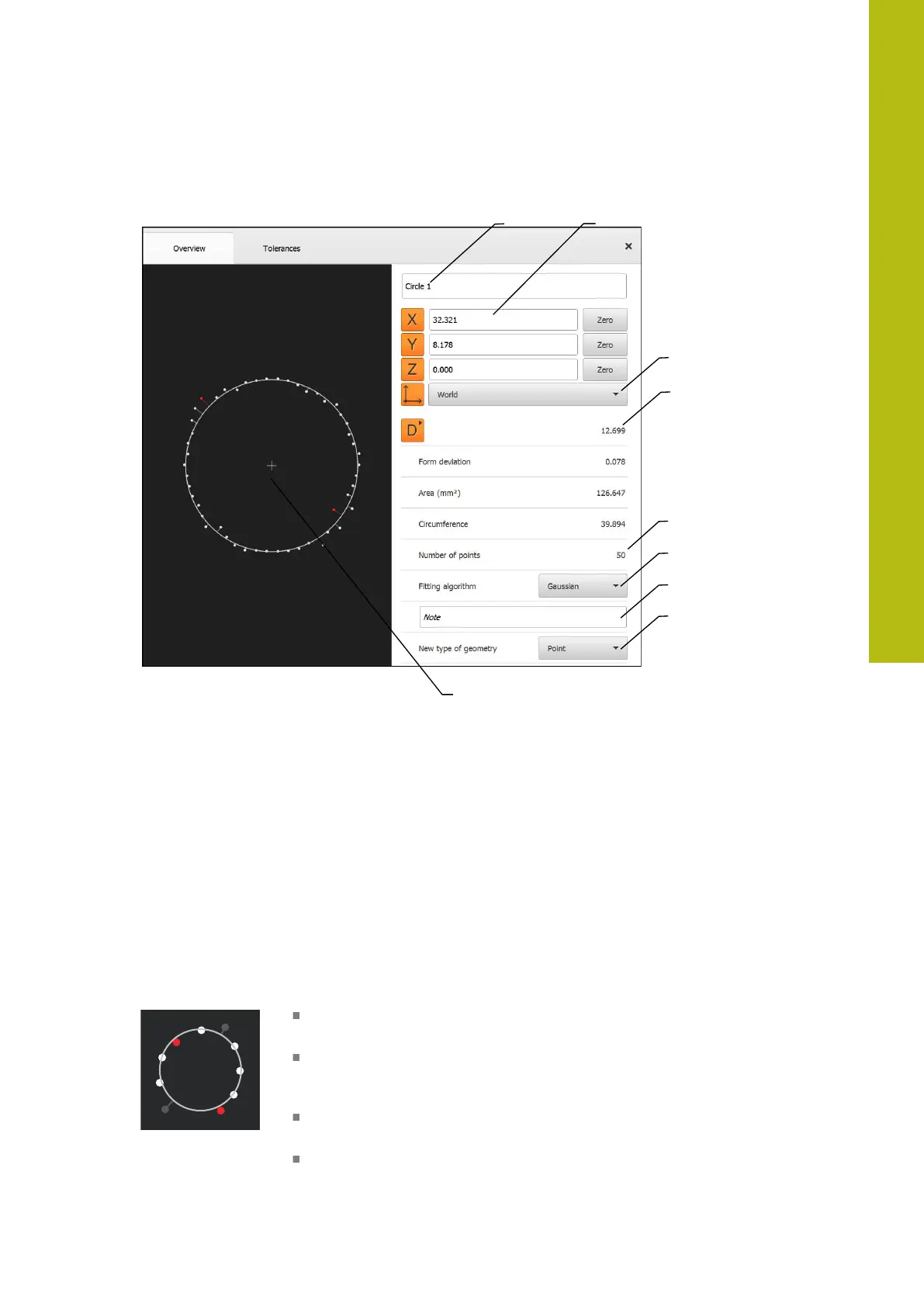

Figure 64: Overview tab in the Details dialog
1
Name of the feature
2
Axis positions of the center point
3
Coordinate system referenced by the coordinate values of the feature
4
Feature parameter, depending on the geometry type: For the circle geometry
type, it is possible to toggle between radius and diameter
5
Number of measuring points used for calculating the feature
6
Fitting algorithm used for calculating the feature; depends on the geometry and
the number of measuring points
7
Note text field; if annotations are active, its contents will be shown in the
features view
8
List of geometry types to which the feature can be converted
9
View of the measuring points and the shape
Depiction of the measuring points and the form
Figure 65: Measuring
points and form
The measuring points with the greatest deviations
within the fitting algorithm are displayed in red
The measuring points that are not used for the fitting
algorithm according to the measuring point filter
settings are displayed in gray
The measuring points used for the fitting algorithm are
displayed in white
The distances between the measuring points for the
calculated form are depicted as lines (symbolic repre-
sentation)
11
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
277
