Quick Start | Conducting a measurement
Aligning the measured object
Before you can evaluate the measuring points, you need to align the measured
object. During this process, the coordinate system of the measured object
(workpiece coordinate system) is determined, which is specified in the technical
drawing.
This makes it possible to compare the measured values with the data in the
technical drawing and assess them.
Further information: "2-D demo part", Page 413

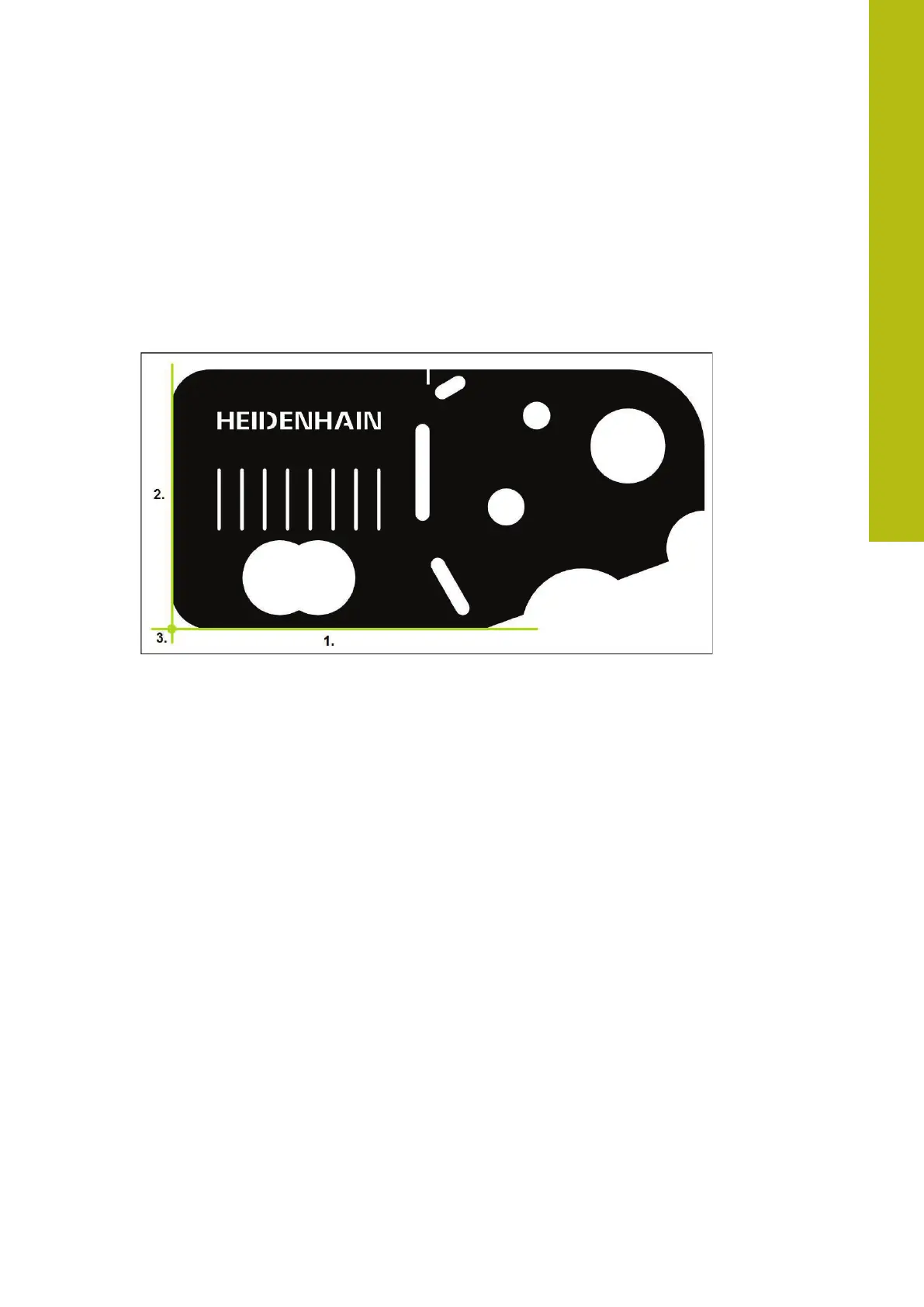

Figure 41: Example of aligning a 2-D demo part
Measured objects are usually aligned in the following steps:
1 Measuring the alignment
2 Measuring a straight line
3 Constructing the zero point
9
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
191
