Mounting | Overview
4
4.1 Overview
This chapter describes the mounting of the product. It contains instructions about
how to correctly mount the product on stands or holders.
The following steps must be performed only by qualified personnel.
Further information: "Personnel qualification", Page 29
4.2 Assembly of the product
General mounting information
The mount for the mounting variants is provided on the rear panel. The mounting
hole pattern corresponds to a grid of 50 mm x 50 mm.

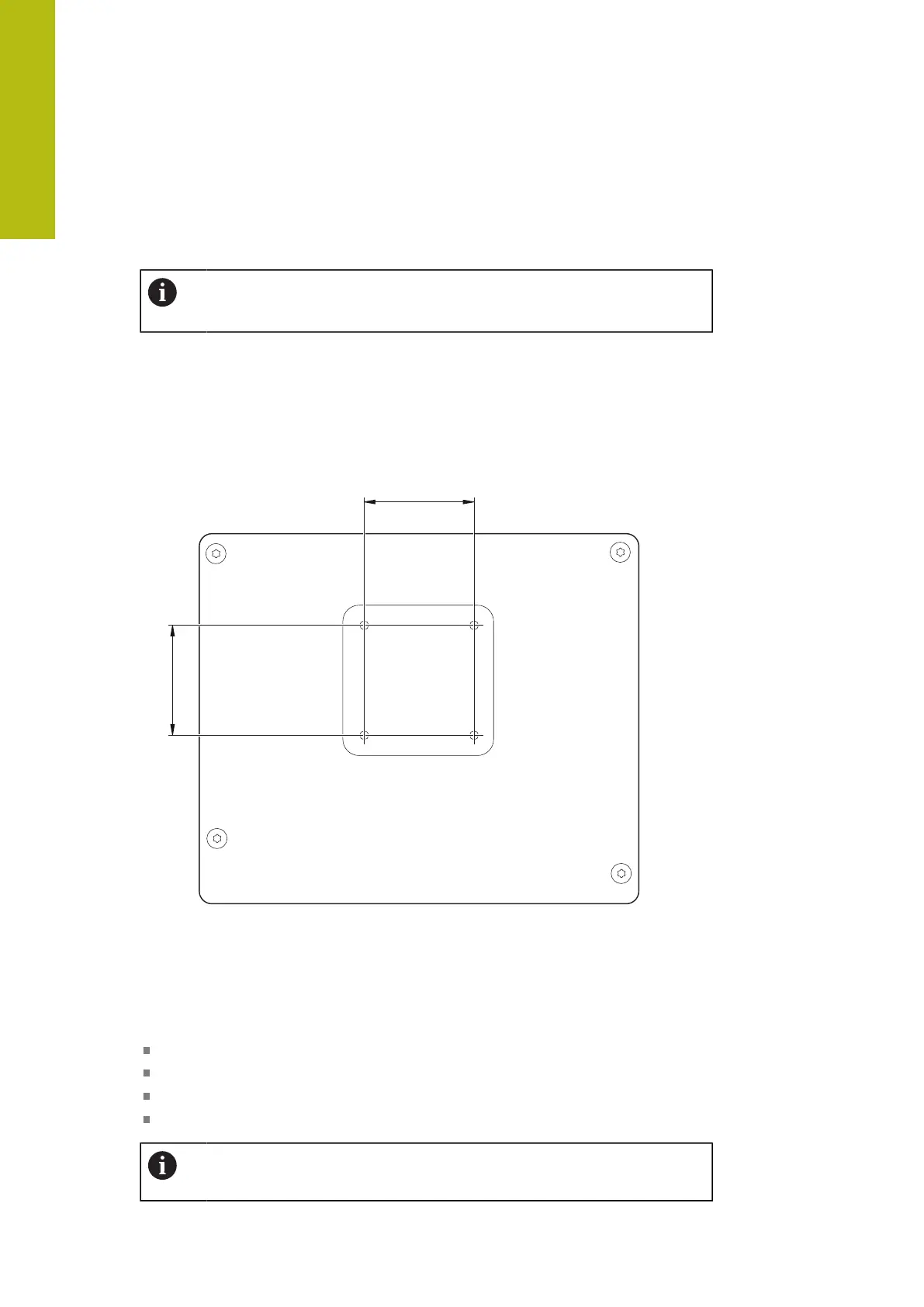

Figure 1: Dimensions of rear panel of the product
The material for attachment of the mounting variants on the device is included in
delivery.
You will also need the following:
Torx T20 screwdriver
Torx T25 screwdriver
Allen key, size 2.5 (Duo-Pos stand)
Material for mounting on supporting surface
The unit must be mounted to a stand or a holder to ensure the correct
and intended use of the product.
40
HEIDENHAIN | QUADRA-CHEK 2000 | Operating Instructions | 07/2019
